Hardware description
A
A.1 Motherboard
A.1.1 Layout of the motherboard

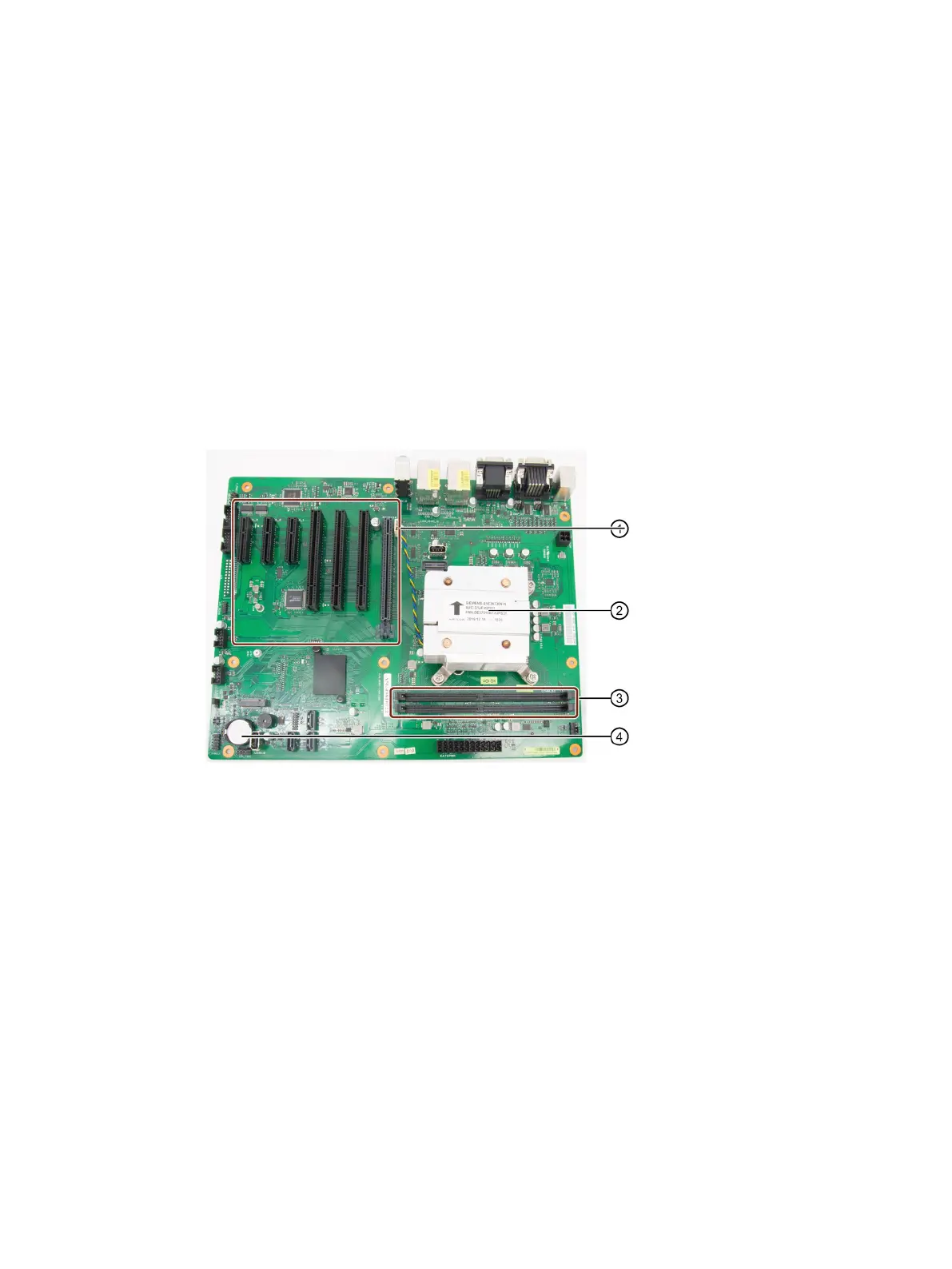

The motherboard consists of these main components: processor and chipset, six slots for PCIe
modules, two slots for memory modules, internal and external interfaces, Flash BIOS and the
backup battery.
①
Slots for PCIe/PCI modules
②
CPU Fan and processor
③
Slots for memory modules
④
Backup battery
Technical features of the motherboard
Technical features of the motherboard can be found under "Technical specifications of the
motherboard (Page 73)".
