Product description
1.4 External design of the device
SIMATIC IPC347G
Operating Instructions, 10/2020, A5E50059993-AA
11
1.4 External design of the device

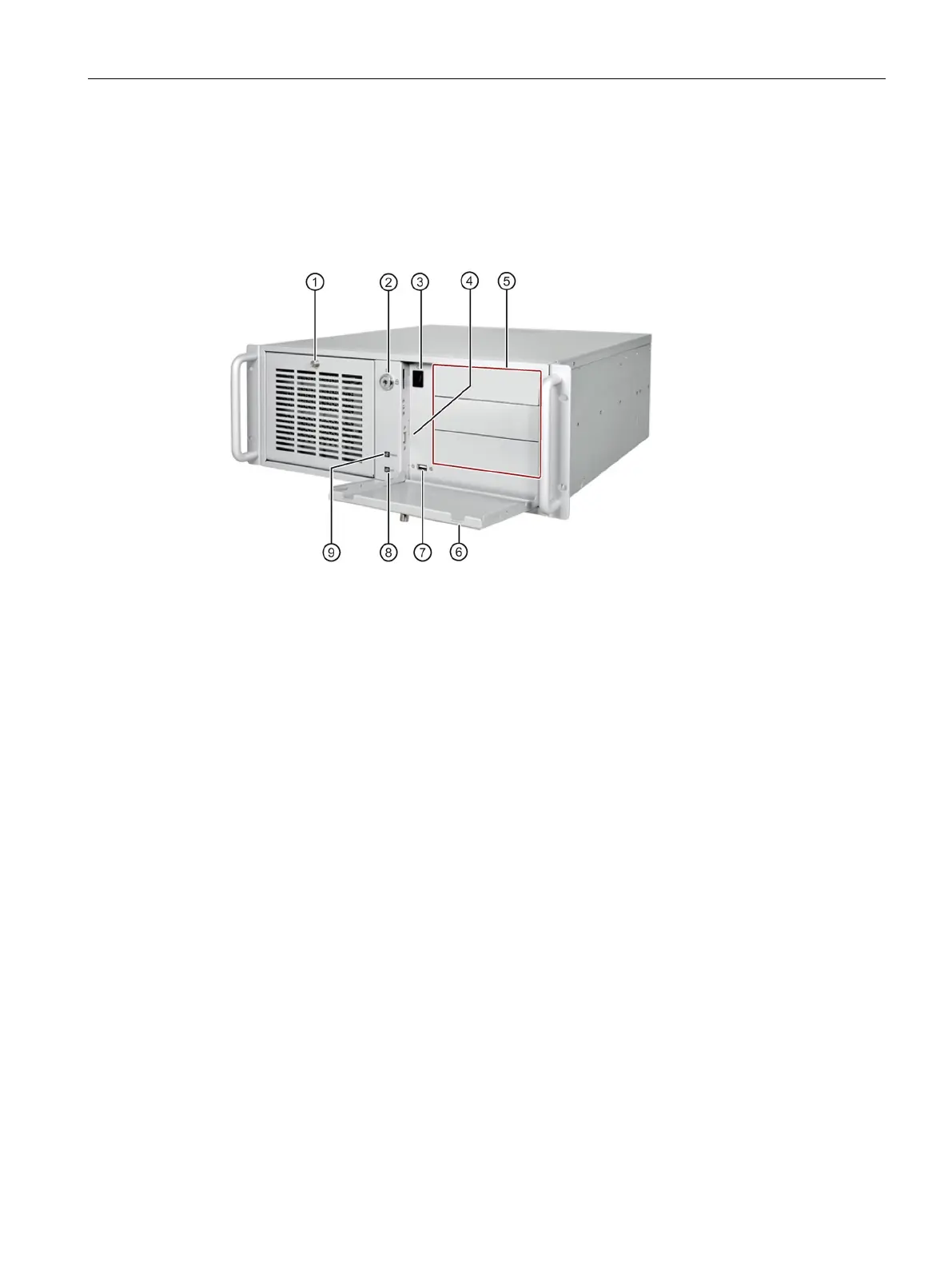

1.4.1 Front panel
①
Front left door
⑥
Front right door
②
Lock
⑦
Connections for USB 2.0 devices,
compatible with USB 1.1
③
On/off button
⑧
HDD status display
④
Connection for USB 2.0 devices,
compatible with USB 1.1
⑨
Power status display
⑤
Drive bays 3 x 5.25"
