Expanding and assigning parameters to the device
6.4 Drives (HDD/SSD)
SIMATIC IPC347G
Operating Instructions, 10/2020, A5E50059993-AA
51
You can install the HDD or SSD in the drive cage at various mounting locations.
You can find information on the mounting locations under:
• Drive cage (Page 13)
If HDD/SSDs are installed in one of the mounting locations, these may be exposed to the
following vibration stresses during operation:
• For HDD:
– 10 to 58 Hz: 0.015 mm
– 58 to 200 Hz: 1.96 m/s
2
• For SSD:
– 10 to 58 Hz: 0.0375 mm
– 58 to 200 Hz: 4.9 m/s
2
Vibrations above 500 Hz are not permitted.
6.4.2 Removing the drive module
Requirement
• The device is fully disconnected from the line voltage, see Switching off the device
(Page 40).
• PH2 screwdriver
Procedure

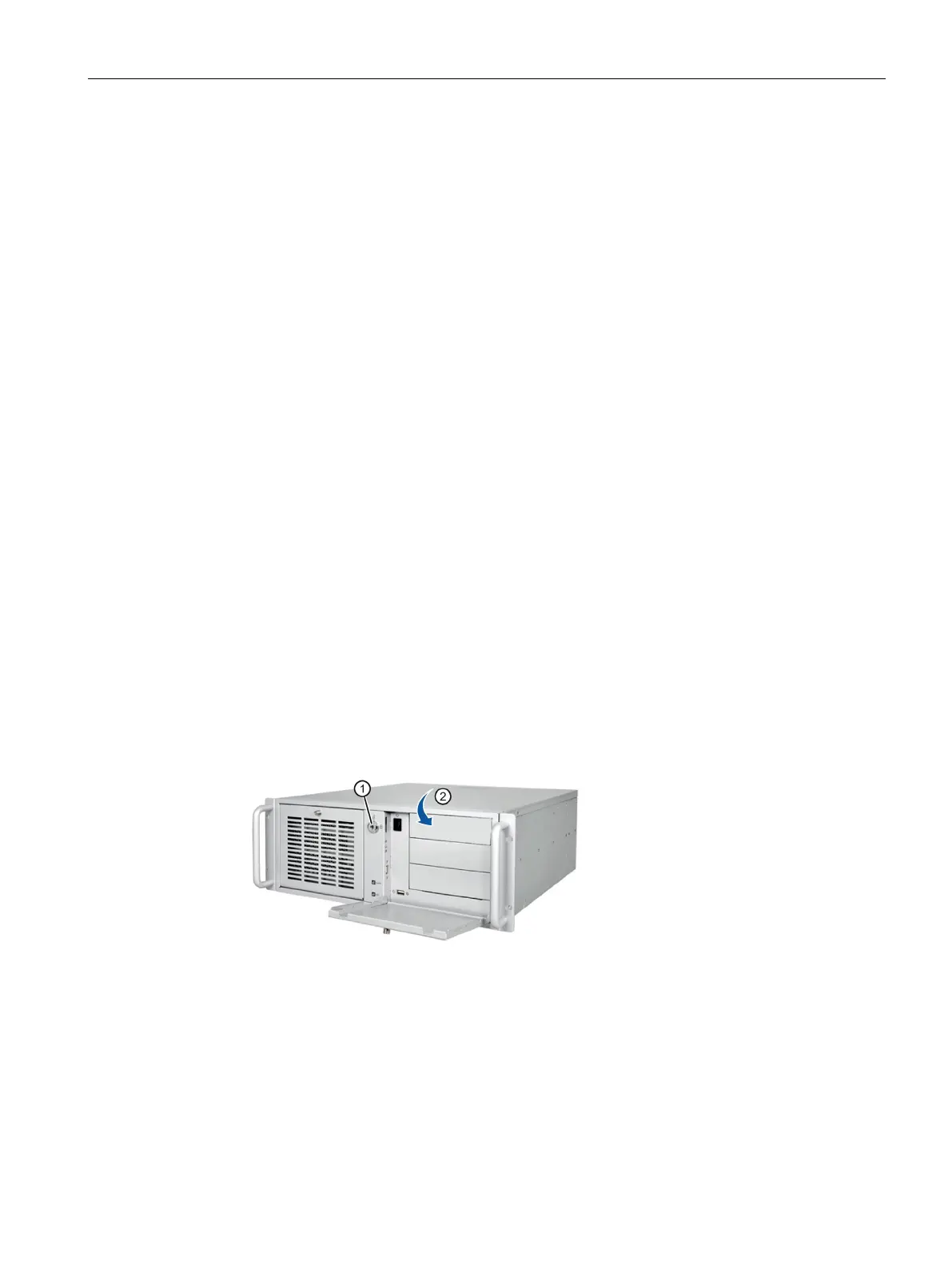

1. Unlock the front door and open the right-front door.
2. Remove the top cover.
3. Disconnect the power supply and data cables.
