Dimension drawings
9.1 Dimension drawing of the expansion cards
SIMATIC IPC347G
Operating Instructions, 10/2020, A5E50059993-AA
79

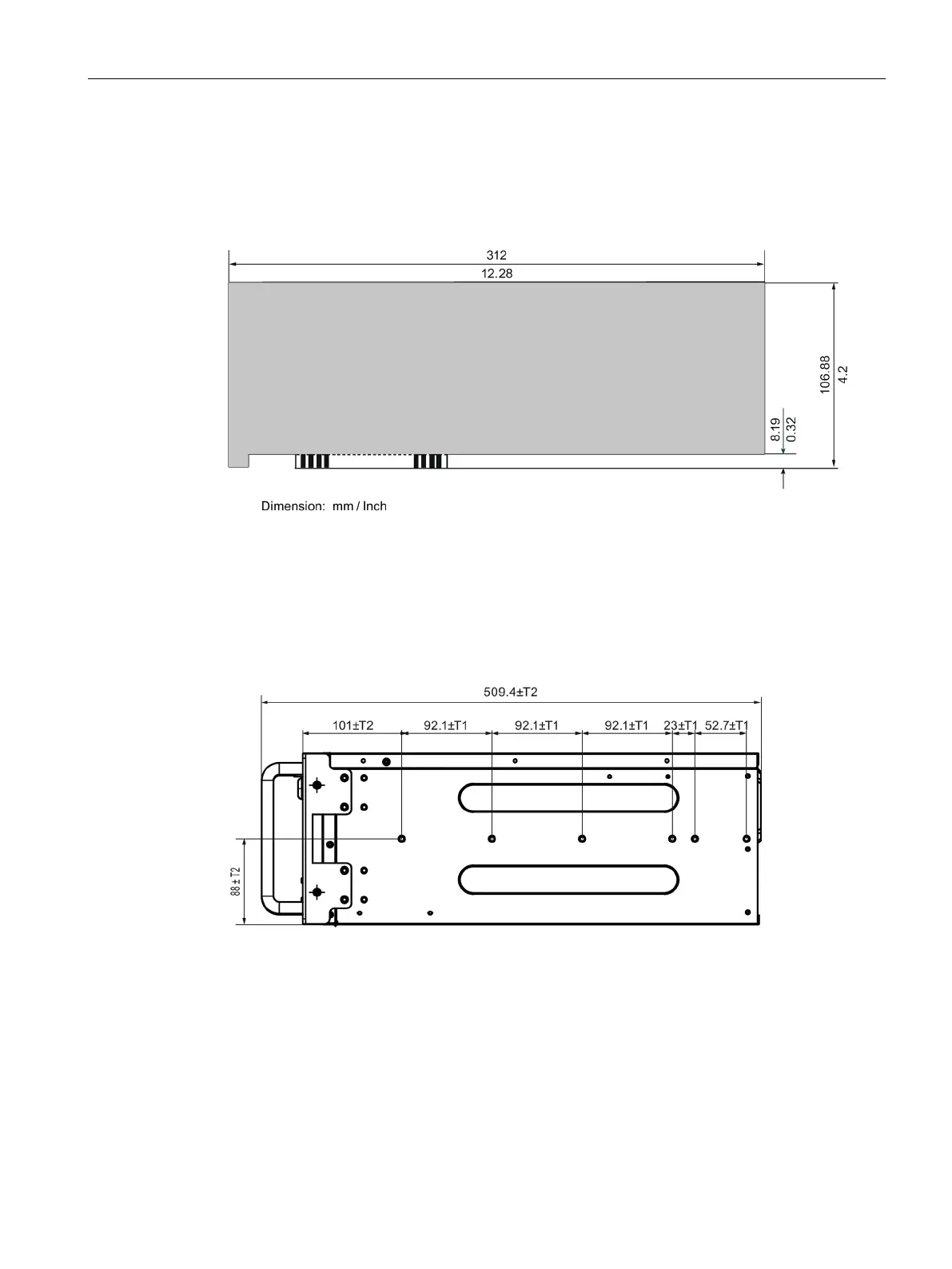

9.1 Dimension drawing of the expansion cards
Long PCI card, PCIe card
9.2 Dimension drawing of the telescope rails
Dimensions for bore holes for telescopic rails
T1=Tolerances of ± (0.1mm)/(0.004")
T2=Tolerances of ± (0.3mm)/(0.01")
