Hardware description
A.2 External interfaces
SIMATIC IPC347G
Operating Instructions, 10/2020, A5E50059993-AA
107

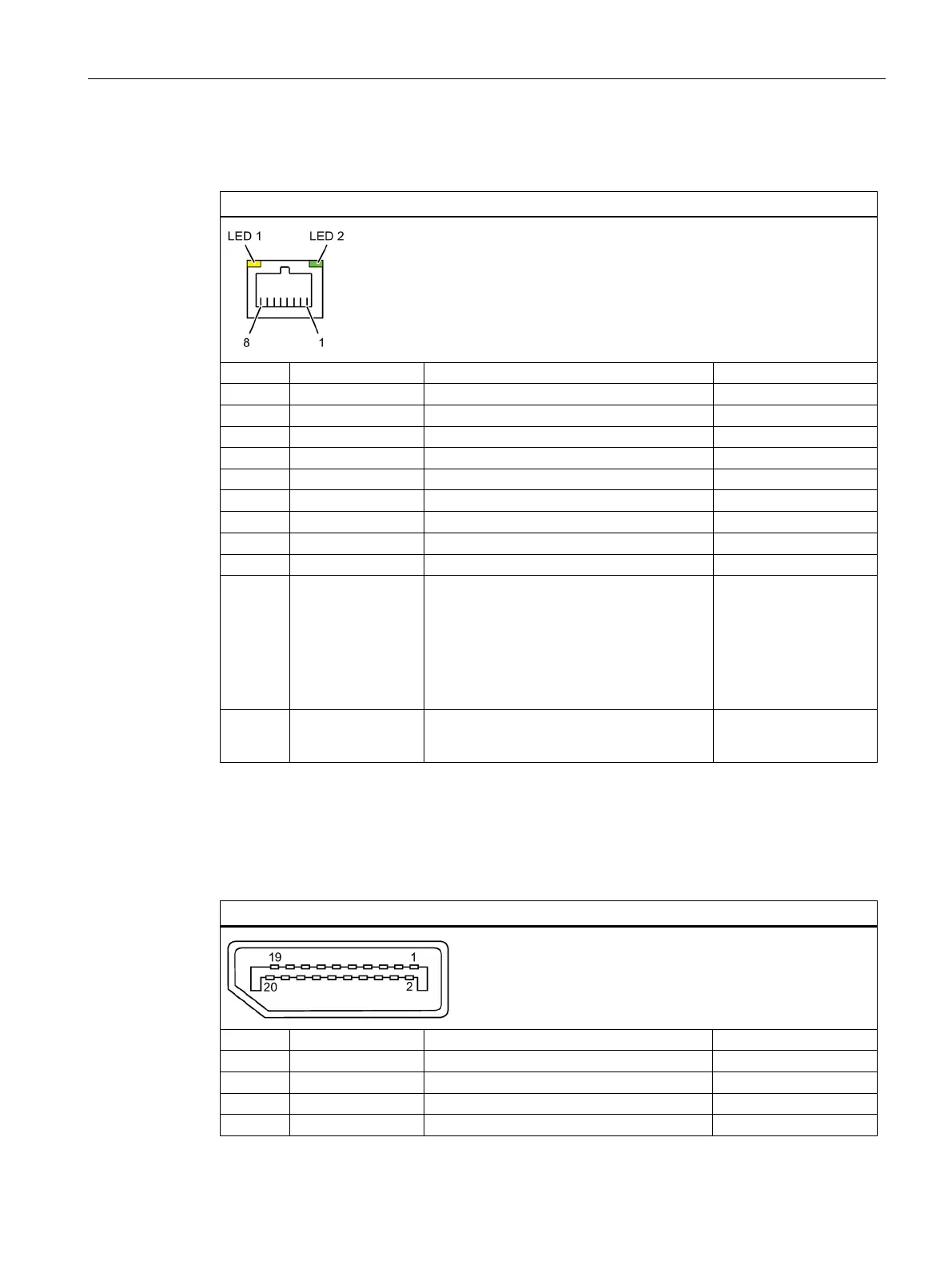

A.2.4 Ethernet
Ethernet RJ45 interface
Pin no.
Short description
Meaning
Input / output
1
BI_DA+
Bi-directional data A+
Input/output
2
BI_DA-
Bi-directional data A-
Input/output
3
BI_DB+
Bi-directional data B+
Input/output
4
BI_DC+
Bi-directional data C+
Input/output
5
BI_DC-
Bi-directional data C-
Input/output
6
BI_DB-
Bi-directional data B-
Input/output
7
BI_DD+
Bi-directional data D+
Input/output
8
BI_DD-
Bi-directional data D-
Input/output
S
Shield
–
LED 1
OFF:
• No cable connected
• Physical link disconnects
• Interface disabled
Yellow: Active connected
Yellow flashing: Data transfer active
–
LED 2
Off: 10 Mbps
Orange: 100 Mbps
Green: 1000 Mbps
–
The Ethernet interface supports MDXI (auto crossover) for all transmission rates.
A.2.5 DisplayPort
DisplayPort interface
Pin no.
Abbreviation
Meaning
Input/output
1
ML_Lane3-
DP data 3-
Input
2
GND
Ground
-
3
ML_Lane3+
DP data 3+
Input
4
ML_Lane2-
DP data 2-
Input
