Product description
1.4 External design of the device
SIMATIC IPC347G
14 Operating Instructions, 10/2020, A5E50059993-AA
1.4.4 Interfaces and connections
1.4.4.1 Interfaces
Note
You can find the detailed information on interfaces under "External interfaces (Page 104)".

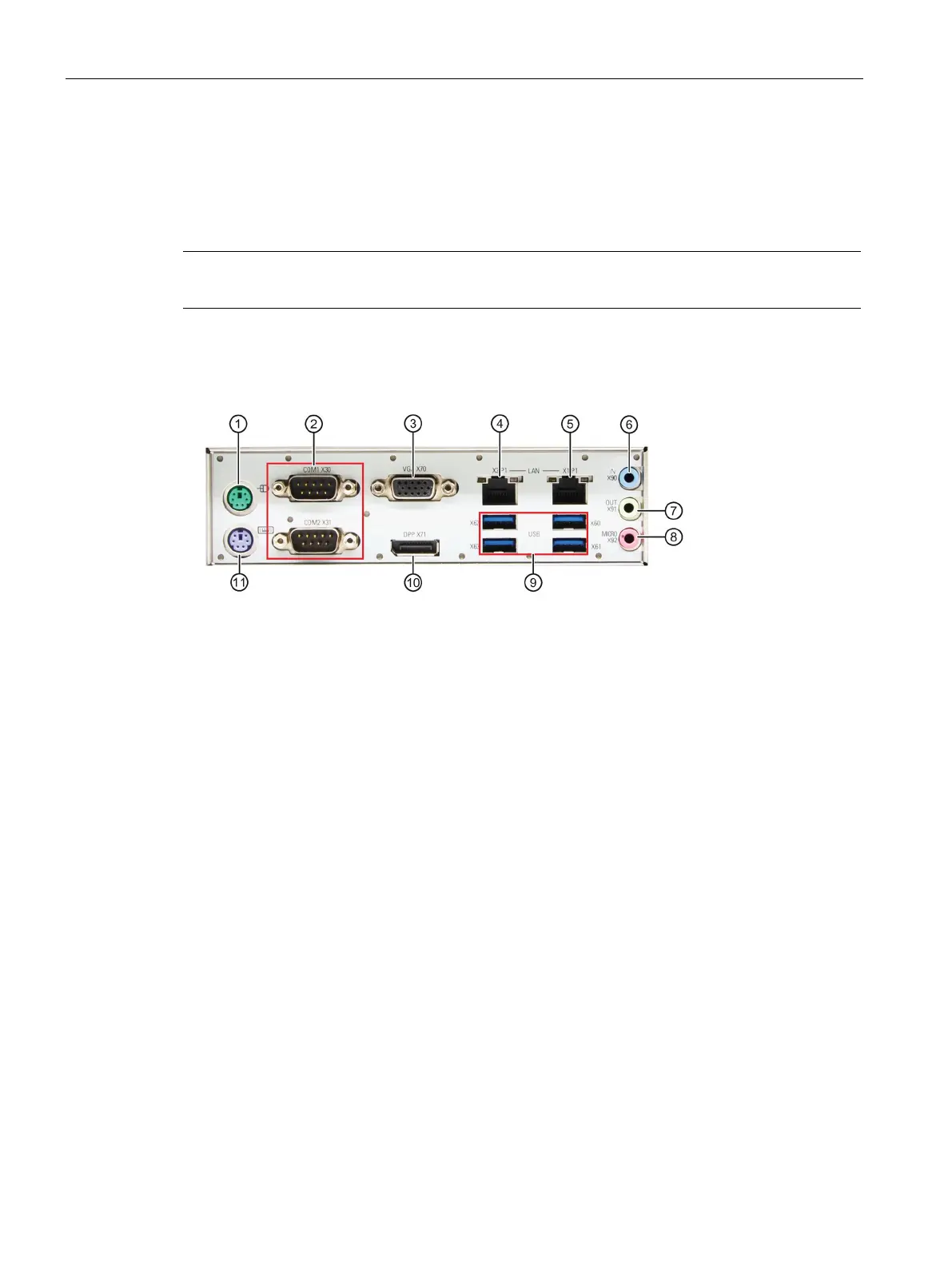

Interfaces at rear of device
①
Mouse port
Connection for a PS/2 mouse
②
COM1 X30
COM2 X31
Serial interface, 9-pin RS232 /RS422 /RS485
③
VGA X70
Connection for monitor with Video Graphics Adapter (VGA) interface
④
LAN2
1
X2P1
RJ-45 Ethernet Port for 10/100/1000Mbps LAN, the MAC-Address is
listed in Component label.
⑤
LAN1
1
X1P1
RJ‐45 Ethernet Port for 10/100/1000Mbps LAN, the MAC-Address is
listed in Component label.
⑥
Line in (blue)
Connection for analog audio source, 3.5 mm phono jack
⑦
Line out (green)
Connection for active speakers or headset, 3.5 mm phono jack
⑧
Microphone (pink)
Connection for microphone, 3.5 mm phono jack
⑨
USB 3.0
2
Connections for USB devices, compatible with USB 2.0/1.1
⑩
DP port X71
Connection of a digital monitor
3
⑪
Keyboard port
Connection for a PS/2 keyboard
1
See the pin assignment below.
2
Each of the USB port can be disabled/enabled separately by disabling/enabling its associated
USB port in BIOS. On how to disable the USB port, see USB configuration in
Advanced menu
(Page 86).
3
Use the DP cable of which the length is less than 15 meters, and the DP cable must comply
with VESA DisplayPort standard.
