1.4 External design of the device
SIMATIC IPC347G
Operating Instructions, 10/2020, A5E50059993-AA
13
1.4.3 Drive cage
The drive cage is located behind the front door.
In drive cage, drives are permanently installed inside and cannot be accessed externally.
The drives are very well protected against vibration and oscillation ("vibration-damped drive
cage") in this drive cage.

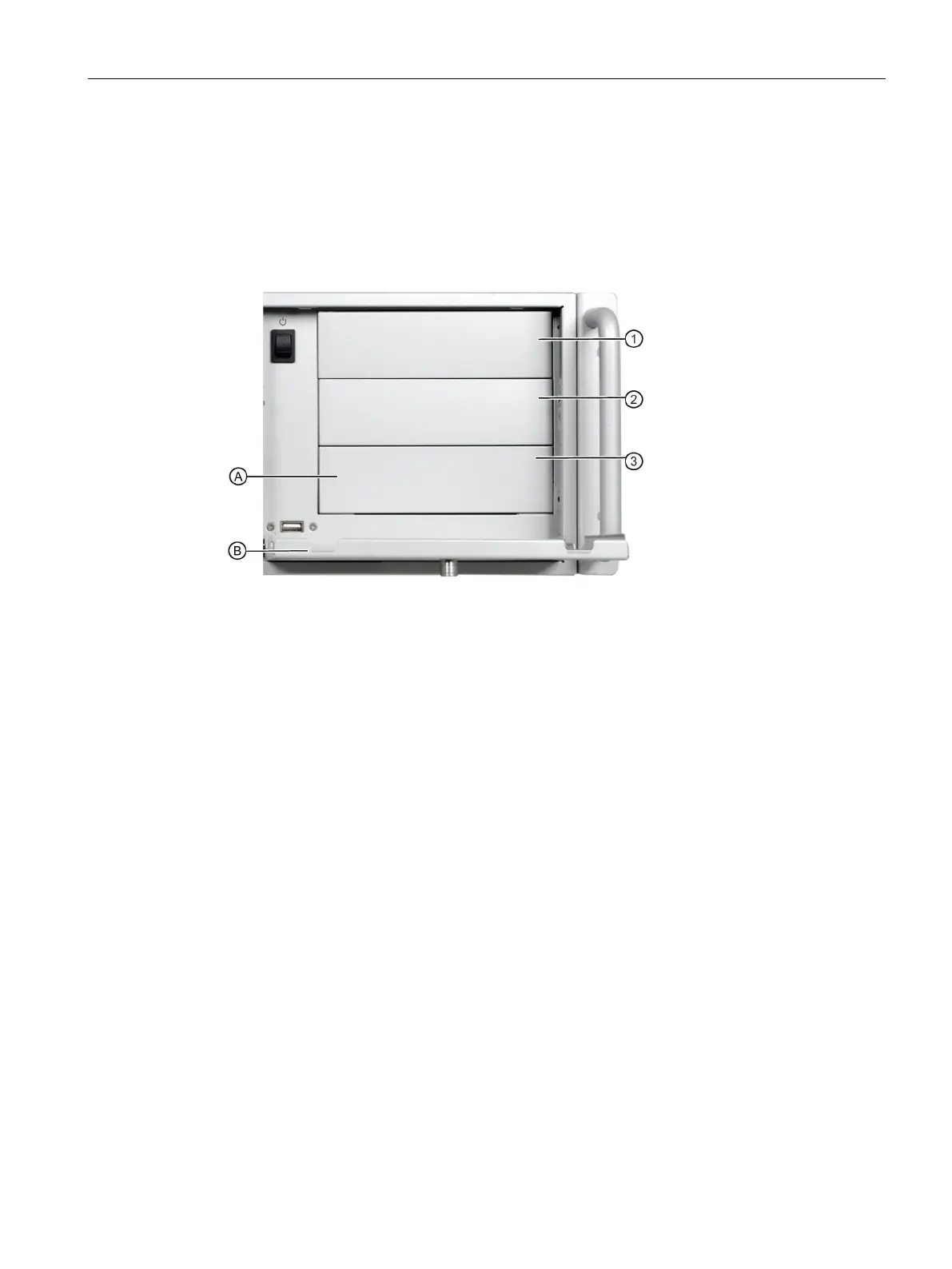

Drive bays
①
Mounting location 1
Mounting location for 3.5" or 2.5" drive in a shock-
proof/vibration-proof fixture or for 5.25" drive or components
②
Mounting location 2
Mounting location for 3.5" or 2.5" drive in a shock-
proof/vibration-proof fixture or for 5.25" drive or components
③
Mounting location 3
Mounting location for 3.5" or 2.5" drive in a shock-
proof/vibration-proof fixture or for 5.25" drive or components
Components
(A)
Cover
(B)
Front right door
Additional information
Technical notes and information on the rated conditions are available in the section
Installation options for drive (Page 50).
