Expanding and assigning parameters to the device
6.4 Drives (HDD/SSD)
SIMATIC IPC347G
52 Operating Instructions, 10/2020, A5E50059993-AA

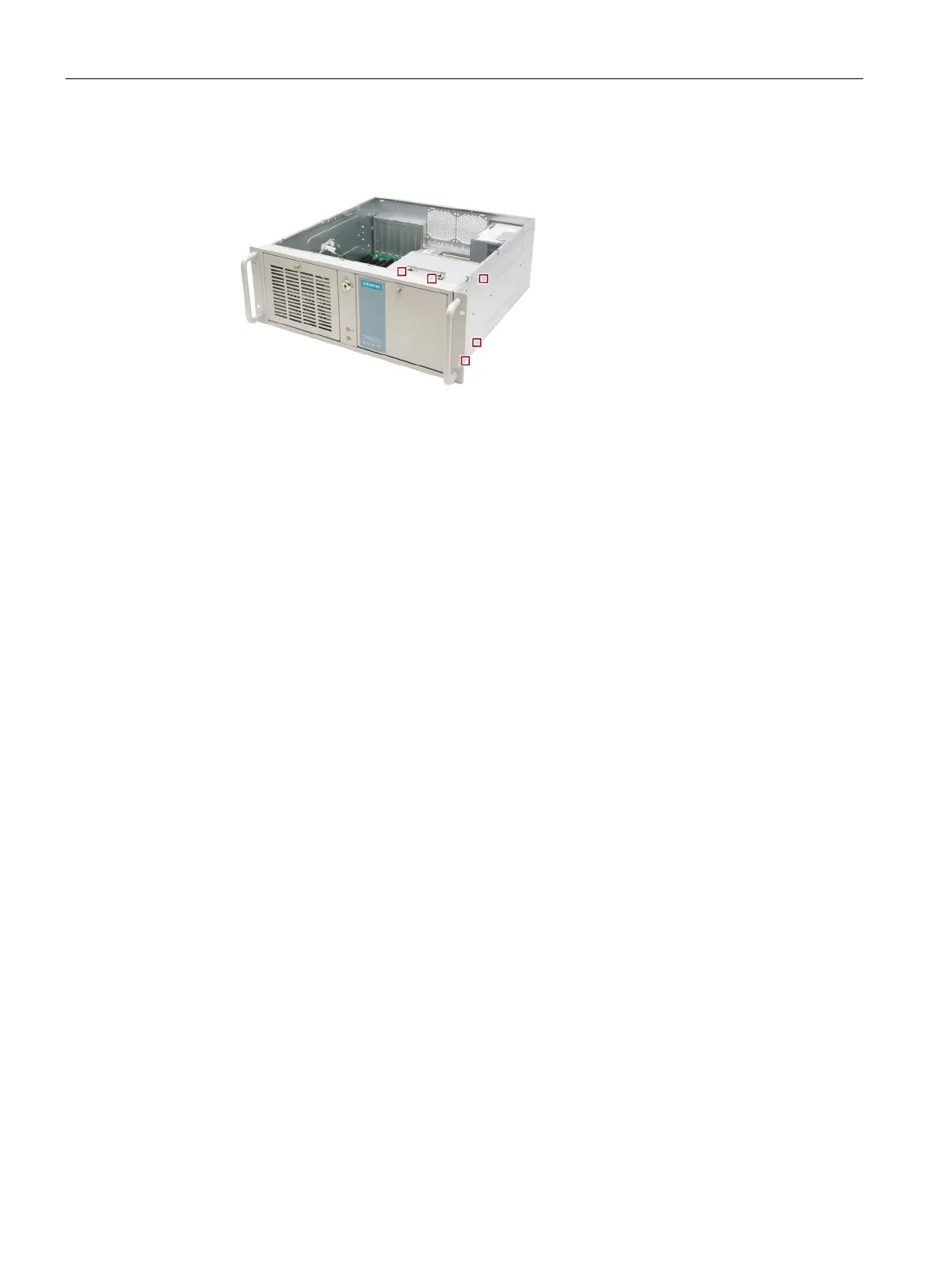

4. Remove the highlighted five screws.
5. Lift the drive cage completely out of the device.
6.4.3 Installing the drive (HDD/SSD)
You can find information on the correct mounting location for 5.25" drives in a drive cage
under "Installation options for drive (Page 50)".
Requirement
• An original spare part, i.e. an "Assembly Kit HDD/SDD for 5.25" tray" approved for this
device.
• The device is fully disconnected from the line voltage, see "Switching off the device
(Page 40)".
• The device is open, see important information in "Open the device (Page 44)".
• The drive bay is taken out of the chassis.
• PH2 screwdriver
