Siemens SIMATIC IPC347G User Manual

Hardware description
A.1 Motherboard
SIMATIC IPC347G
Operating Instructions, 10/2020, A5E50059993-AA
101

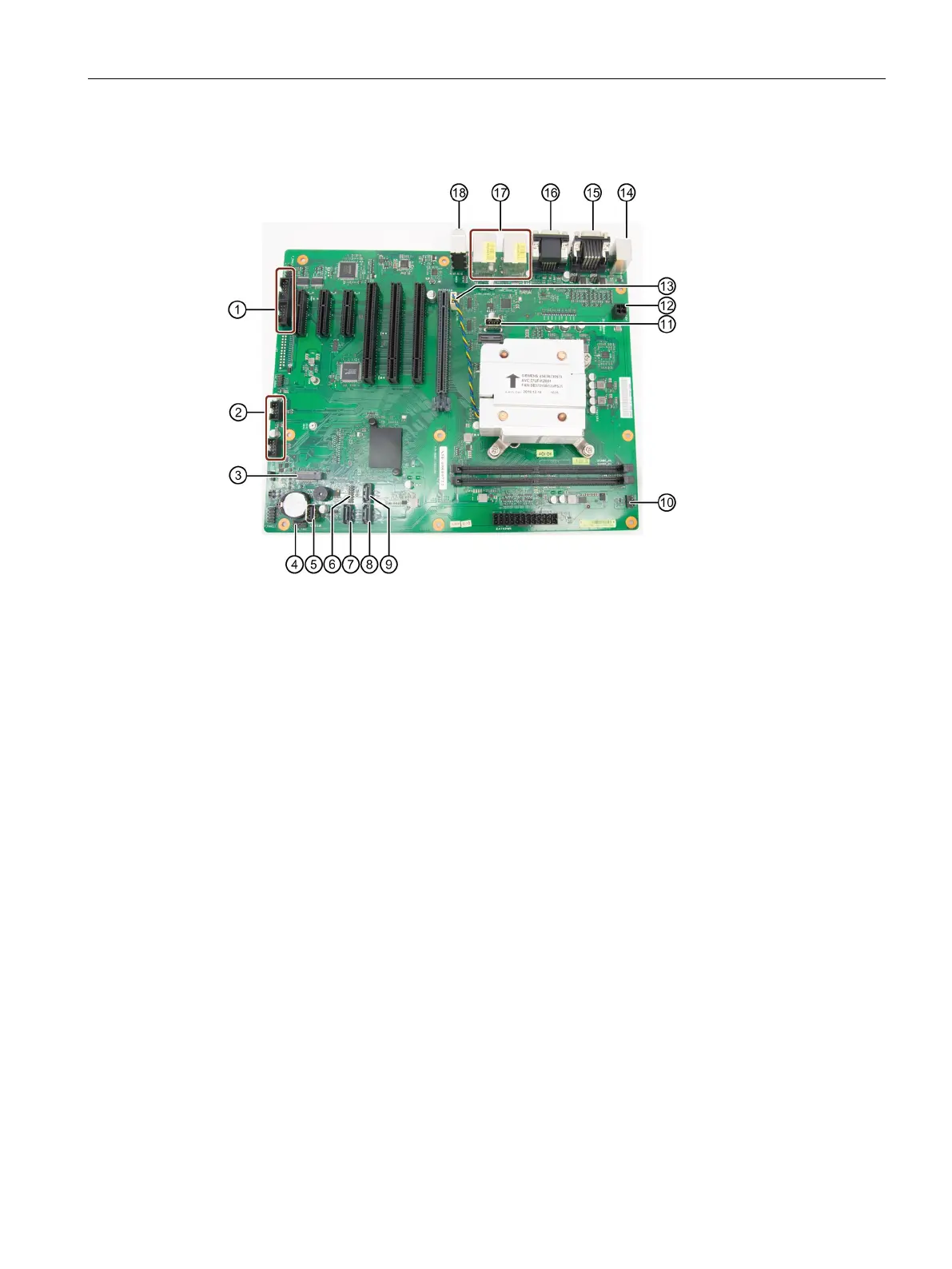

A.1.2 Position of the interfaces on the motherboard
①
COM4 pin header
COM3 header
⑩
Chassis Fan 1 pin header
②
USB 2.0 pin header
⑪
USB 2.0 vertical port
③
M.2 2242/2280 B Key slot
⑫
CPU Power
④
Chassis Fan 2 pin header
⑬
CPU Fan pin header
⑤
USB 2.0 vertical port
⑭
PS2
⑥
TPM pin header
⑮
COM1
COM2
⑦
SATA 3 (Port 3)
⑯
VGA
DPP
⑧
SATA 2 (Port 2)
⑰
LAN
USB 3.0
⑨
SATA 1 (Port 1)
⑱
Microphone
Line OUT
Line IN
