Hardware description
A.3 Internal Connector
SIMATIC IPC347G
Operating Instructions, 10/2020, A5E50059993-AA
109

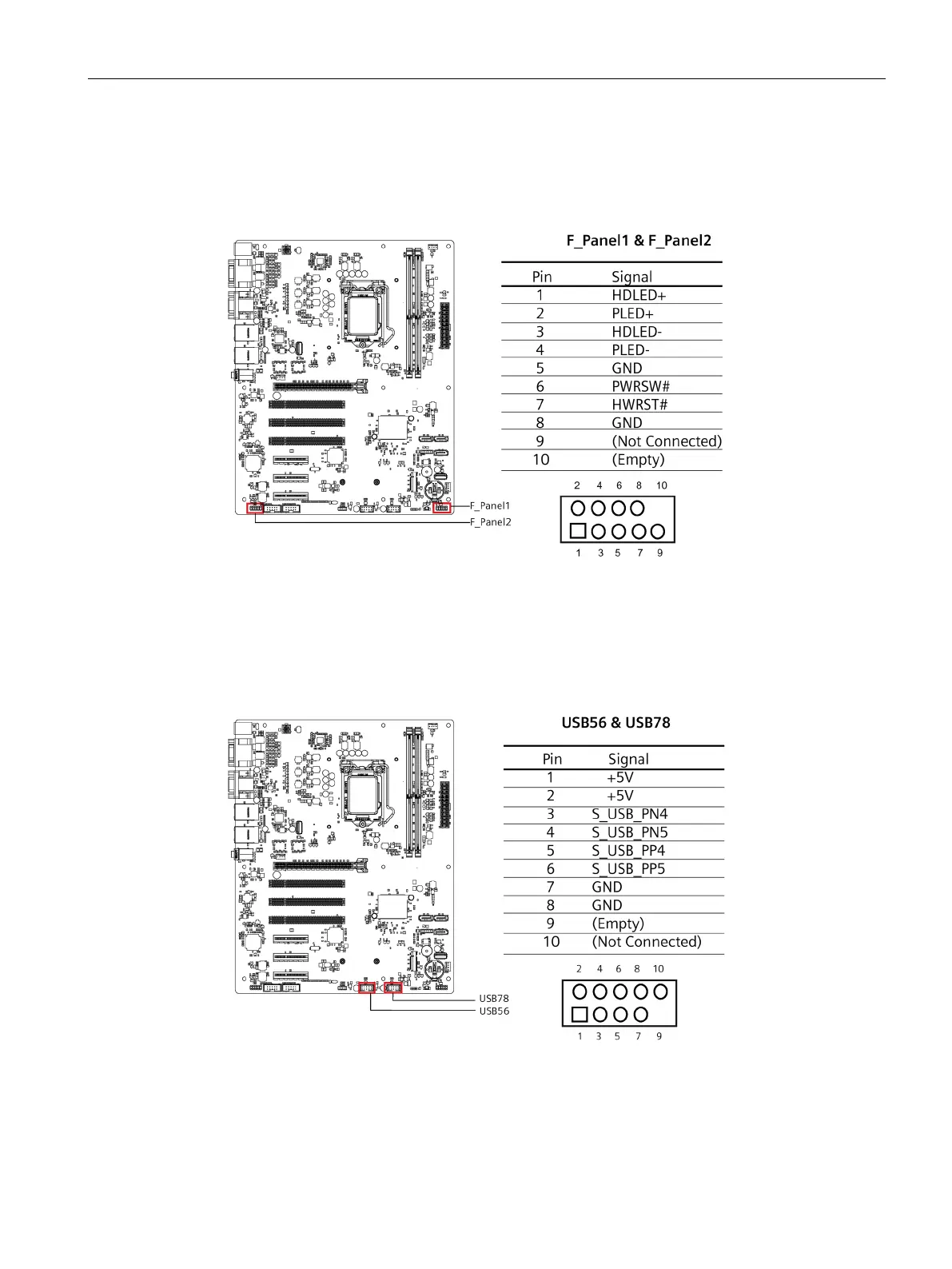

A.3.2 Front panel connector (F_Panel1 & F_Panel2)
The front panel connector is used to connect cable to Chassis Front Panel, and provide HDD
LED, Power LED, Power Button and Reset Button functions.
A.3.3 Internal USB 2.0 connector (USB56 & USB78)
Internal USB 2.0 Connectors provides two USB 2.0 Ports which require appropriate cable to
support.
