Hardware description
A.3 Internal Connector
SIMATIC IPC347G
Operating Instructions, 10/2020, A5E50059993-AA
113
A.3.11 DDR4 Memory sockets (DIMM_A1 & DIMM_B1)
The motherboard provides two memory sockets, which support two pieces of 288‐pin DDR4
Memory Modules. Refer to the chapter Installing memory module (Page 49) for
detailed installation instruction.

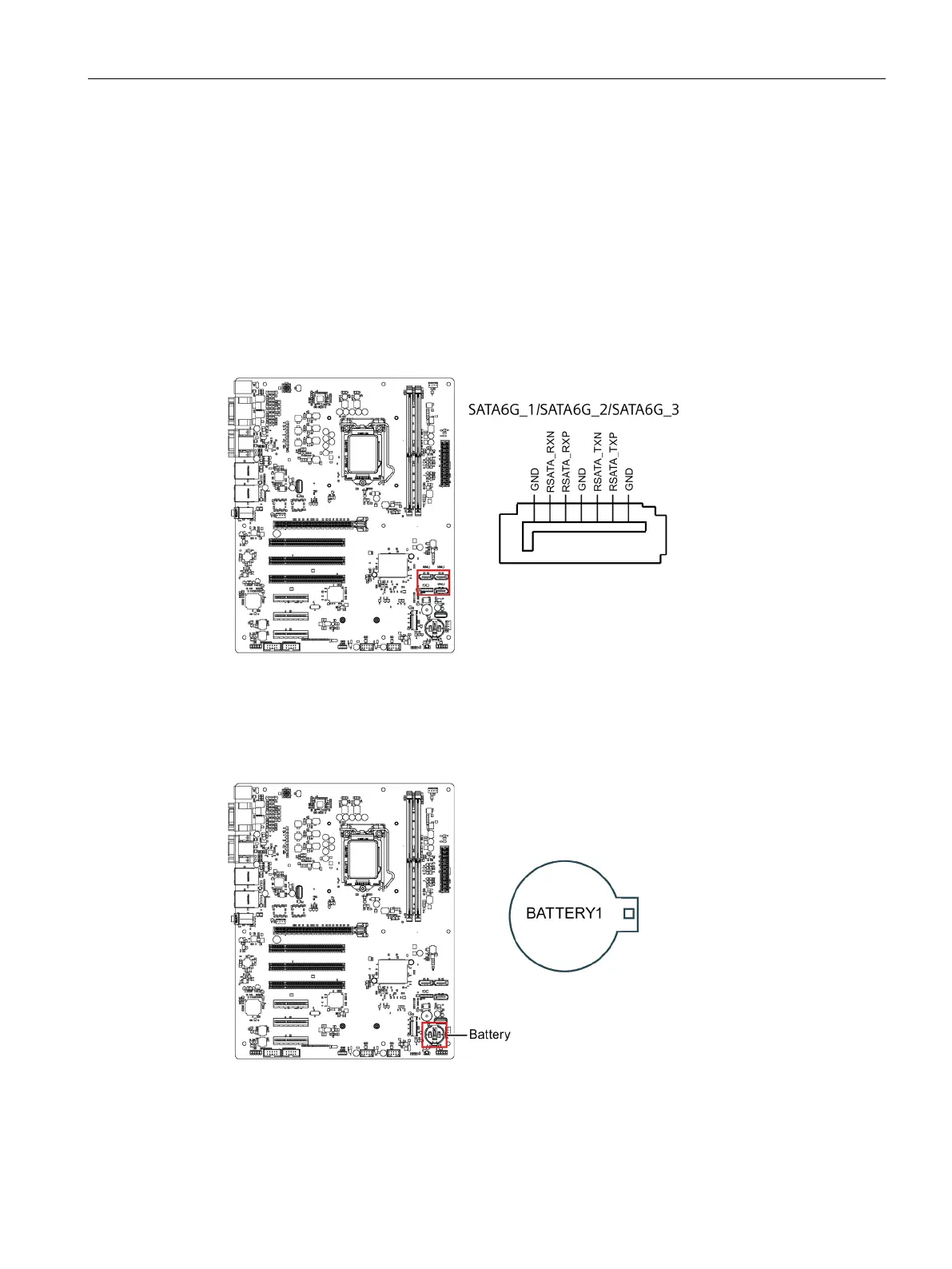

A.3.12 SATA 6.0 Gbps Port Connectors (SATA6G_1/ SATA6G_2/ SATA6G_3)
The motherboard provides four pieces of 7‐pin SATA Port Connectors, which support SATA
devices through the connection of SATA Cable.
A.3.13 Battery socket
The Battery Socket on the motherboard is for CR2032 Battery used for COMS data retention.
