Hardware description
A.3 Internal Connector
SIMATIC IPC347G
112 Operating Instructions, 10/2020, A5E50059993-AA

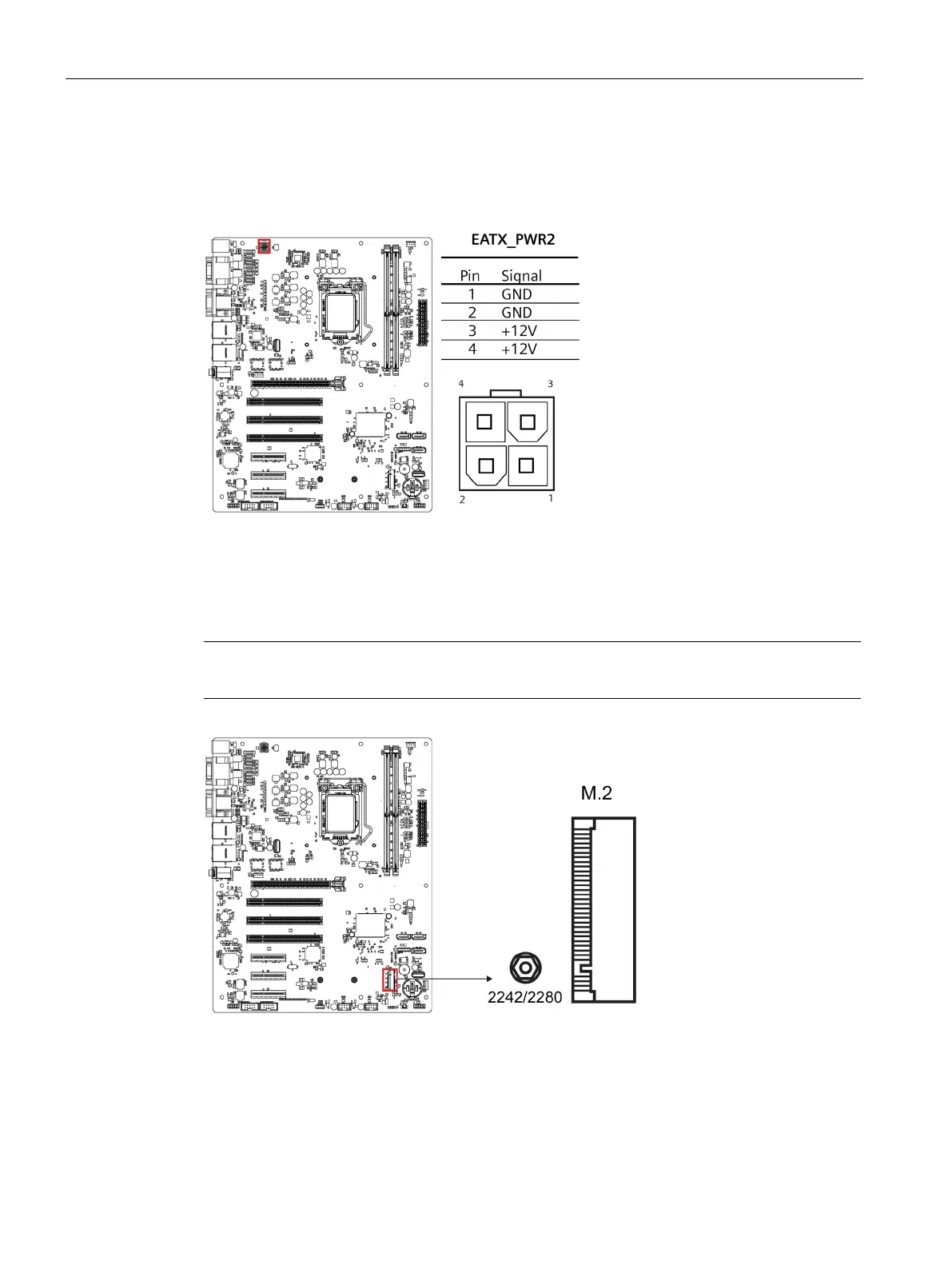

A.3.8 ATX Power 4-pin connector (EATX_PWR2)
ATX Power 4‐Pin Connector is for ATX PSU plug. Make sure you insert the ATX PSU plug
on motherboard in the right orientation, otherwise the plug cannot be inserted.
A.3.9 M.2 B Key slot
This socket allows you to install an M.2 module.
This slot only supports type 2242/2280 SATA storage devices.
A.3.10 Intel CPU socket (LGA1151)
Intel CPU Socket is for Intel 1155 Pin CPU. Refer to the CPU installing section Replacing the
processor (Page 62) for detailed information.
