Siemens SIMATIC S5 Equipment Manual

R 02/92
Matching Module 4 for Absolute Encoders

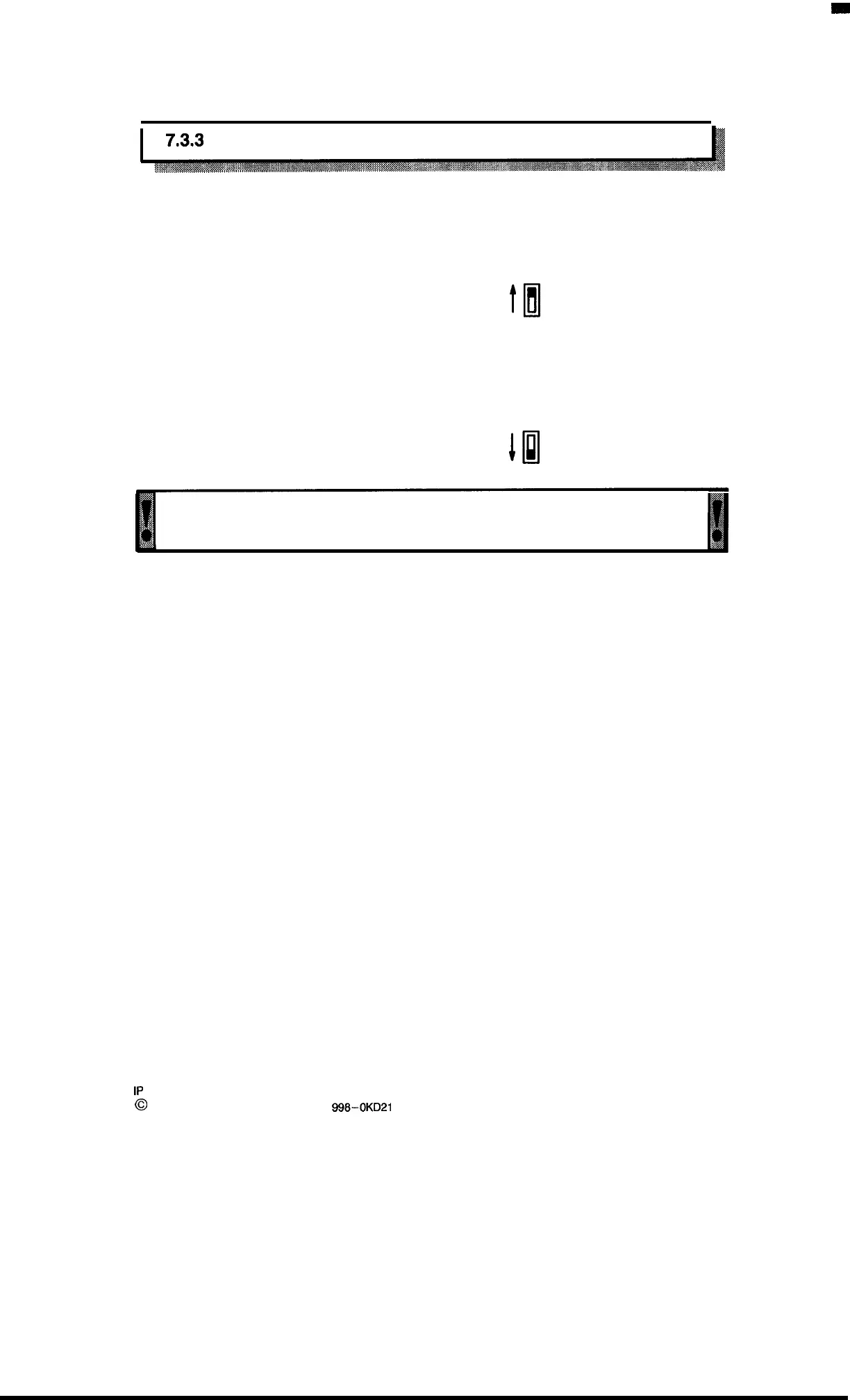

7.3.3 Select Direction of Rotation (for Gray or Binary Code)
Direction of rotation right ( CW = clockwise)
When the encoder rotates in a “right-hand” direction (i.e., clockwise with the shaft facing the ob-
server), incrementing actual values are provided if:
S3
Switch S3
II
Direction of rotation left ( CCW = counterclockwise)
When the encoder rotates in a “left–hand” direction (i.e., counterclockwise with the shaft facing
the observer), incrementing actual values are provided if:
S3
Switch S3
11
With a resolution of more then 20 bits, a change to counterclockwise rotation
is not possible, as the sign bit becomes “1” (internal evaluation in twos’
complements).
1P 241 Equipment Manual
@ Siemens AG 1989, Order No.: 6ES5 998-0KD21
7–9
