Siemens SIMATIC S5 Equipment Manual

R 02/92
General Function Description
Example 1
Programmable controller
I
I
r I
1
I
I
I
I
Amplifying unit

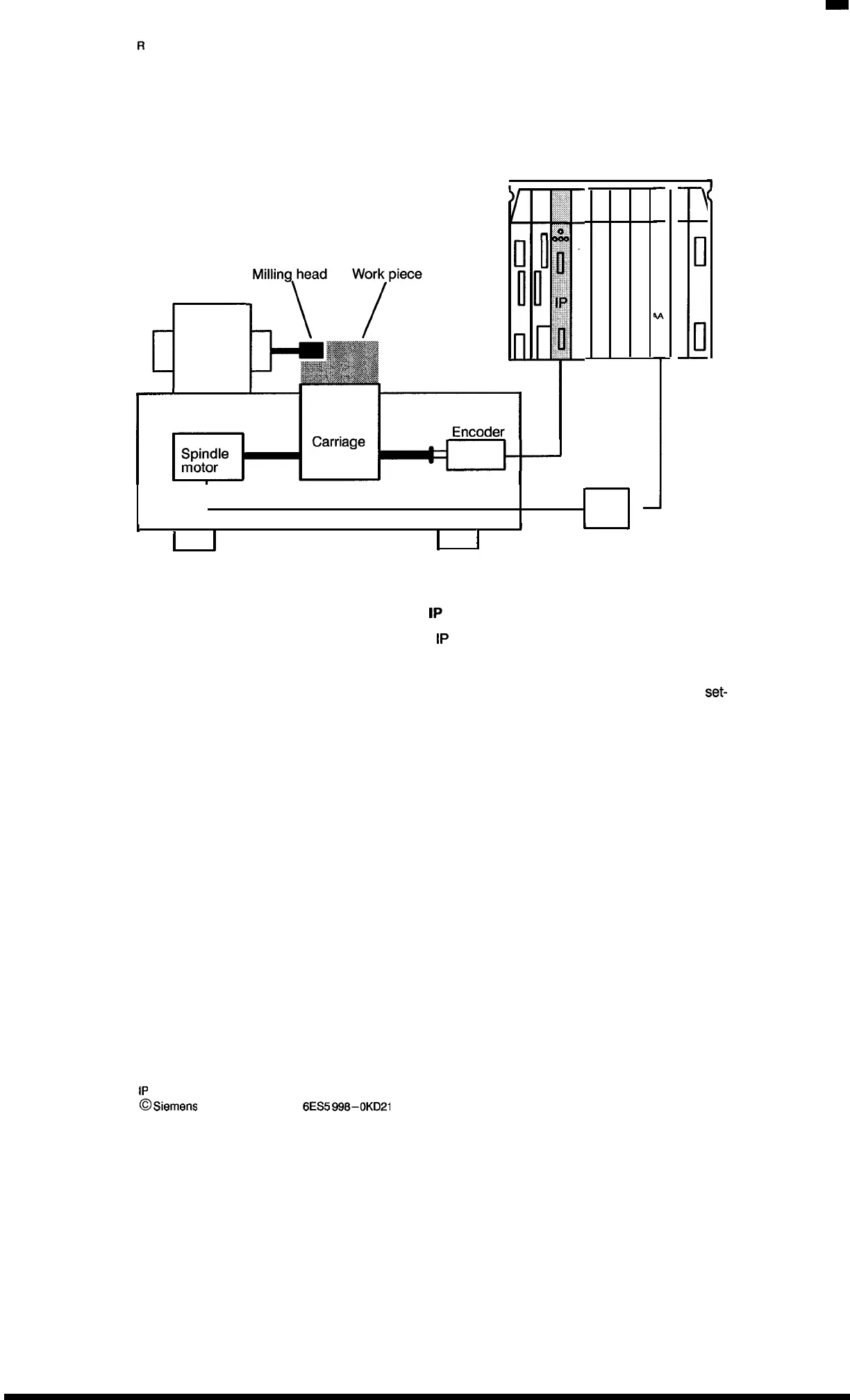

Example 1: Automatic Milling Operation with 1P 241
Via the encoder, flange attached to the shaft, the 1P 241 receives the “actual position” of the car-
riage and thus accordingly the work piece position.
The end positions of the milling head (respective work piece dimensions) are specified as set-
points.
Via a cam, positioned immediately in front of the work piece edge, a coolant pump can be
activated.
When the end position is reached, a quick and precise cutoff of the spindle motor can be effected
via an interrupt to the programmable controller.
For simplification, example 1 is limited to one axis.
1P 241 Equipment Manual
@ Siemens AG 1989. Order No: 6ES5 998-0KD21
1 – 15
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Siemens SIMATIC S5 Specifications

General

Product type designation	SIMATIC S5
Programming language	STEP 5
Digital inputs	Varies by model
Digital outputs	Varies by model
Analog inputs	Varies by model
Analog outputs	Varies by model
Supply voltage	24V DC
CPU Type	Varies by model
Memory	Varies by model
Digital I/O	Varies by model
Analog I/O	Varies by model
Communication	PROFIBUS
Operating Temperature	0°C to 60°C
Relative Humidity	5% to 95% (non-condensing)
