6.1 Operating mode, speed/torque setpoint (P0700 = 1)
6-331
 Siemens AG 2005 All Rights Reserved
SIMODRIVE 611 universal Description of Functions (FBU) – 04.05 Edition
6.1 Operating mode, speed/torque setpoint (P0700 = 1)
6.1.1 Application examples
Higher
level
control
SIMODRIVE
611
universal
n
set
Resolver/
encoder with sin/cos
1Vpp
(incremental)

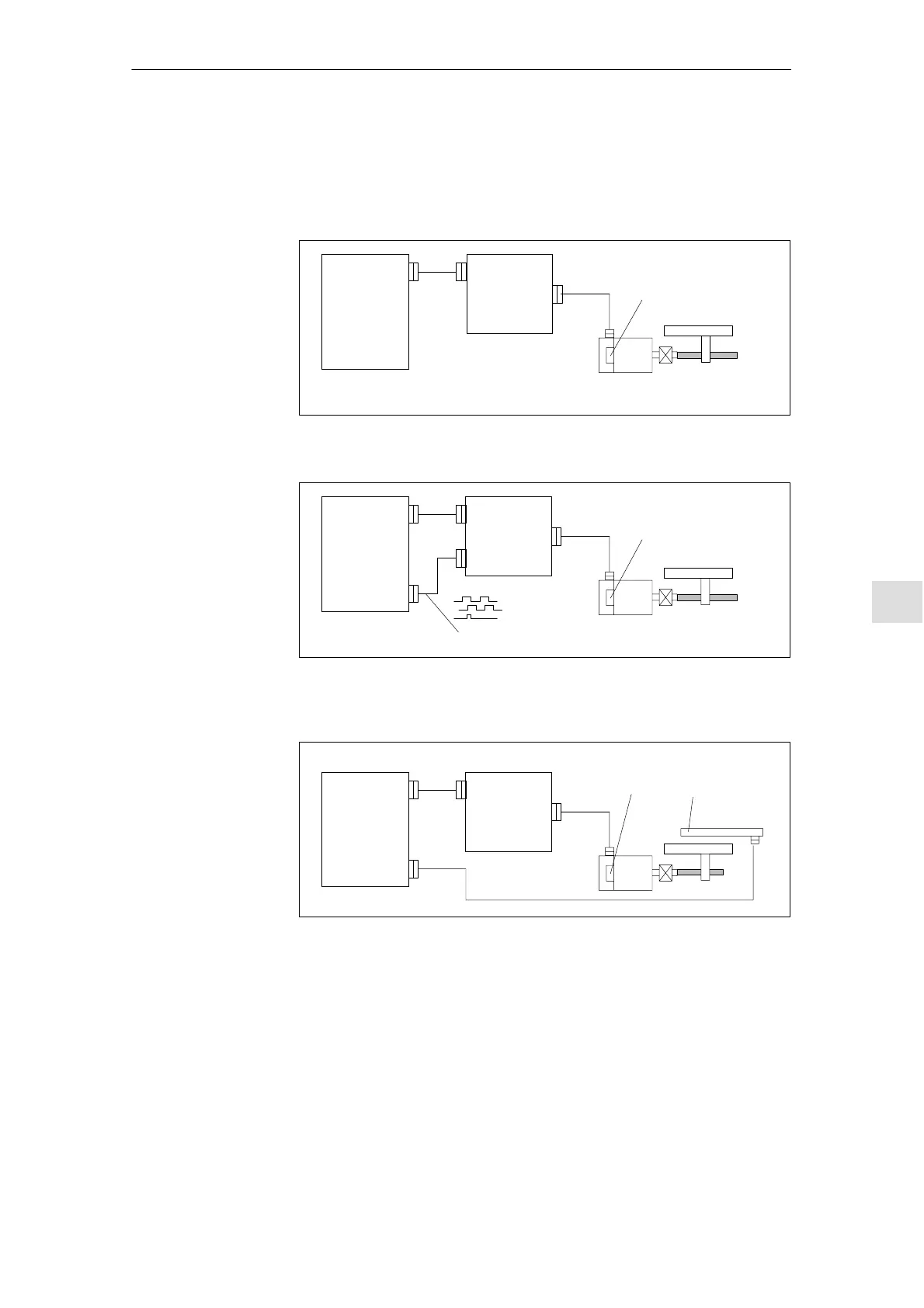

Fig. 6-1 Variable–speed drive
Higher
level
control
SIMODRIVE
611
universal
Angular incremental encoder interface
n
set
Resolver/
encoder with sin/cos
1Vpp
(incremental)
Fig. 6-2 Positioning drive using a higher–level open–loop control, position
actual value generation via angular incremental encoder
Higher
level
control
SIMODRIVE
611
universal
n
set
Resolver/
encoder with sin/cos
1Vpp
(incremental)
Direct
measuring
system
Fig. 6-3 Positioning drive using a higher–level open–loop control, position
actual value generation via a direct measuring system
