7.2 Displaying and handling faults and warnings
7.2.1 Display and operator control via the display and operator unit
The segment display is automatically changed over into the alarm
mode when one or several faults or warnings occur. The faults and
warnings are output flashing on the display unit. They can be displayed
as follows:

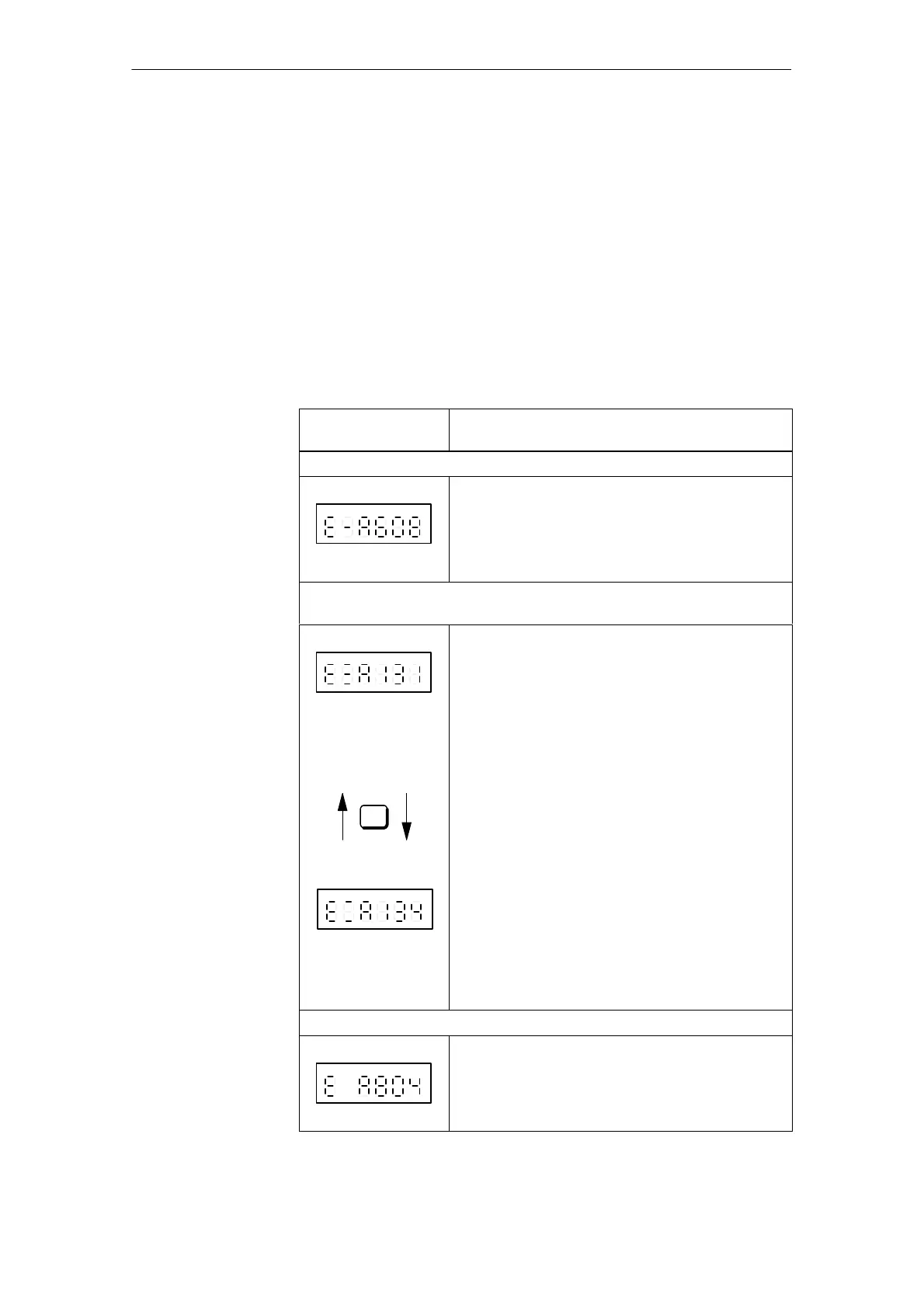

Table 7-3 Displaying alarms on the display unit
Display example
(flashing display)
Description
1. This is what it looks like if a fault has occurred (refer to Fig. 7-1).
E: it involves a fault
(Code: 1 hyphen)
1 hyphen: there is one fault present
A: the fault is assigned to drive A
608: is the fault number
2. This is what it looks like if several faults have occurred
(refer to Fig. 7-2).
E: it involves several faults
(Code: 3 hyphens)
3 hyphens:
– several faults are present
– this is the first which occurred
A: the fault is assigned to drive A
131: is the fault number
+
Note:
By pressing the PLUS button, several faults can be
displayed for each additional fault.
E: it involves an additional fault
(code: 2 hyphens)
2 hyphens:
– several faults are present
– this is an additional fault
A: the fault is assigned to drive A
134: is the fault number
3. This is what it looks like if a warning is present (refer to Fig. 7-3).
E: it involves a warning
(code: no hyphen)
A: the warning is assigned to drive A
804: is the warning number
