7.2 Displaying and handling faults and warnings
7-626
Siemens AG 2005 All Rights Reserved
SIMODRIVE 611 universal Description of Functions (FBU) – 04.05 Edition
When warnings occur, they can be handled using the MINUS key as
shown in the following diagram.
+P–
Parameterizing mode
Switch into the parameterizing mode
Flashing
display
Alarm mode
Display and
operator unit
Symbol for one warning
(no hyphen)
–
Key
–
Automatically
after one
minute

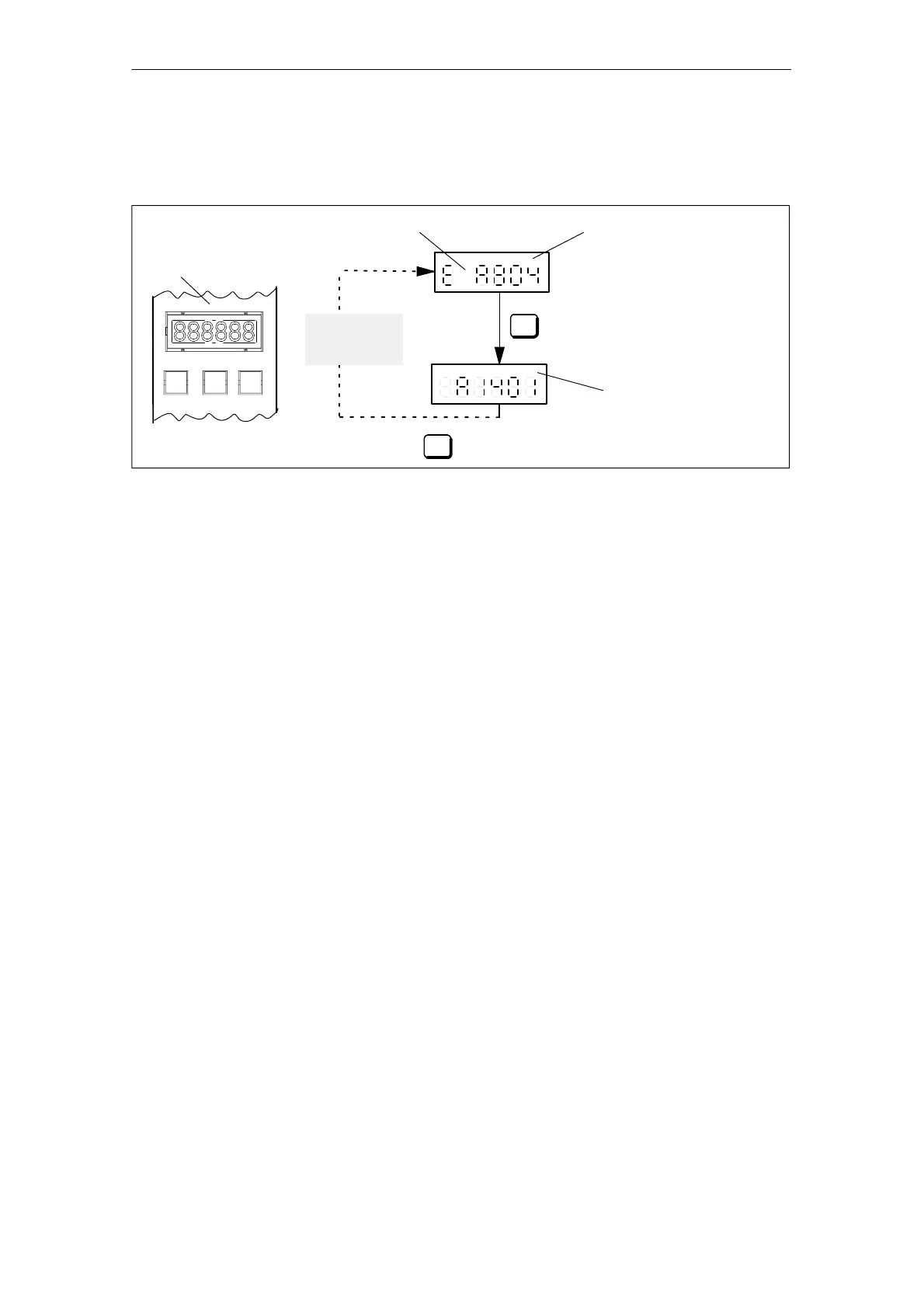

Fig. 7-3 Operator action, if one warning is present
Operator action,
if one
warning is present
