Siemens SIMODRIVE 611 universal User Manual

3
3.2 Parameterizing using the display and operator unit
3-91
 Siemens AG 2005 All Rights Reserved
SIMODRIVE 611 universal Description of Functions (FBU) – 04.05 Edition
These parameters can be displayed and handled in the following ways
(example with A1401: Parameter 1401 from drive A):
Parameter display
Sub–parameter display
Value display
P
P
+
–
+
–
+
–
+
–
+
–
+
–
+
–
+: Key +
–: Key –
P: Key P

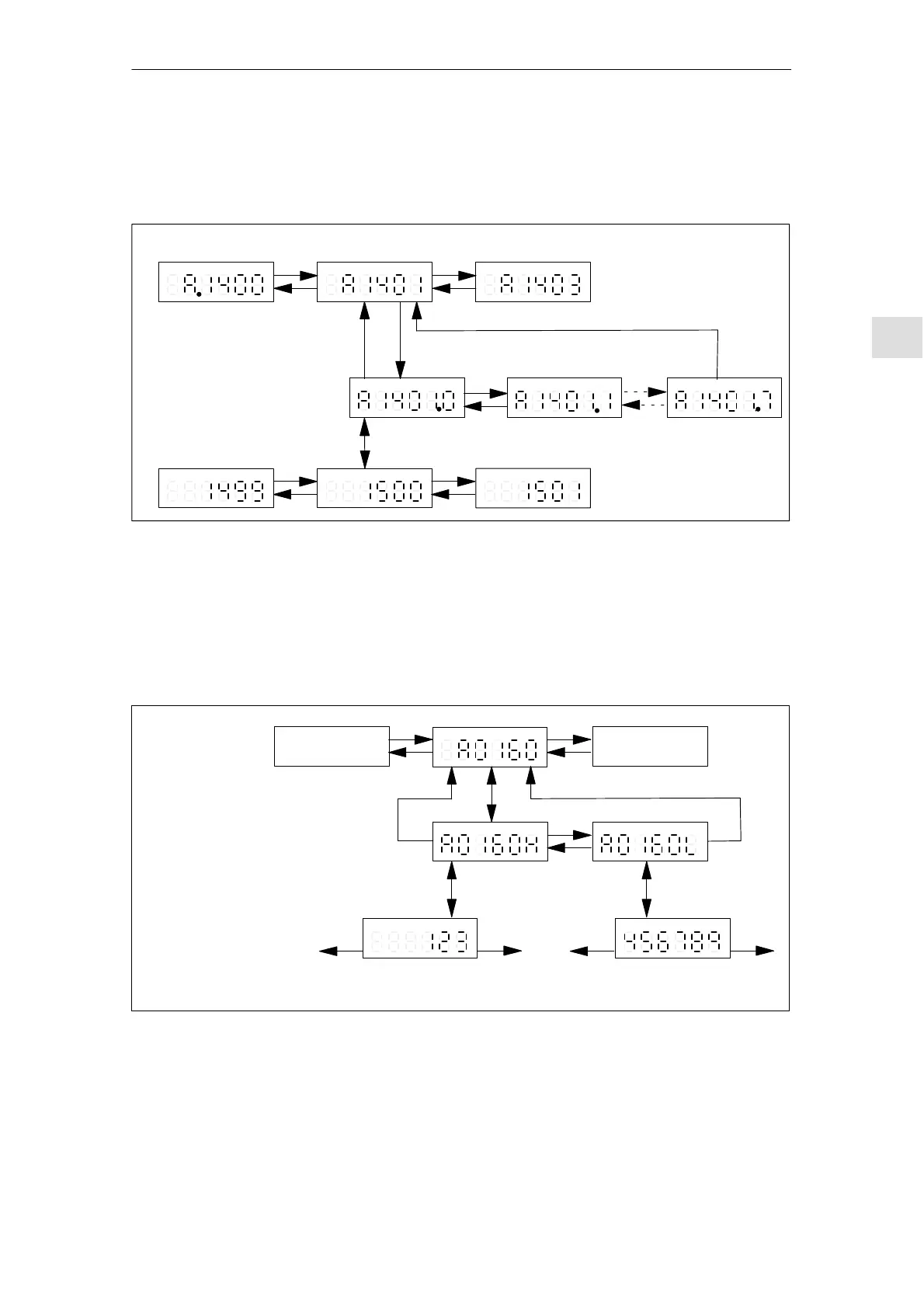

Fig. 3-3 Handling parameters with sub–parameter and value display, max. 6 positions
For these parameters, the following display and handling possibilities
exist (example with A0160: Parameter 0160 from drive A):
Parameter display
P
+
–
+
–
Previous
parameter
Subsequent
parameter
+
–
P P
Value display
(e.g.
the value 123 456.789)
Sub–divided into H: High part
L: Low part
–+
+– +–
Display
from the 7th position
Display
up to the 6th position
+: Key +
–: Key –
P: Key P
Fig. 3-4 Handling parameters with sub–parameter and value display > 6 positions
Parameter with
sub–parameter
and value display,
max. 6 digits
Parameters
without
sub–parameter
and value display
> 6 digits
3 Parameterizing the Board
01.99
