Flexible NC programming

1.14 Interrupt routine (ASUB)

Job planning

122 Programming Manual, 07/2010, 6FC5398-2BP40-0BA0

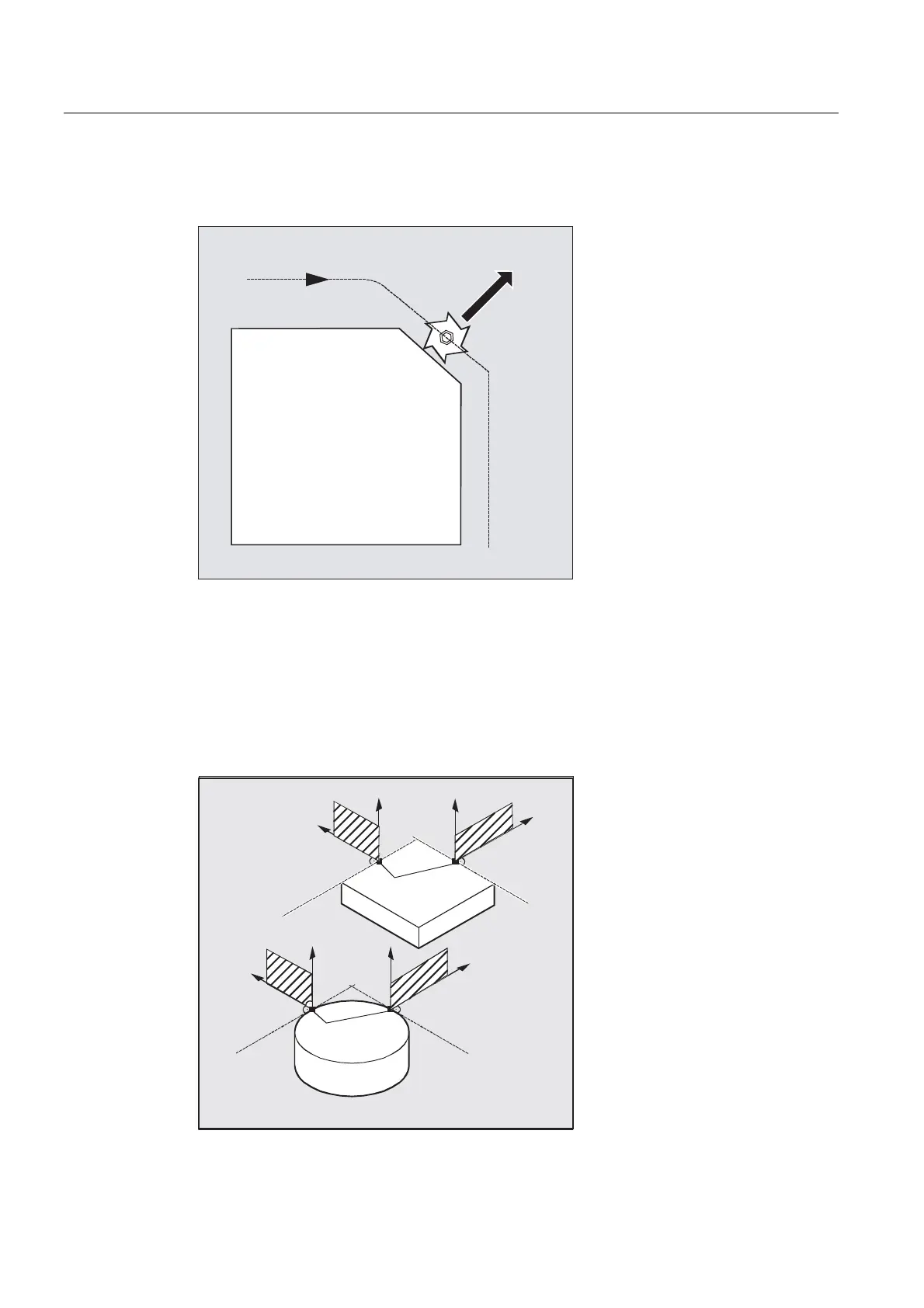

With G41 activated (machining direction to the left of the contour) the tool vertically moves

away from the contour.

$/) 

*

Reference plane for defining the traversing direction for LFTXT

At the point of application of the tool to the programmed contour, the tool is clamped at a

plane which is used as a reference for specifying the liftoff movement with the corresponding

code number.

The reference plane is derived from the longitudinal tool axis (infeed direction) and a vector

positioned perpendicular to this axis and perpendicular to the tangent at the point of

application of the tool.

,QWHUYHQWLRQ

SRLQW

,QWHUYHQWLRQ

SRLQW

7DQJHQW
