Siemens SINUMERIK 828D Programming Manual

Transformations
6.8 Kinematic transformation
Job planning
368 Programming Manual, 07/2010, 6FC5398-2BP40-0BA0
Description
Without groove wall offset (transformation type 512):

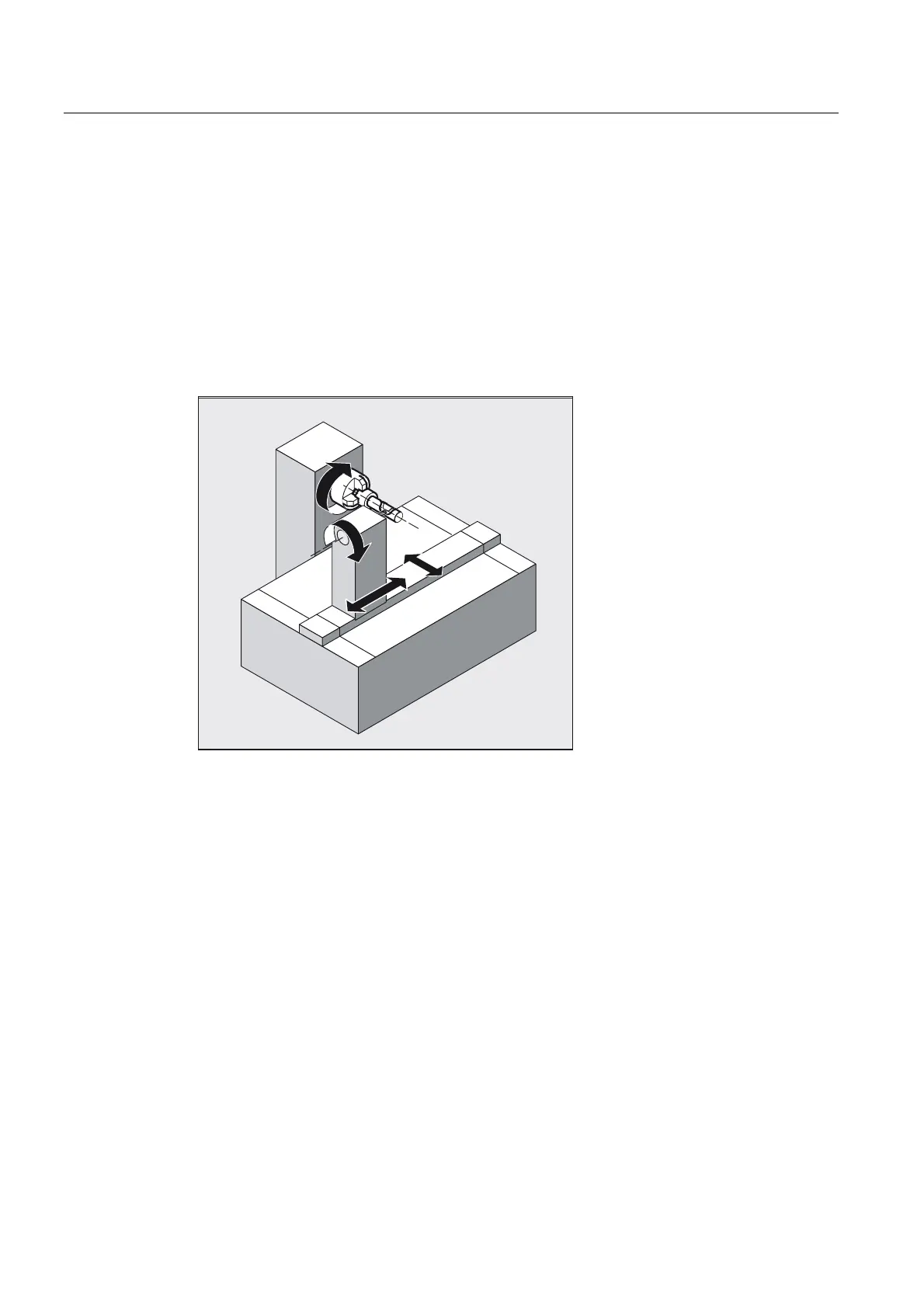

The control transforms the programmed traversing movements of the cylinder coordinate
system to the traversing movements of the real machine axes:
● Rotary axis
● Infeed axis perpendicular to rotary axis
● Longitudinal axis parallel to rotary axis
The linear axes are positioned perpendicular to one another. The infeed axis cuts the rotary
axis.
;0
$60
<RU&0
=RU=0
