Transformations
6.8 Kinematic transformation
Job planning
Programming Manual, 07/2010, 6FC5398-2BP40-0BA0
373
Significance
TRAANG( ) or
TRAANG( ,n)
Activate transformation with the parameterization of the previous
selection.
TRAANG(α)
Activates the first specified inclined axis transformation
TRAANG(α,n)
Activates the nth agreed inclined axis transformation. The maximum
value of n is 2. TRAANG(α,1) corresponds to TRAANG(α).
αA
Angle of the inclined axis
Permissible values for α are:
-90 degrees < α < + 90 degrees
TRAFOOF
Transformation off
n
Number of agreed transformations
Angle α omitted or zero
If α (angle) is omitted (e.g.,
TRAANG(), TRAANG(, n) ), the transformation is activated with the
parameterization of the previous selection. On the first selection, the default settings
according to the machine data apply.
An angle α = 0 (e.g.,
TRAANG(0), TRAANG(0,n)) is a valid parameter setting and is no longer
equivalent to the omission of the parameter, as in the case of older versions.

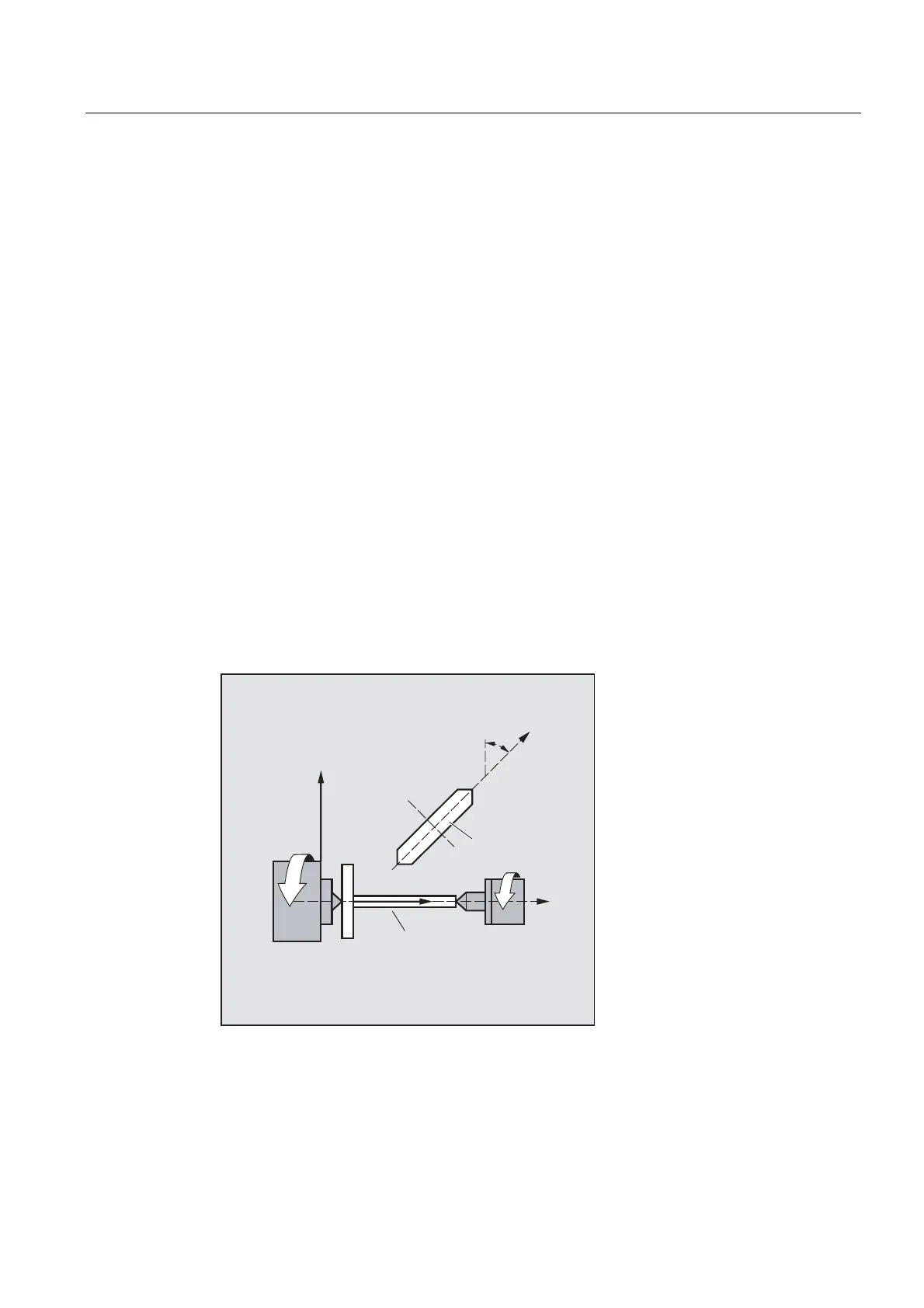

Example
༾
;
=
&
0=
$6
08
*ULQGLQJGLVF
:RUNSLHFH
