6.8 Kinematic transformation
Job planning
374 Programming Manual, 07/2010, 6FC5398-2BP40-0BA0
Program code
Comments
N10 G0 G90 Z0 MU=10 G54 F5000 ->
-> G18 G64 T1 D1
; Tool selection, clamping compensation,
Plane selection
N20 TRAANG(45) ; Activate inclined axis transformation
N30 G0 Z10 X5 ; Approach the starting position
N40 WAITP(Z) ; Release axis for oscillation
N50 OSP[Z]=10 OSP2[Z]=5 OST1[Z]=–2 ->
-> OST2[Z]=–2 FA[Z]=5000
N60 OS[Z]=1
N70 POS[X]=4.5 FA[X]=50
N80 OS[Z]=0
; Oscillation until the dimension is reached
(Oscillation, see Chapter "Oscillation")
N90 WAITP(Z) ; Release oscillating axes as positioning
axes
N100 TRAFOOF ; Deactivate transformation
N110 G0 Z10 MU=10 ; Retract
N120 M30 ;
-> program in a single block

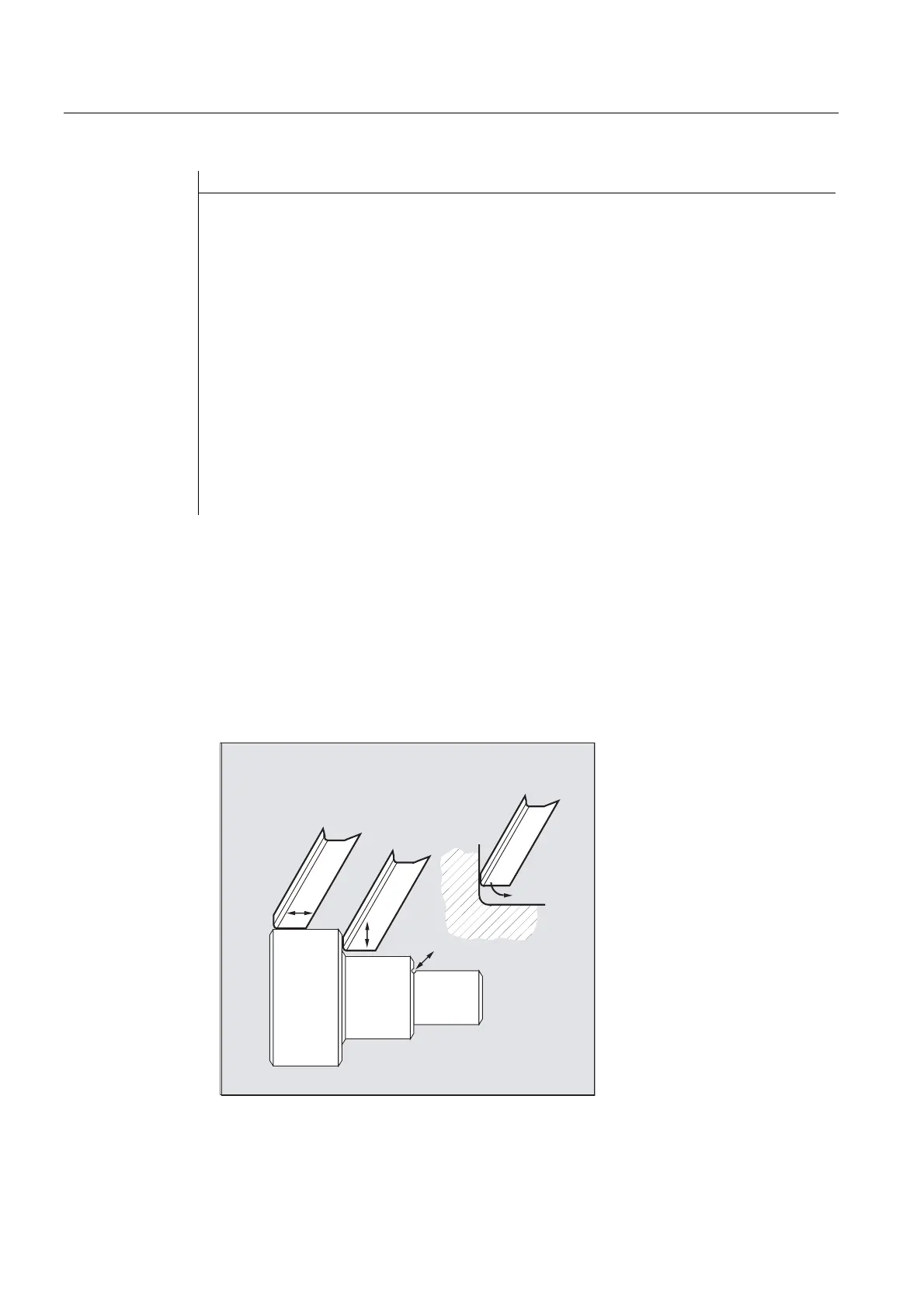

Description
The following machining operations are possible:
1. Longitudinal grinding
2. Face grinding
3. Grinding of a specific contour
4. Oblique plunge-cut grinding.




