Motion synchronous actions
10.4 Actions in synchronized actions
Job planning
Programming Manual, 07/2010, 6FC5398-2BP40-0BA0
591
Example

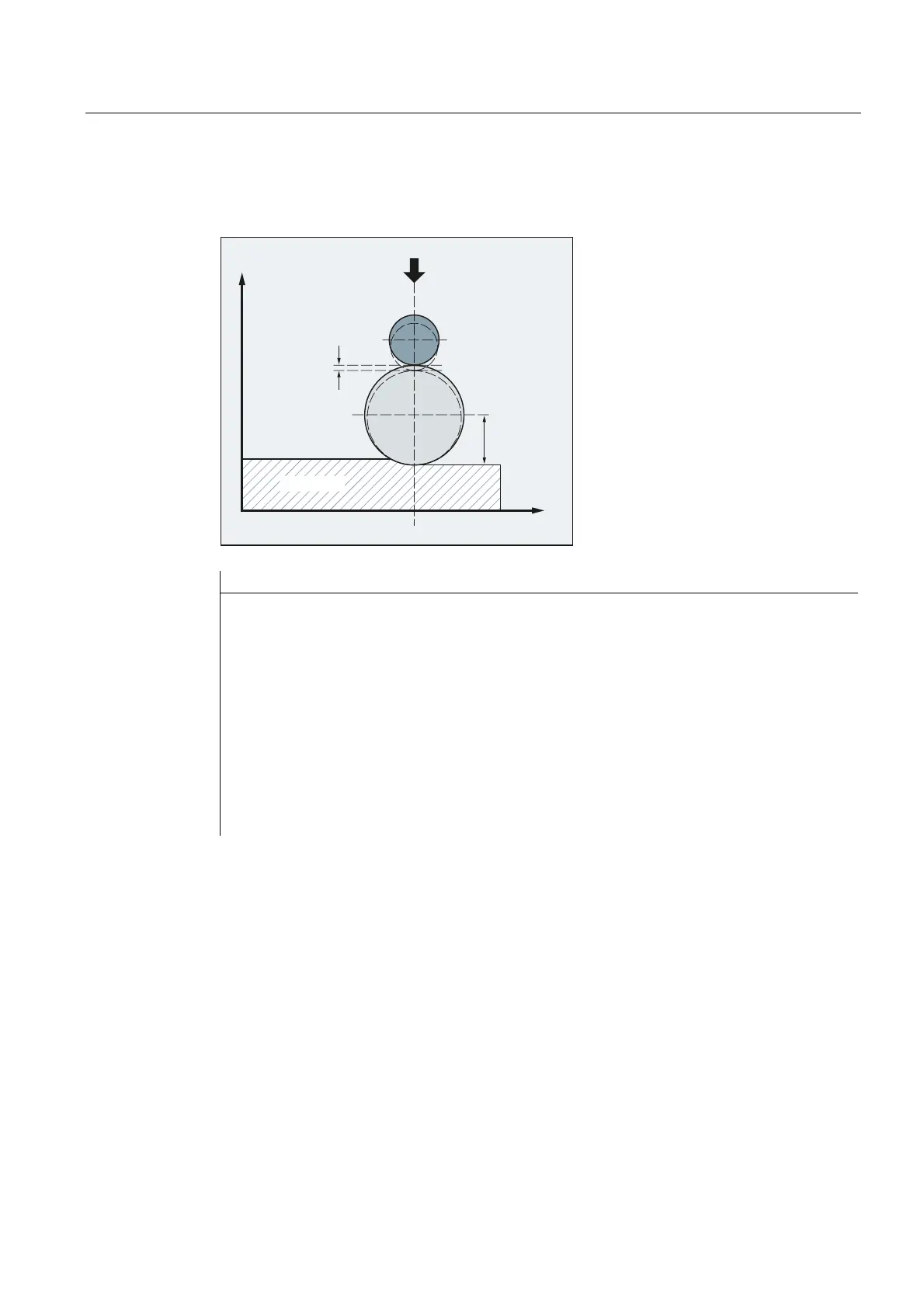

The length of the active grinding wheel is to be compensated.
'UHVVLQJUROO
'UHVVLQJ
DPRXQW
:RUNSLHFH
*ULQGLQJGLVF
OHQJWK
WREH
FRUUHFWHG
;
<


Program code Comments
FCTDEF(1,-1000,1000,-$AA_IW[V],1)
;
Function definition.
ID=1 DO FTOC(1,$AA_IW[V],3,1)
;
Select online tool offset: Actual value
of the V axis is the input value for
polynomial 1.Result is added in
channel 1 as compensation value to
length 3 of the active grinding disk.
WAITM(1,1,2)
;
Synchronization with machining channel.
G1 V-0.05 F0.01 G91
;
Feed motion to dress.
G1 V-0.05 F0.02
...
CANCEL(1)
;
Deselect online offset.
...
