User stock removal programs
15.2 Generate contour table (CONTPRON)
Job planning
Programming Manual, 07/2010, 6FC5398-2BP40-0BA0
691
Example 1
Generating a contour table with:
● Name "KTAB"
● Max. 30 contour elements (circles, straight lines)
● One variable for the number of relief cut elements that occur
● One variable for fault messages
;
=
NC program:
Program code Comments
N10 DEF REAL KTAB[30,11] ; Contour table with the KTAB name and max.
30 contour elements, parameter value 11
(number of table columns) is a fixed
quantity.
N20 DEF INT ANZHINT ; Variable for the number of relief cut
elements with the name ANZHINT.
N30 DEF INT ERROR ; Variable for fault feedback signal (0=no
fault, 1=fault).
N40 G18
N50 CONTPRON(KTAB,"G",ANZHINT) ; Activate contour preparation.
N60 G1 X150 Z20
N70 X110 Z30
N80 X50 RND=15
N90 Z70
N100 X40 Z85
N110 X30 Z90
N120 X0

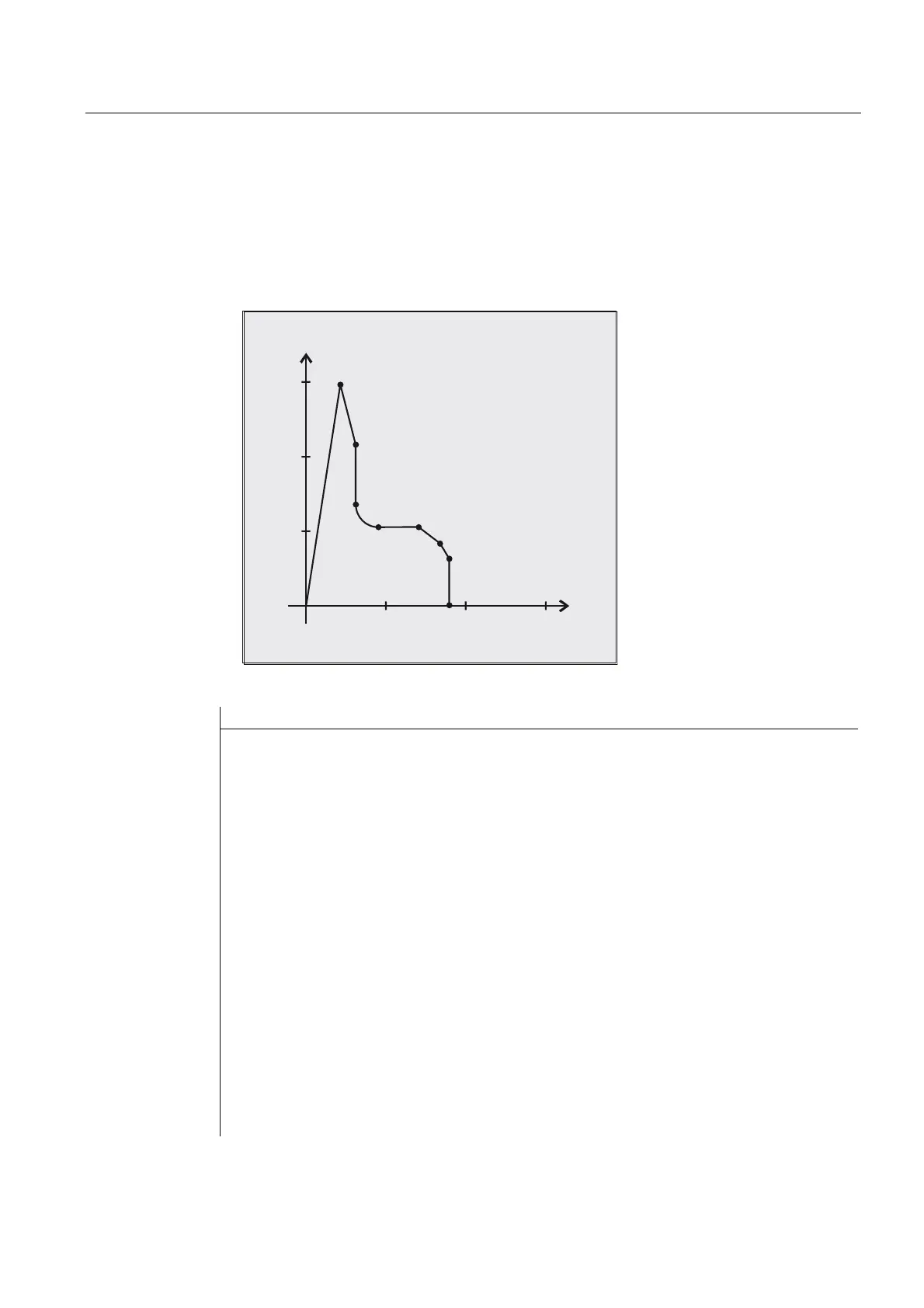

; N60 to N120: Contour description
N130 EXECUTE(ERROR) ; End filling the contour table, change over
to normal program operation.
N140 … ; Continue to process the table.
