5 Operation
5.3 Selection mode
Manual
152
SIPART DR21
C73000-B7476-C143-08
5.3 Selection mode
You enter the selection mode the various configuring menus by pressing the Shift key (6) for
longer (approx. 5 s) until ”PS” flashes in the y display.
Condition: Digital signal ”Blocking Operation” and ”Blocking Parameterization,
Structuring” are not active.
bLb = 0 and bLPS = 0
The controller operates in online mode in the selection level, i.e. its last operating mode is re-
tained, the current process variables can be traced on the analog displays (1), (2).
The configuration menus can be selected with the Δ w keys (14), (15). If none of these menus
is called with the Enter key (11) within about 20 s (≙ enter the configuring mode), the controller
automatically returns to the process operation mode.
SIPART DR21
SIPART DR21
SIEMENS
SP-W
OUT-Y
C
PV
X
A1
A2
A3
A4
ADAPT
100
50
0
W
X
SP
W
no function
3
1
2
78
9
14
15
Selection onPA-(AdAP)-oFPA-
StrS-(CAE3)-APSt
Command
variable w
Controlled
variable x
Adaptation LED: off
Shift key: Enter selection mode
PS (Parame-
terization/
Structuring)
Display of
selected con-
figuring level
Exit key
↗: Return to process-
operation mode
Exit LED: flashes
Internal LED: current status
Manual LED: current status
Enter key
↗: Jump to selected
Configuring mode
both LEDs off, no function
4, 5
6
19
11
12
13
16
17
18
Enter LED: flashes

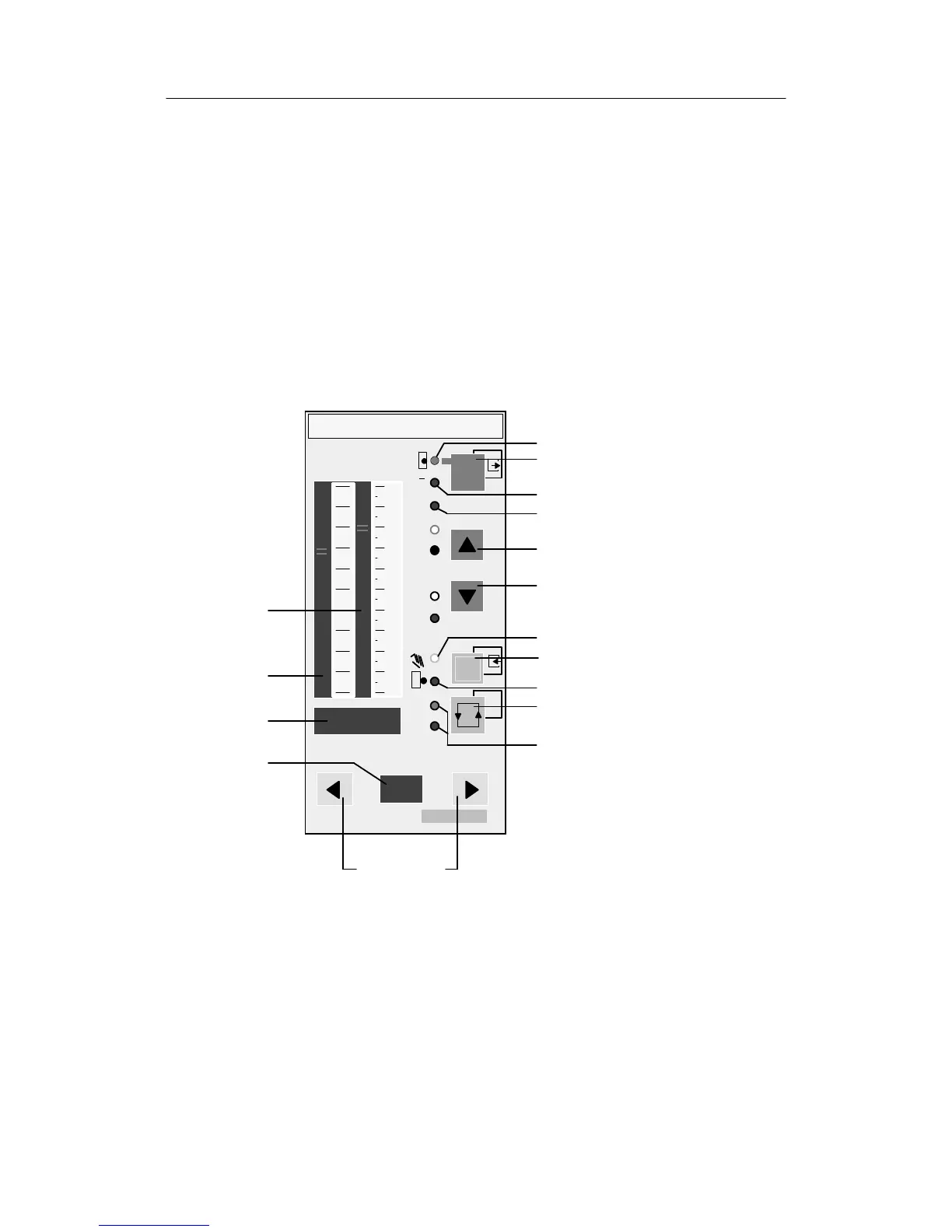

Figure 5-1 Control and display elements in the selection mode
