2 Technical Description
2.6 Technical Data
Manual
SIPART DR21
C73000-B7476-C143-08
35
Connection technique
Power Supply
115/230 V AC
24 V UC
Field signals
Three-pin plug IEC320/V DIN 49457A
Special 2-pin plug
Plug-in terminals for 1.5 mm
2
AWG 14
1)
Installation depth necessary for
changing the main board
and modules
relay module
6DR2804-8A/B

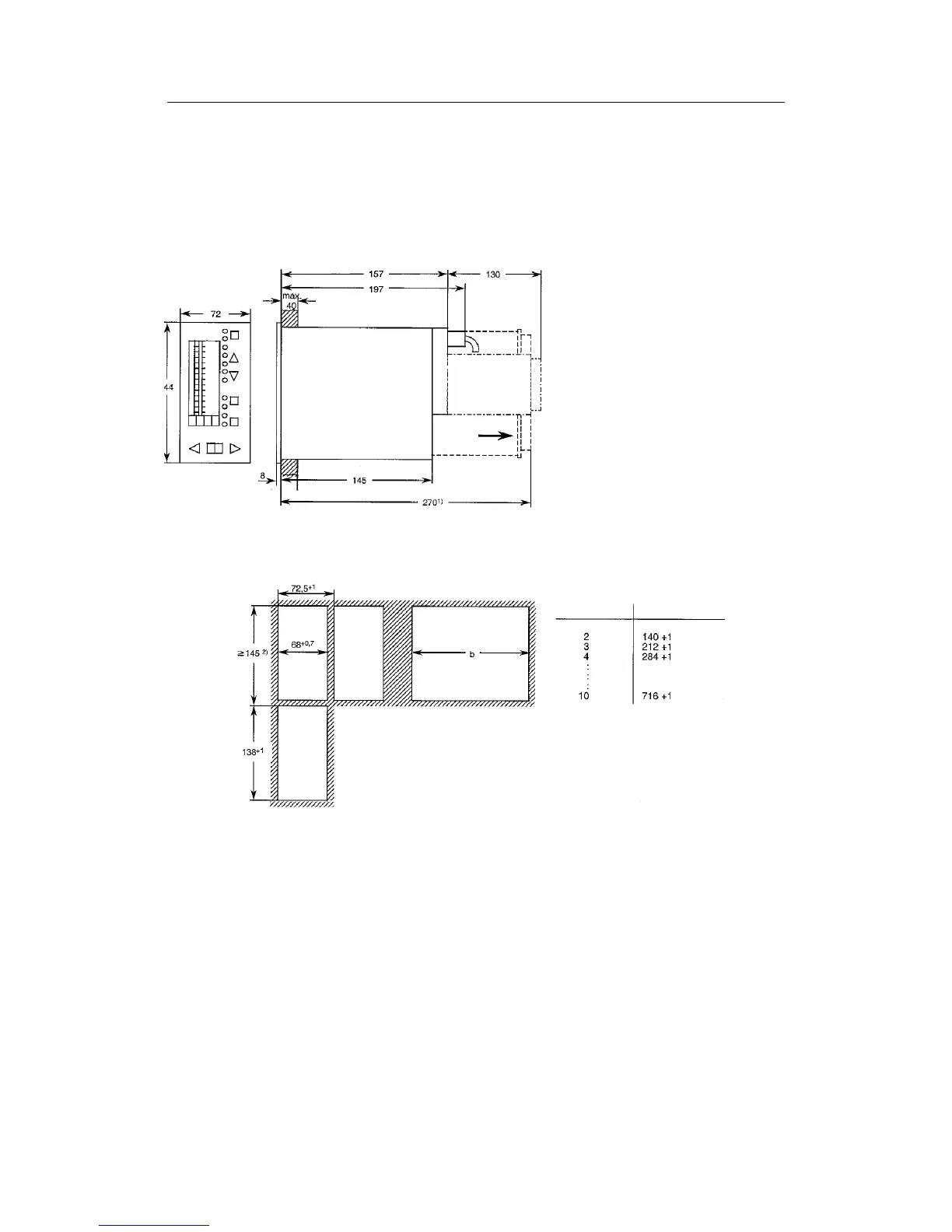

Figure 2-5 Dimensions SIPART DR21, dimensions in mm
Number of Cut-out
controllers width b
2)
Under consideration of the permissible ambient tempera-
ture, tight installation one above the other is allowed
Figure 2-6 Panel cut-outs, dimensions in mm
