3.4.5 Controlled ratio controller (S1 = 3)
wV
ES
x
w
wv
x2
wv
x1
x2
w
VEA
v
is
=
x1 - c5
x2
y
a
W
+
-
X
PID
ya+c6 · z
y
y
H
z
0000
w=v · x2+c5
tS
wvi
SES
00
v = vA to vE
v=wv·(vE - vA)+vA
xv
x1
w
Int
∧CB

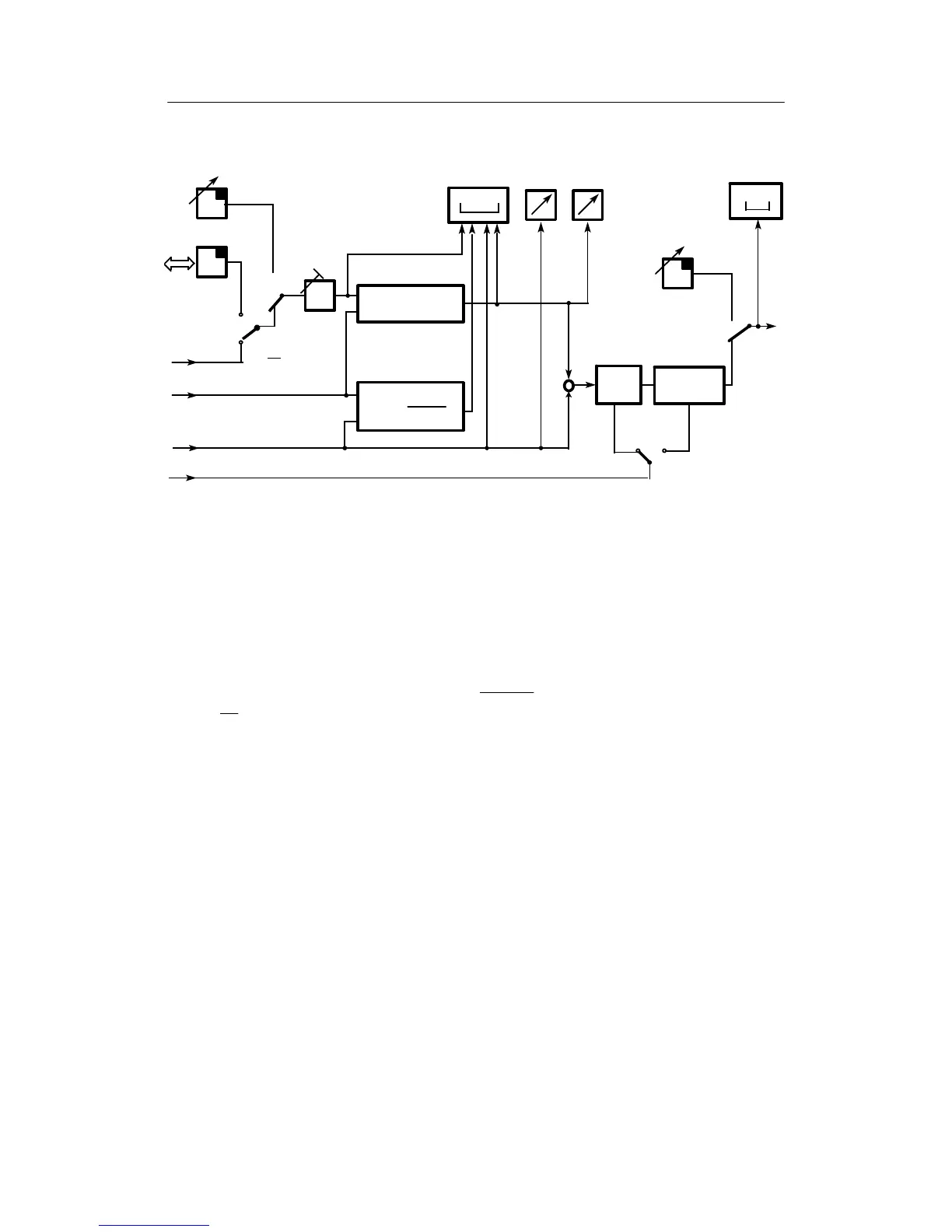

Figure 3-11 Control principle S1 = 3
In a ratio control the commanding process variable x2 is weighted with the adjustable ratio
factor and a basic value c5 added if necessary. The result forms the setpoint w for the following
controlled process variable x1.
w = v · x2 + c5
With xd = w - x1 the result is xd = v · x2 + c5 - x1
In the controlled state (xd = 0) the result is
v=
x1 -- c5
x2
, i.e. in the controlled state and at
c5 = 0
x1
x2
behaves according to the set ratio factor v.
A typical application are combustion rules where a fuel volume x1 belongs to every air volume
x2 to guarantee optimum combustion.
The ratio factor range v = vA to vE is determined with the parameters vA and vE in the structur-
ing mode oFPA in the range from 0.0 to 9.999 (factory setting vA = 0, vE = 1). In addition a
basic value c5 (parameterization mode onPA) can be connected in the range from --1.999 to
9.999 (factory setting = 0.0).
The standardized nominal ratio wv (wvi or wv
E
) in the range from 0 to 1 is converted to the ratio
factor range.
v = wv (vE - vA) + vA
With w = v · x2 + c5 the result is w = [wv (vE - vA) + vA] x2 + c5
In the ratio controller the standardized nominal ratio wv and the standardized actual ratio xv are
displayed on the digital x/w-displays respectively in display levels I and II. A physical display is
possible with dA, dE, dP. The controlled variable x1 and the evaluated commanding process
variable w are displayed on the analog x - and w-displays respectively so that a direct control
