7 Application examples for configuring the controller
7.3 Configuration examples
Manual
SIPART DR21
C73000-B7476-C143-08
215
Configuration example L4 continued
If the FR is switched to manual in this state, lighting of the LED (13) indicates tracking
mode, flashing of LED (12) the ineffectiveness of the positioning keys (7) and (8).
Tracking has priority over manual operation. Lighting of the LED (13) on the FR
indicates tracking i.e. manual control from the control unit (LG). If the FR is now
switched to manual, LED (13) flashes and the Manual LED lights steadily because
manual operation has priority over tracking on the FR. The manipulated variable of the
FR is controlled incrementally by the LG. Therefore the actuating time ty (onPA) must
be set to a finite value (ty > 20 s) otherwise the final value will be reached immediately
when the positioning keys (7) or (8) are pressed briefly. See also chapter 3.4.6, page
80 and figure 3-17, page 86.

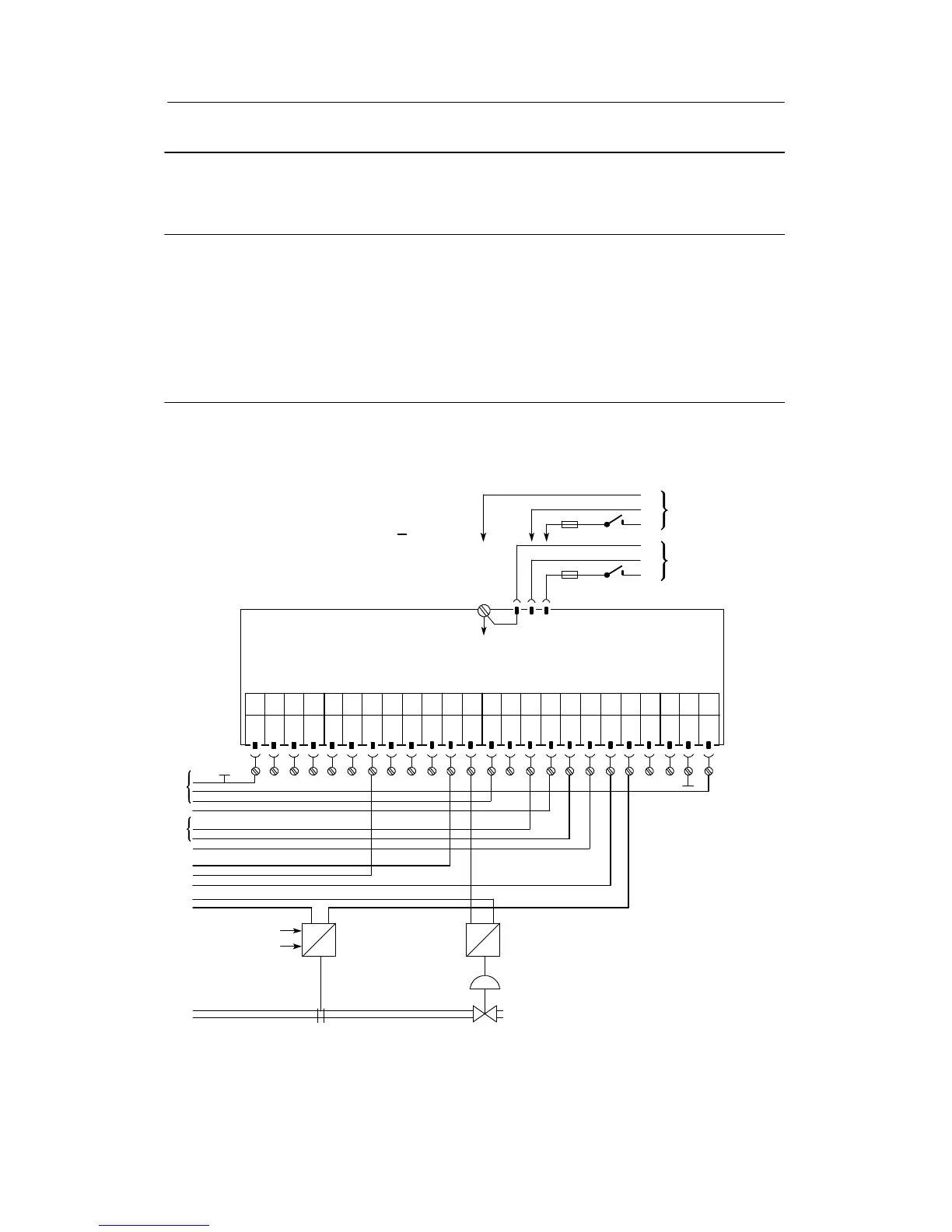

Slave controller SIPART DR22
Setting the structure switches of the SIPART DR22 slave controller:
S1=3,slavecontroller S61=1,H>N
S16 = 0, FE2 !0S62=1,yN!yNΔ
S24 = 4, CB !DI4 S74 = 18, w !AO2
S25 = 0, He !0S78=4,H!DO4
S35 = 1, +Δy !DI1 S85 = 8, Int !DO8
S36 = 2, --Δy !DI2 S89 = 1, N !N
S49 = 2, wi int $ ext
AI1
--
PE
N
L
PE
N
L
UC 24 C
AC 115 V
AC 230 V
AI1
+
123 45678910111213 14 15
SIP ART DR22 standard controller
6DR2210-5 (AC230 V/115 V)
6DR2210-4 (UC 24 C)
16 17 18 19 20 21 22 23 24
L+ AA1 AA2 AA3 DI1 DI2 DI3 DI4
AI2
--
AI2
+
AI3
--
AI3
+
ty > 20 s
