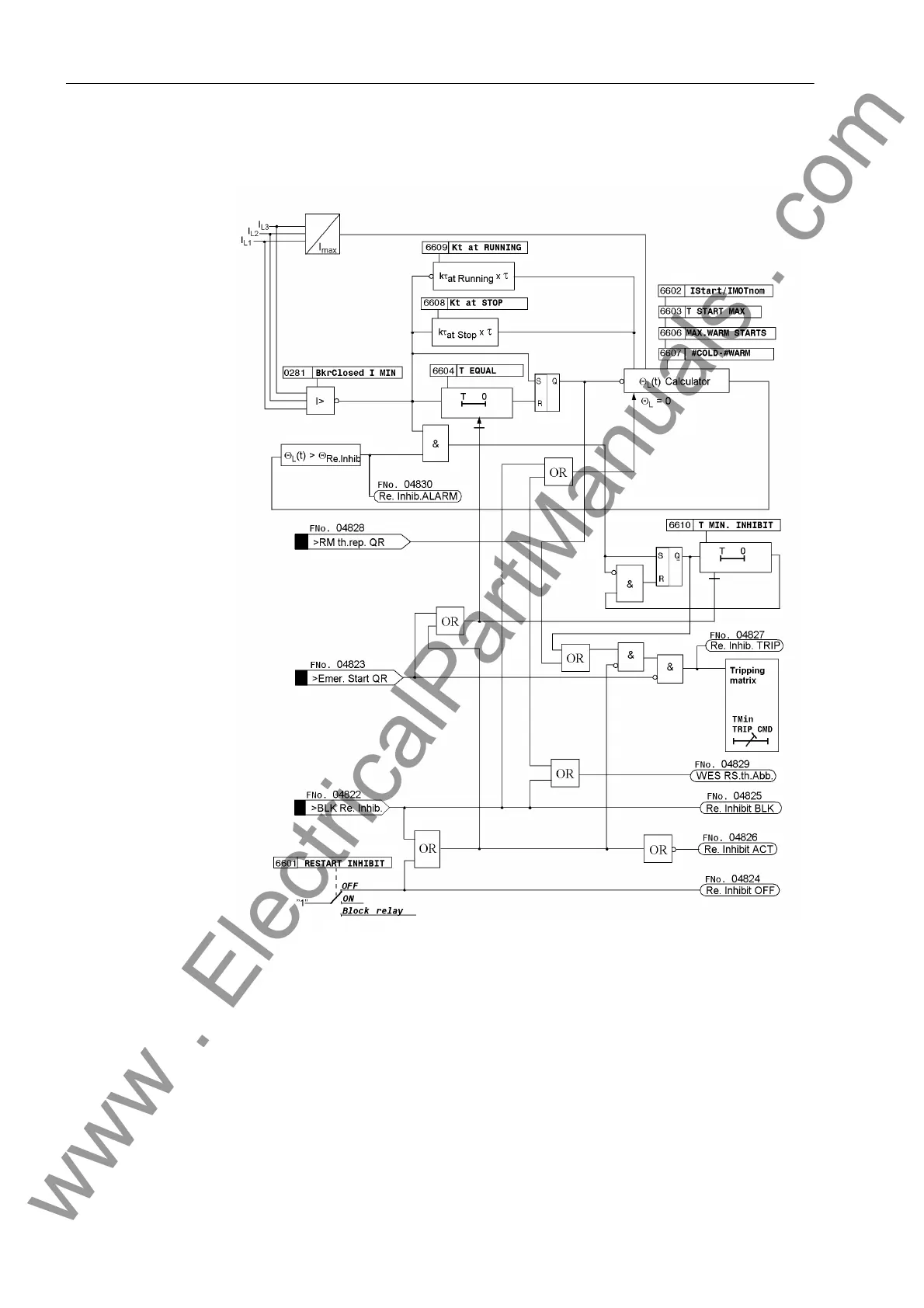

The following figure shows the logic diagram for the restart inhibit.
Figure 2-54 Logic diagram of the Restart Inhibit
2.25.2 Setting Notes
General Restart inhibit is only effective and available if address 166 RESTART INHIBIT was
set to Enabled during configuration. If the function is not required Disabled is set.
Address 6601RESTART INHIBIT serves to switch the function ON or OFF or to block
only the trip command (Block relay).
