Siemens Siprotec 7UM611 User Manual

2 Functions
182
7UM61 Manual
C53000-G1176-C127-3

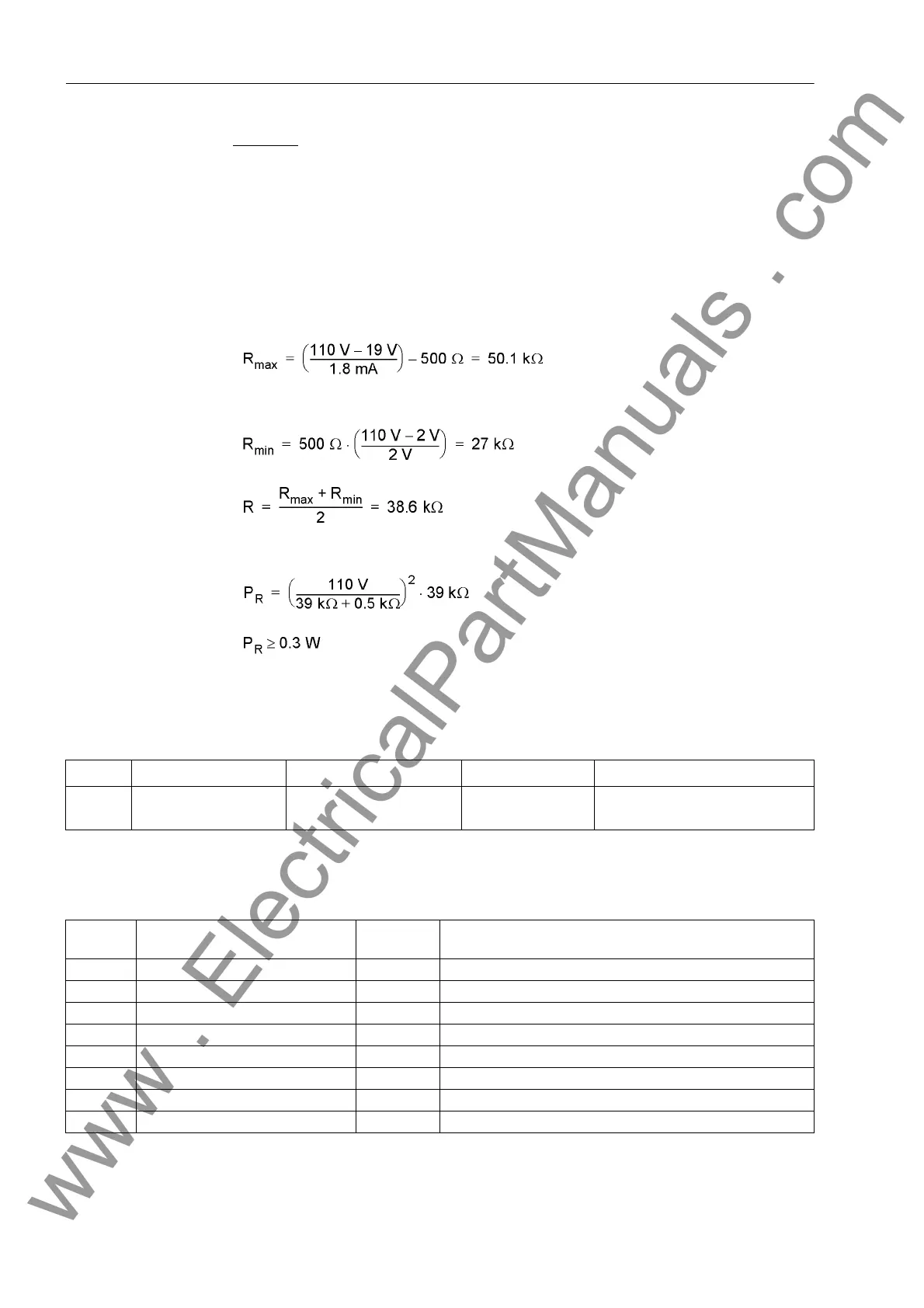

Example:
I
BI (HIGH)
1.8 mA (from the SIPROTEC
®
7UM61)
U
BI min
19 V for delivery setting for nominal voltages 24/48/60 V (for device
7UM61) 88 V for delivery setting for nominal voltages
110/125/220/250 V) (for device 7UM61)
U
Ctrl
110 V (system / trip circuit)
R
CBTC
500 Ω (from power system / trip circuit)
U
CBTC (LOW)
2 V (system / trip circuit)
The closest standard value of 39 kΩ is selected; for the power:
2.29.3 Settings
2.29.4 Information List
Addr. Parameter Setting Options Default Setting Comments
8201 TRIP Cir. SUP. OFF
ON
OFF TRIP Circuit Supervision
No. Information Type of In-
formation
Comments
6851 >BLOCK TripC EM >BLOCK Trip circuit supervision
6852 >TripC trip rel EM >Trip circuit supervision: trip relay
6853 >TripC brk rel. EM >Trip circuit supervision: breaker relay
6861 TripC OFF AM Trip circuit supervision OFF
6862 TripC BLOCKED AM Trip circuit supervision is BLOCKED
6863 TripC ACTIVE AM Trip circuit supervision is ACTIVE
6864 TripC ProgFail AM Trip Circuit blk. Bin. input is not set
6865 FAIL: Trip cir. AM Failure Trip Circuit
