2.30 Threshold supervision
185
7UM61 Manual
C53000-G1176-C127-3

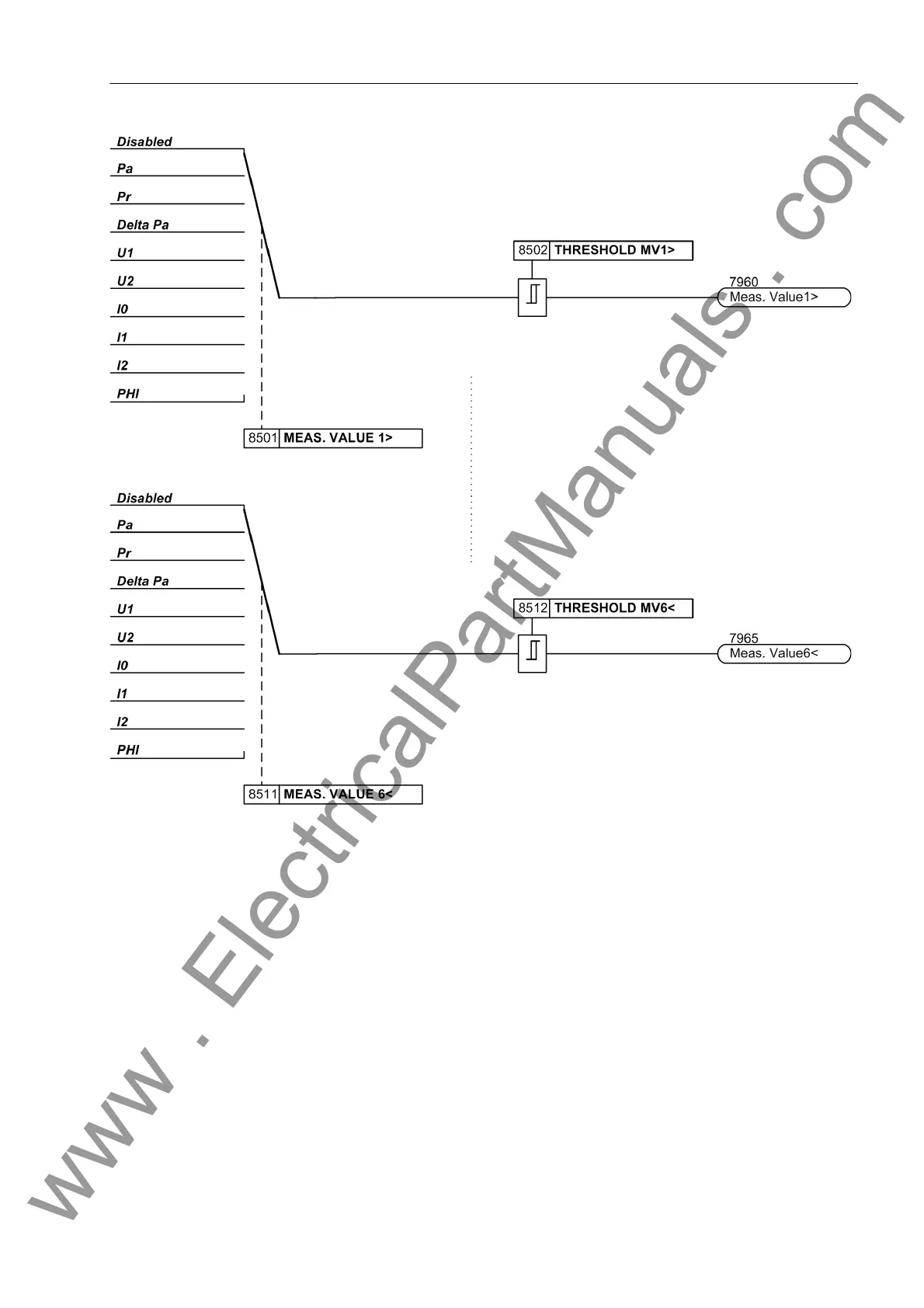

Figure 2-73 Logic of the Threshold Supervision
The figure shows that the measured values can be freely allocated to the threshold
supervision blocks. The dropout ratio for the MVx> stage is 0.95 or 1 %. Accordingly,
it is 1.05 or 1 % for the MVx< stage.
2.30.2 Setting Notes
General Threshold supervisions are only effective and available if addresses 185 THRESHOLD
are set to enabled on configuration.
Pickup Values The pickup values are set as percentages. Note the scaling factors listed in the Mea-
sured values table.
