Siemens Siprotec 7UM611 User Manual

A.3 Connection Examples
369
7UM61 Manual
C53000-G1176-C127-3

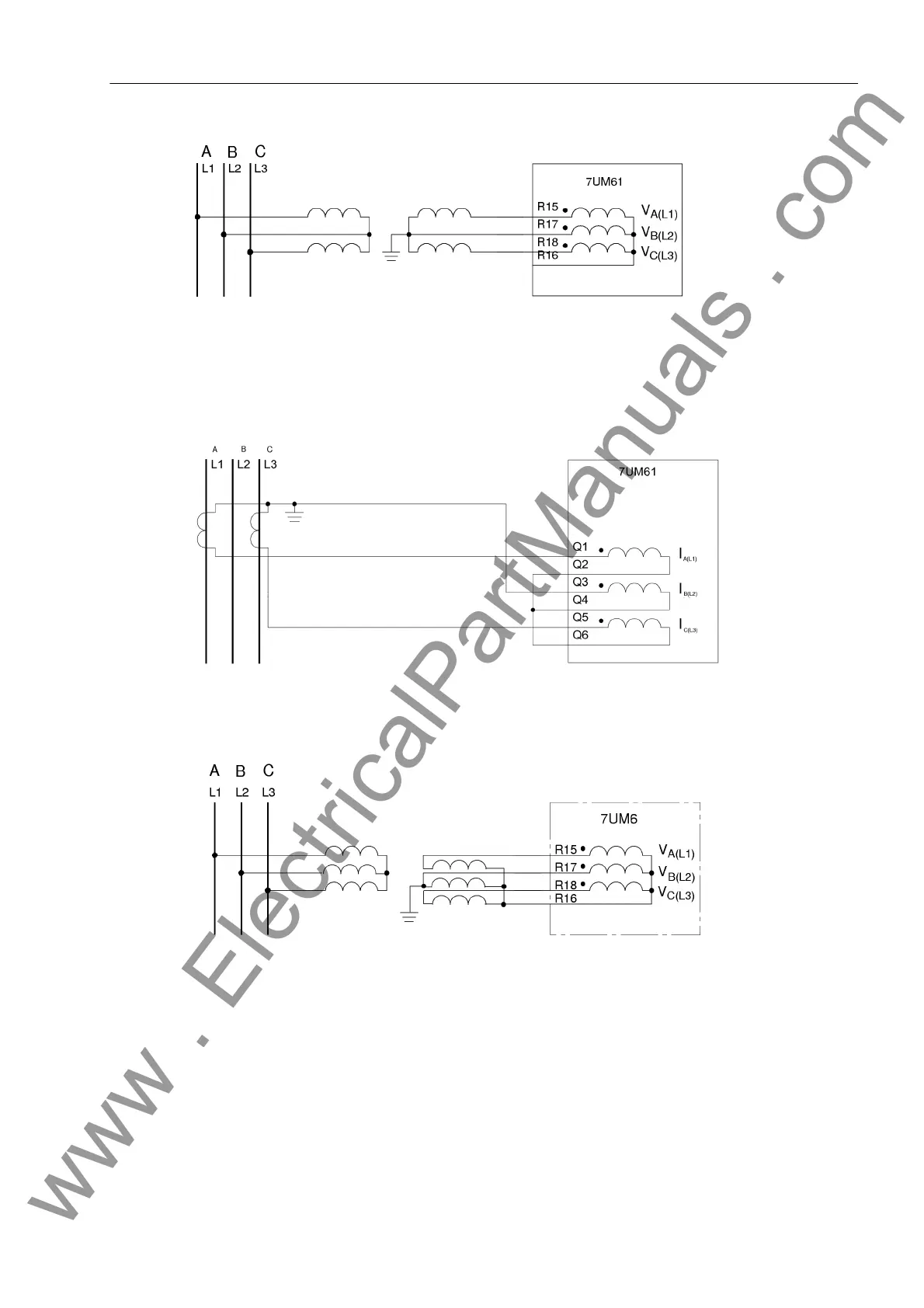

Figure A-13 Voltage Transformer Connections for Two Voltage Transformers in Open Delta Connection (V Connection)
Figure A-14 Current Transformer Connections with only Two System-Side Current Transformers
Figure A-15 Voltage Transformer Connection with L2 Earthed on the Secondary Side
