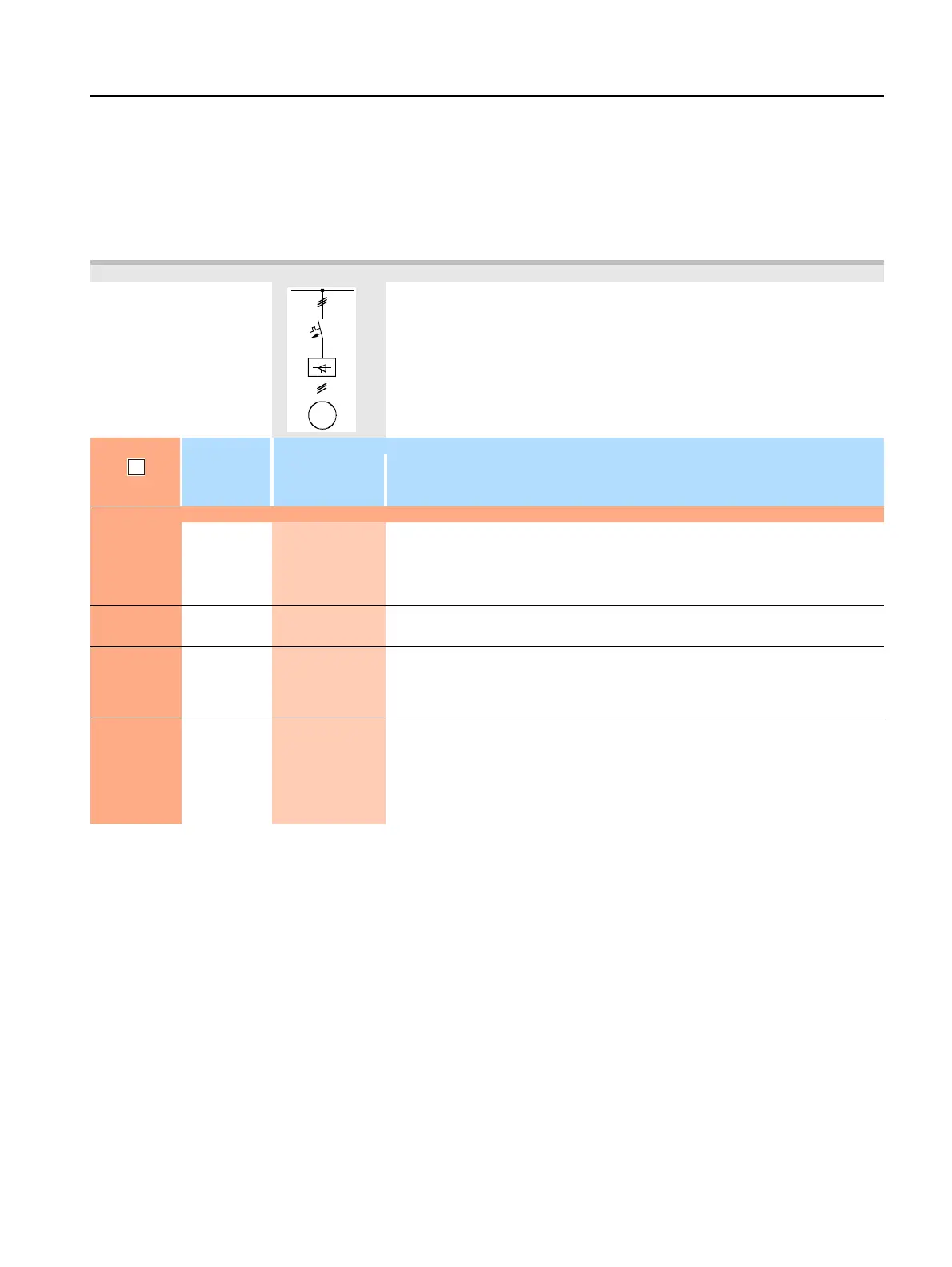

10.3.7 Branch Component Layout (Standard Circuit)
Fuse assignment
The utilization class according to which the motor branch with soft starter is
dimensioned depends on the requirements of the application. Normally, a fuseless
design (combination of circuit breaker + soft starter) is sufficient. If the requirements
for utilization class 2 must be met, semiconductor fuses must be used in the motor
branch.
1) The rated motor current must be taken into consideration during device selection.
2) For utilization class, see page 10-20.
Standard circuit fuseless design
Soft starters Circuit breaker
1)
Nominal current 440 V +10 % Rated current
Q11 Q1
Type A Type A
Utilization class 1
2
): 3RW44 22 ... 3RW44 27: I
q
= 32 kA; 3RW44 34 and 3RW44 35: I
q
= 16 kA; 3RW44 36 ... 3RW44 66: I
q
=65kA
3RW44 22 29 3RV10 42-4HA10 50
3RW44 23 36 3RV10 42-4JA10 63
3RW44 24 47 3RV10 42-4KA10 75
3RW44 25 57 3RV10 42-4LA10 90
3RW44 26 77 3RV10 42-4MA10 100
3RW44 27 93 3RV10 42-4MA10 100
3RW44 34 113 3VL17 16-2DD36 160
3RW44 35 134 3VL17 16-2DD36 160
3RW44 36 162 3VL37 25-2DC36 250
3RW44 43 203 3VL47 31-3DC36 315
3RW44 44 250 3VL47 31-3DC36 315
3RW44 45 313 3VL47 40-3DC36 400
3RW44 46 356 3VL47 40-3DC36 400
3RW44 47 432 3VL57 50-3DC36 500
3RW44 53 551 3VL67 80-3AB36 800
3RW44 54 615 3VL67 80-3AB36 800
3RW44 55 693 3VL67 80-3AB36 800
3RW44 56 780 3VL77 10-3AB36 1000
3RW44 57 880 3VL77 10-3AB36 1000
3RW44 58 970 3VL77 12-3AB36 1250
3RW44 65 1076 3VL77 12-3AB36 1250
3RW44 66 1214 3VL77 12-3AB36 1250
Q11
NSB0_01016a
M
3~
Q1
1
