Commissioning
SIRIUS 3RW44 manual
5-18 GWA 4NEB 535 2195-02 DS 06
"Direct on line
starting" starting
mode

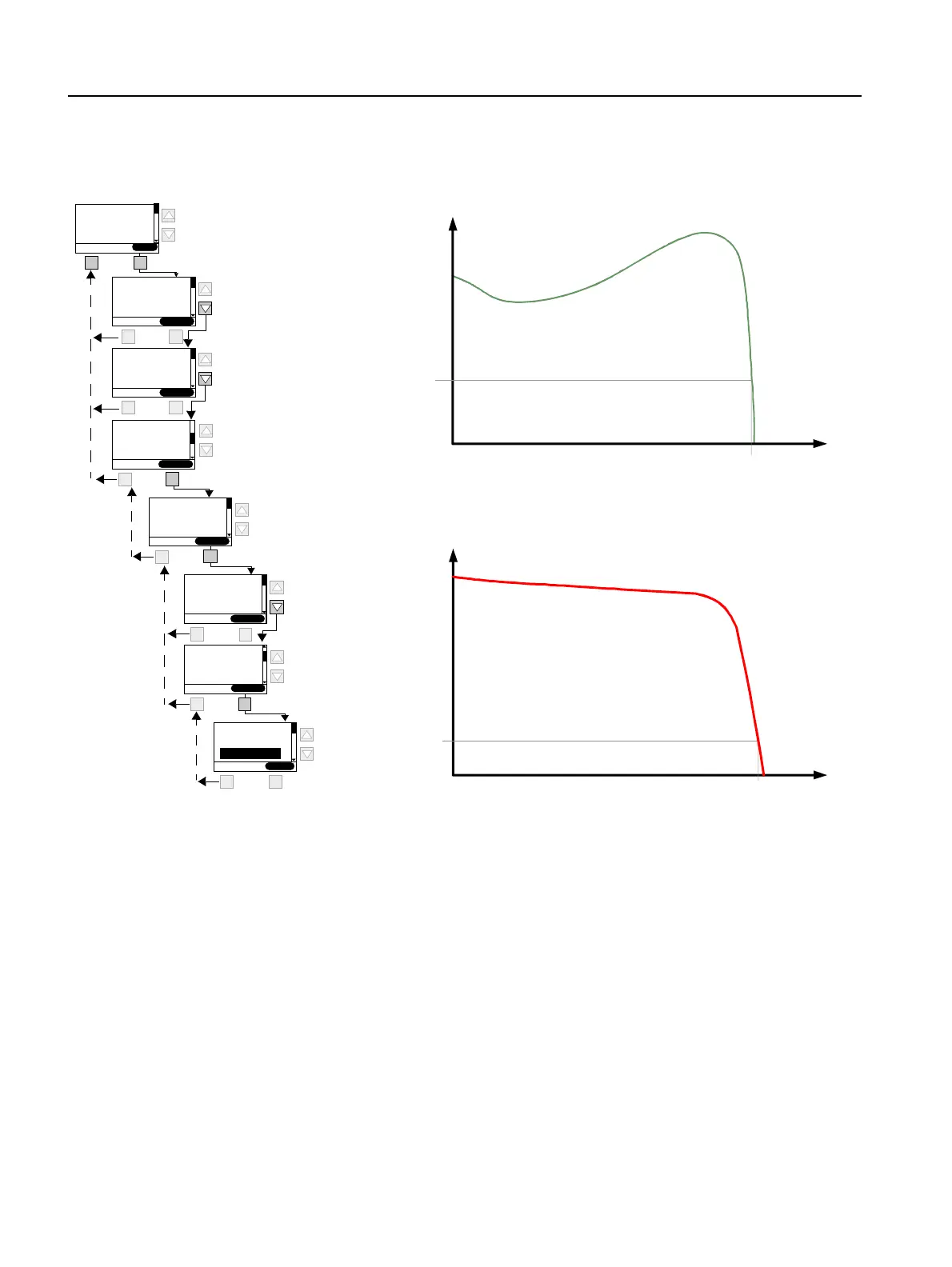

Figure 5-12:"Direct on line starting" starting mode
change
ESC
Starting mode
1
ESC
Starting
2
OK
settings
Direct on line
