Commissioning
SIRIUS 3RW44 manual
5-30 GWA 4NEB 535 2195-02 DS 06

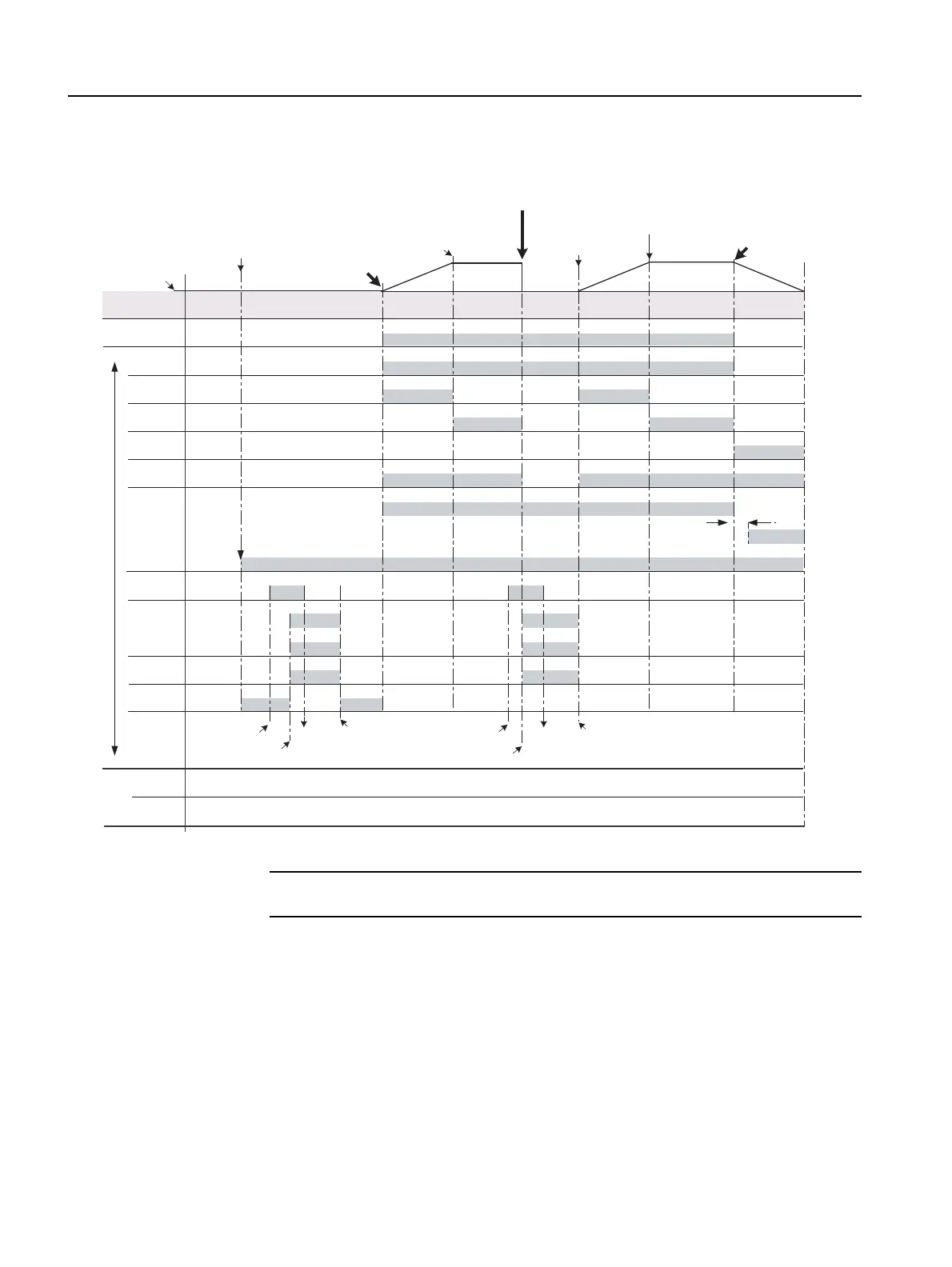

Status diagram of the outputs
1) Note
Possible group warnings / group faults see Chapter 7.1.2 "Warnings and Group Errors".
Approx. 1s
delay
IN1 - IN4
Start command
Run up
Bypass
Operation
Stopping
On-time
Power On
Group
warning
Group
error
Bus error
Device error
Soft starter has detected
run-up
Control voltage at
terminal A1/A2
DC Braking
Warning pending
Error reset
command
Error occurs
Warning /
error
disappears
PA A 1
PA A 2
Soft starter has
detected run-up
Warning pending Error-reset command
Error occurs
Warning /
error
disappears
Function output
Input 1-
input 4
Ramp process of the
soft starter
Automatic restart
when reset
Group error, bus error or device error occurs;
soft starter switches off and goes into error mode
Stop command
Both of these output functions
can be directly controlled via
the optional Profibus.
Command
motor-on
Ready to start
Start command
1)
1)
