Line connection and line-side power components
3.8 Line reactors
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
105

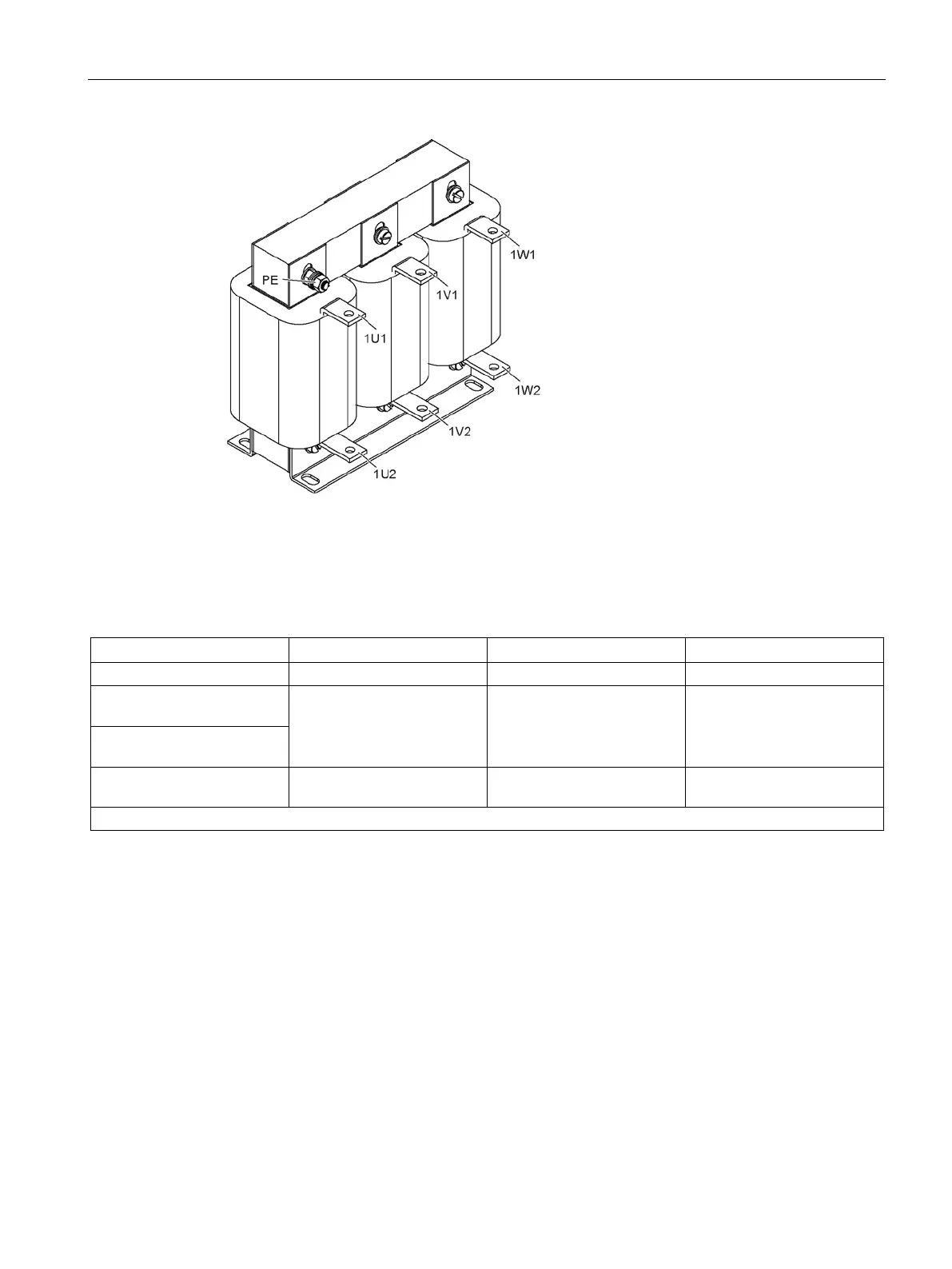

Figure 3-41 Interface overview, line reactor for Basic Line Modules (100 kW)
Table 3- 17 Line and load connection line reactors for Basic Line Modules
Line supply connection
Screw terminals
10 mm
2
;
1.5 ... 1.8 Nm
Screw terminals
35 mm
2
;
5 ... 6 Nm
Copper busbars with 8.5 mm
diameter holes
Load connection
PE connection Screw M4
2 Nm
Terminal studs M6
1)
6 Nm
Terminal studs M8
1)
12 Nm
1)
For ring cable lugs without insulation (Page 732)
