DC link components
8.3 Braking Module Booksize Compact
Booksize Power Units
512 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
Mounting
Mounting a Braking Module Booksize Compact with internal air cooling
M6 x 16 screw
Hex combination screw or hex screw with spring washer and plain washer

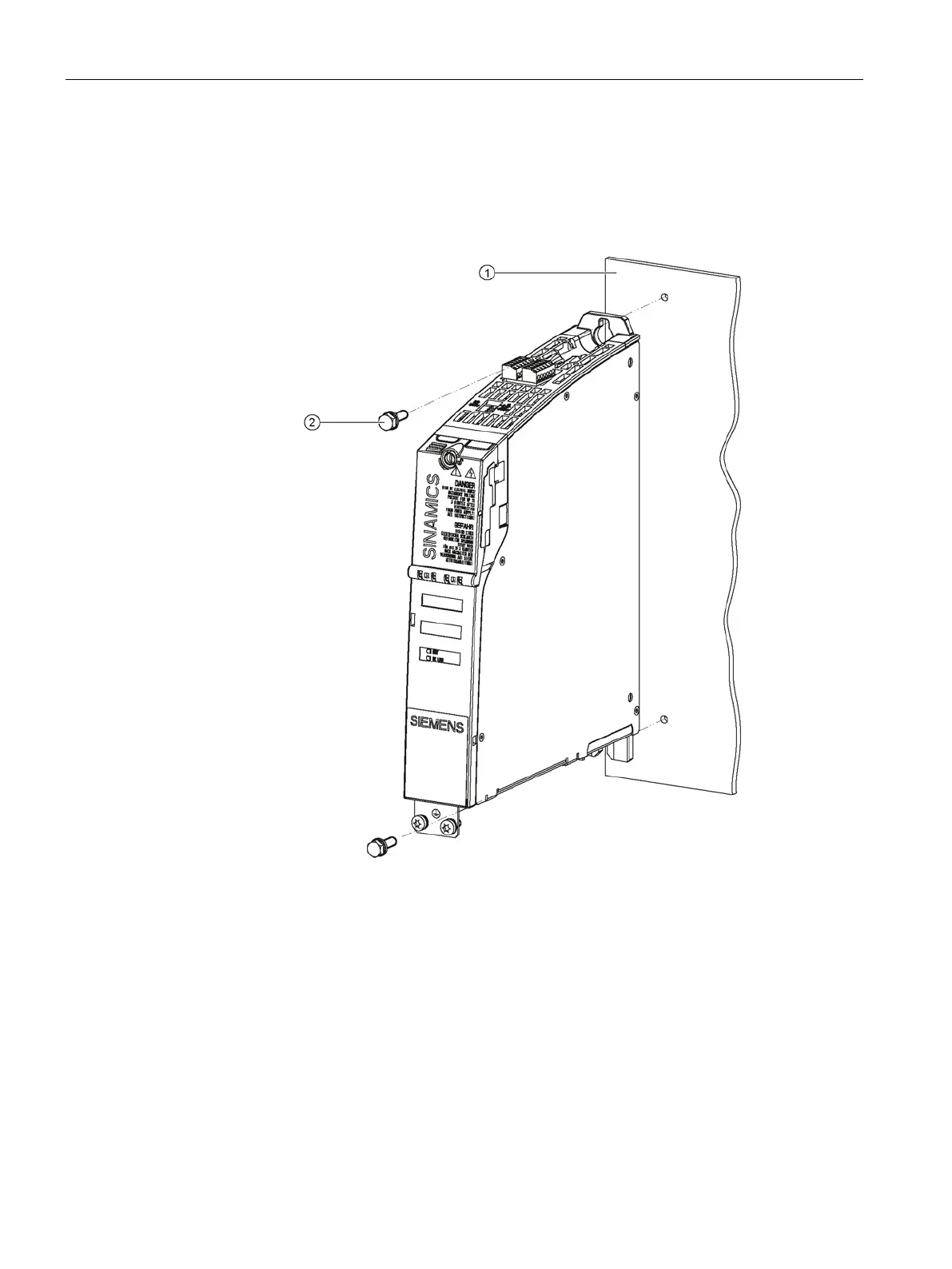

Figure 8-10 Mounting a Braking Module Booksize Compact with internal air cooling
:
1. Firstly, tighten the nuts by hand.
Tightening torque: 0.5 Nm
2. Then tighten the nuts.
Tightening torque: 6 Nm
