Line connection and line-side power components
3.8 Line reactors
Booksize Power Units
106 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
3.8.5.2
Dimension drawings

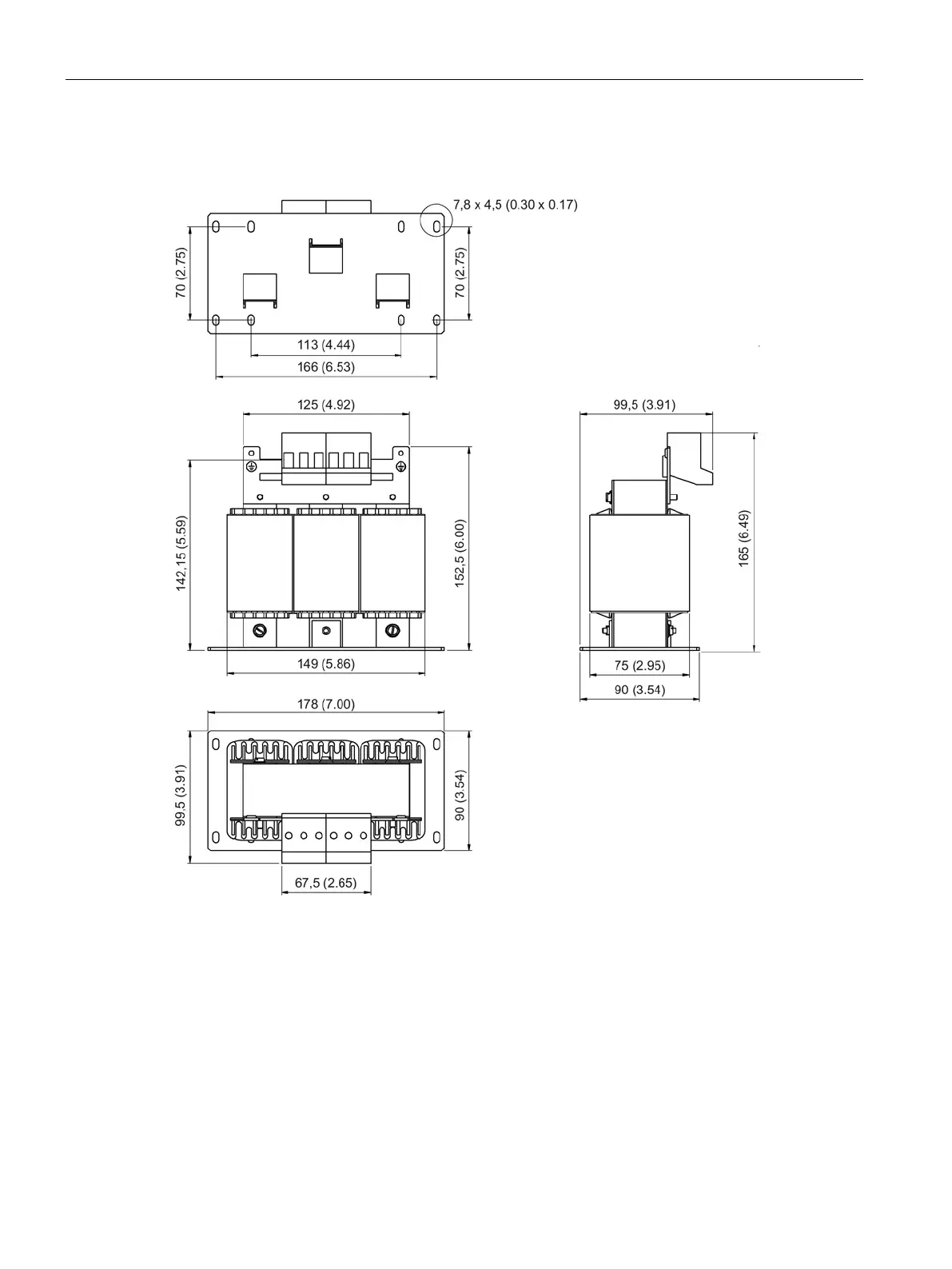

Figure 3-42 Dimension drawing of line reactor for Basic Line Module 20 kW, all dimensions in mm and (inches)
