4.4 Active Line Modules with external air cooling
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
175
4.4.2.2
X1 line connection

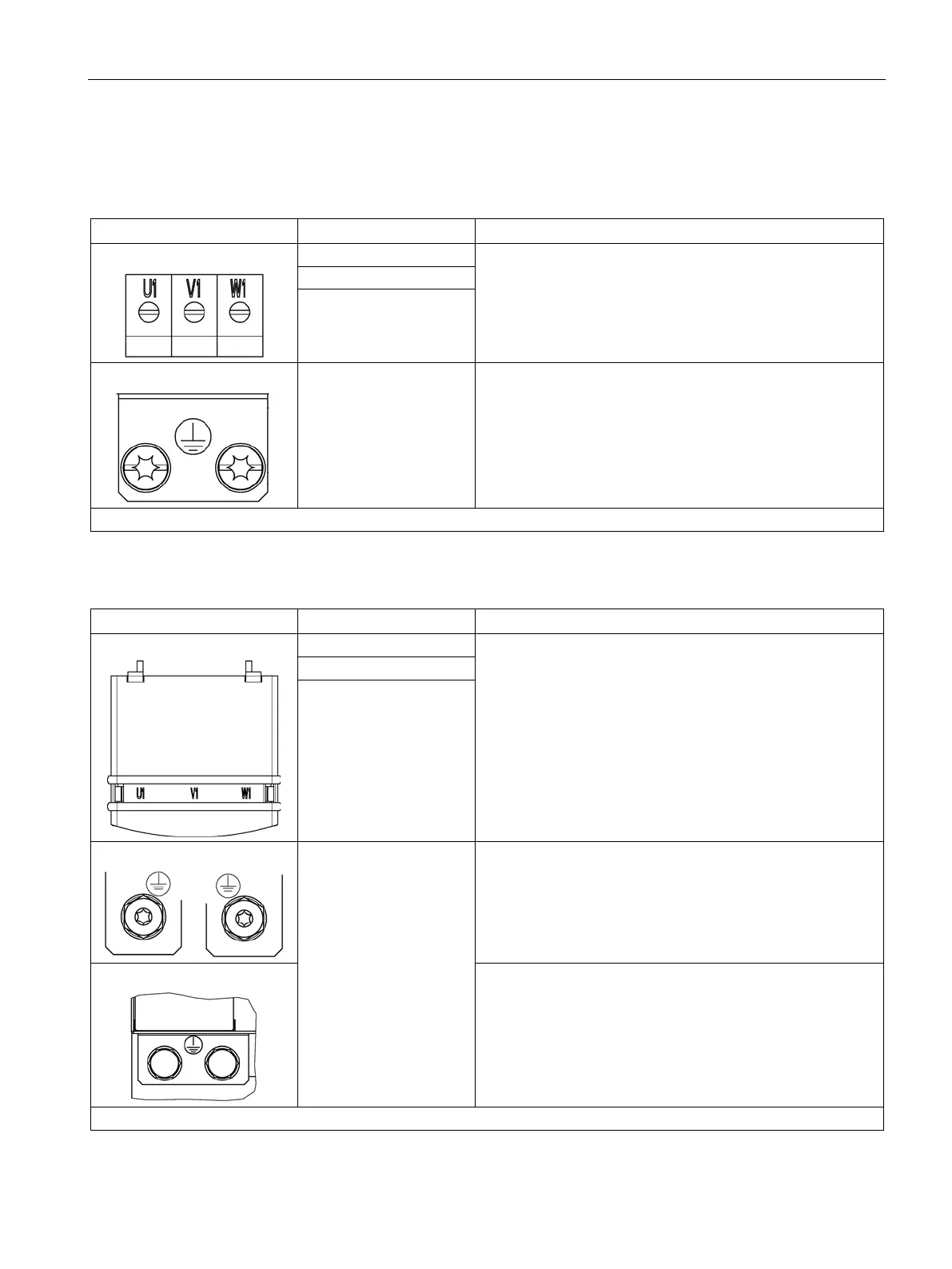

Table 4- 12 X1: Line connection for Active Line Modules 16 kW
Terminal
Technical data
U1
Type: Screw terminal 6 (Page 730)
V1
W1
PE connection Threaded hole M5 / 3 Nm
1)
1)
For ring cable lugs without insulation (Page 732)
Table 4- 13 X1: Line supply connection for Active Line Modules 36 kW to 120 kW
Terminal
Technical data
U1
Supply voltage:
380 … 480 V 3 AC, 50/60 Hz
36 kW:
Threaded bolts M6 / 6 Nm
1)
55 kW, 80 kW and 120 kW:
Threaded bolts M8 / 13 Nm
1)
V1
W1
PE connection
36 kW and 55 kW:
Threaded hole M6 / 6 Nm
1)
80 kW and 120 kW:
Threaded hole M8 / 13 Nm
1)
1)
For ring cable lugs without insulation (Page 732)
