Cabinet design and EMC Booksize
12.7 Connection systems
Booksize Power Units
706 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
DRIVE-CLiQ signal cables MOTION-CONNECT with RJ45 connectors
The MOTION-CONNECT DRIVE-CLiQ signal cables with RJ45 plugs have 24 V cores. They
are used for components with DRIVE-CLiQ connection if higher requirements must be
complied with, such as mechanical stress and resistance to oil. For example, the signal
cables are used for connections outside the control cabinet:
● Connections between Motor Modules and Sensor Modules
● Connections between Motor Modules and motors with DRIVE-CLiQ interface
The maximum length of the DRIVE-CLiQ MOTION-CONNECT signal cables with RJ45 plugs
is:
● 100 m for MOTION-CONNECT 500 cables
● 75 m for MOTION-CONNECT 800PLUS cables
The signal cables are available in degrees of protection IP20 and IP67.
Note
DRIVE-CLiQ cabinet bushing for RJ45 connectors
For information on the cabinet bushings, see Chapter
DRIVE-CLiQ cabinet bushings
652).
DRIVE-CLiQ signal cables MOTION-CONNECT with RJ45 plug and M12 socket
The MOTION-CONNECT DRIVE-CLiQ signal cables with RJ45 plug and M12 socket have
24 VDC cores. They establish the connection between components with a DRIVE-CLiQ
connection and a direct measuring system equipped with DRIVE-CLiQ ASIC with 8-pin M12
connector. Measuring systems from third-party manufacturers can be directly connected to
the SINAMICS S120.
The pre-assembled basic cable has eight cores, of which four are used for data transmission
and two for the 24 V supply. It is used to convert from a RJ45 plug (IP20) to an M12 socket
(IP67).

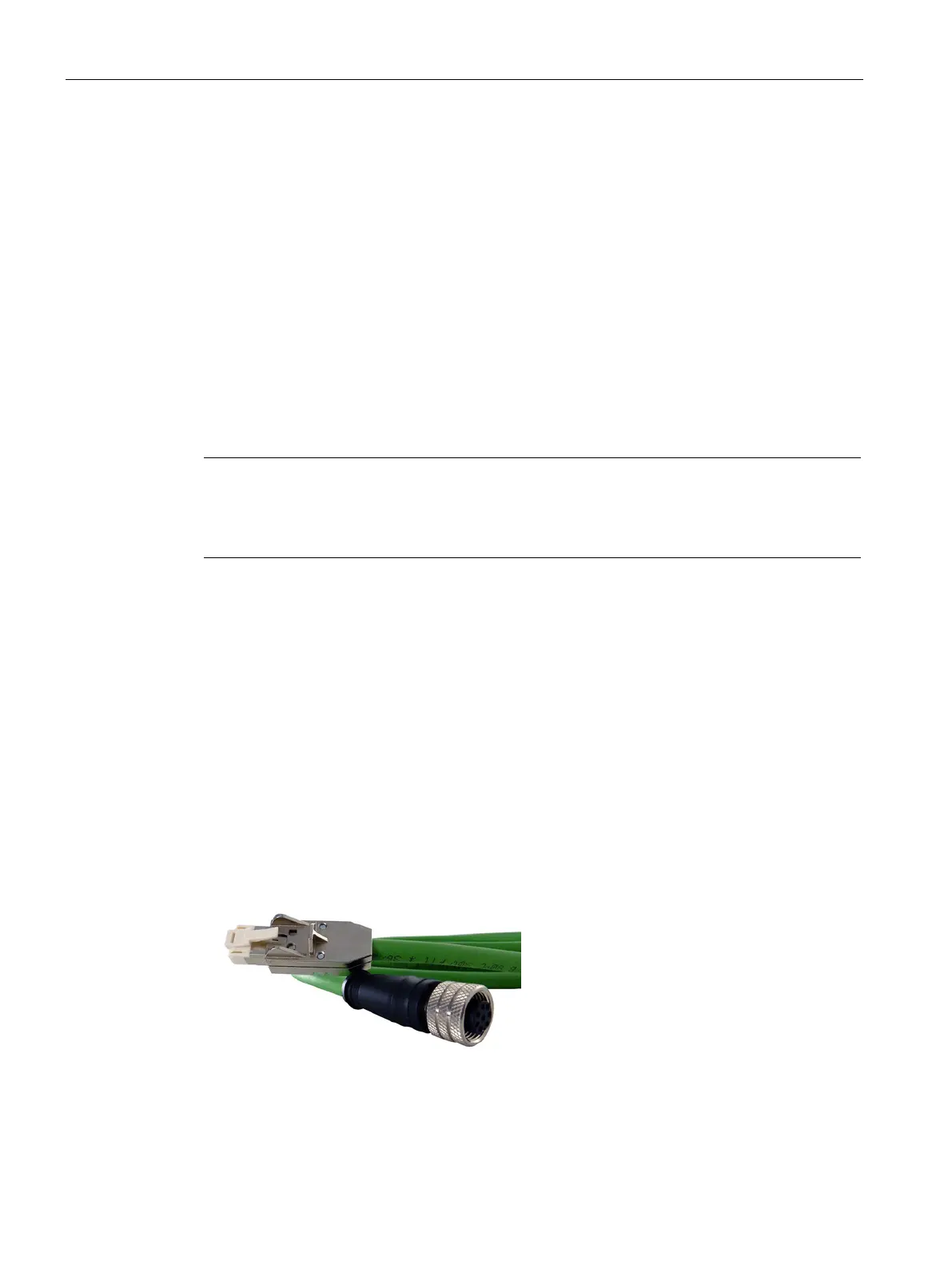

Figure 12-25 DRIVE-CLiQ basic cable with RJ45 plug and M12 socket
