Line Modules Booksize
4.11 Smart Line Modules with cold plate
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
319
4.11.5
Connection example

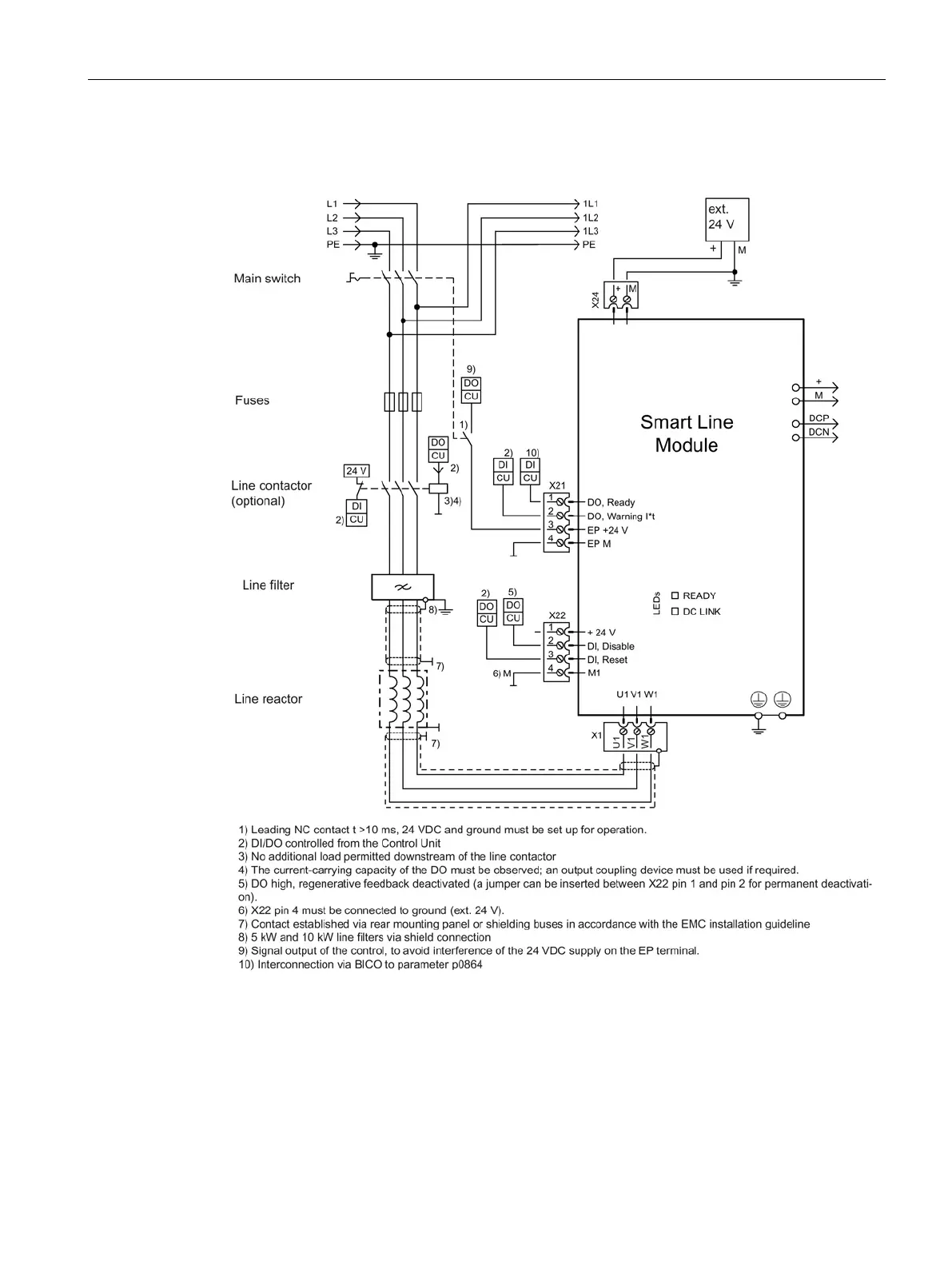

Figure 4-90 Connection example for 5 kW and 10 kW Smart Line Modules
