Braking resistors
9.3 Dimension drawings
Booksize Power Units
552 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
9.3
Dimension drawings
Braking resistors without a thermostatic switch

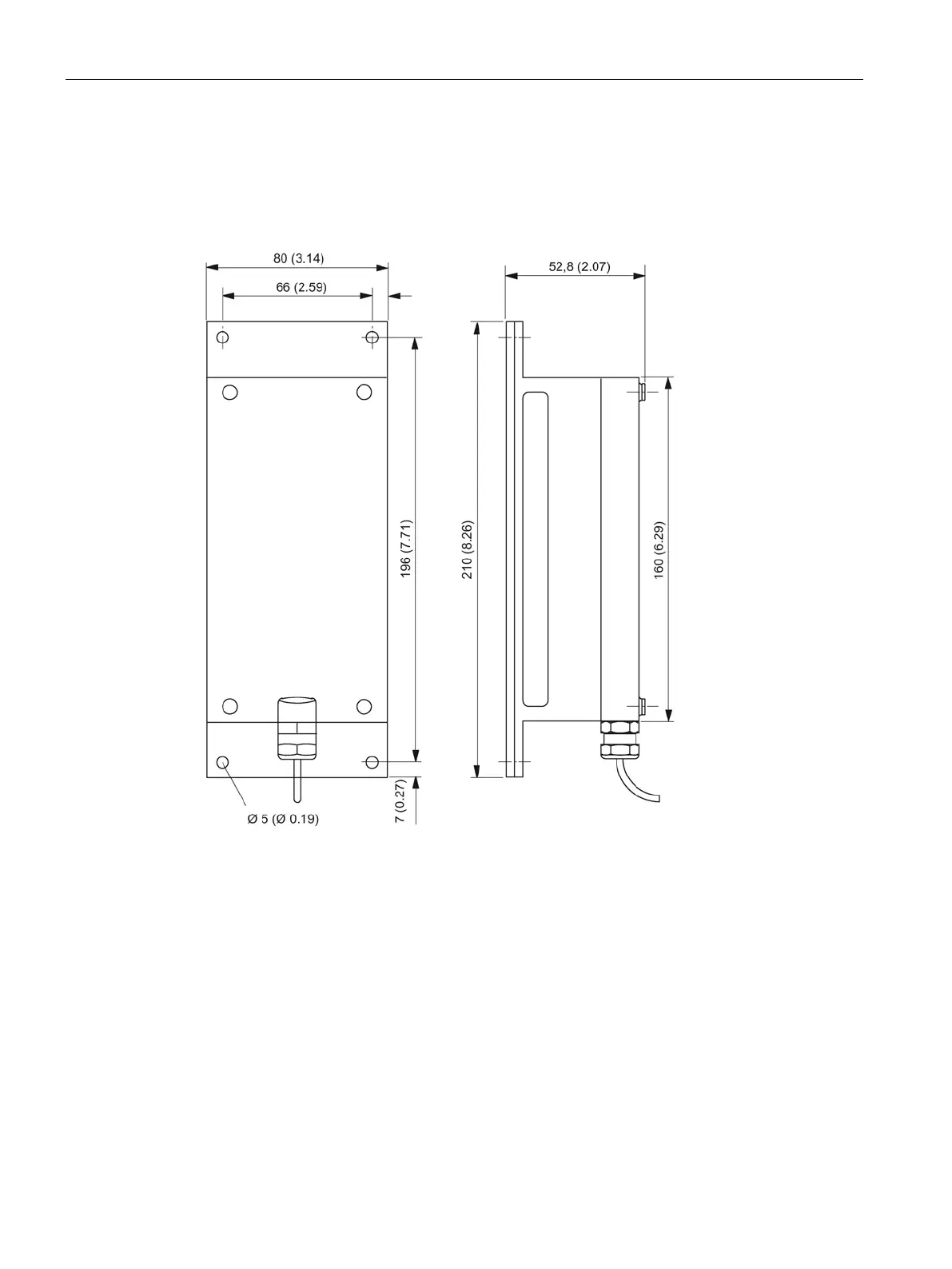

Figure 9-1 Dimension drawing of braking resistor 6SN1113-1AA00-0DA0 where
P
n
/P
max
= 0.3 kW/25 kW, all dimensions in mm and (inches)
