Accessories
11.5 DC link adapter
Booksize Power Units
648 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
11.5.6
Electrical connection
11.5.6.1
Preparing the cables
1. Prepare the DC link connecting cables as shown below.
2. Only use shielded cables with insulated end sleeves.
â‘
Protective braided shield folded back and fixed using shrink-on sleeve
â‘¡
Insulated end sleeve

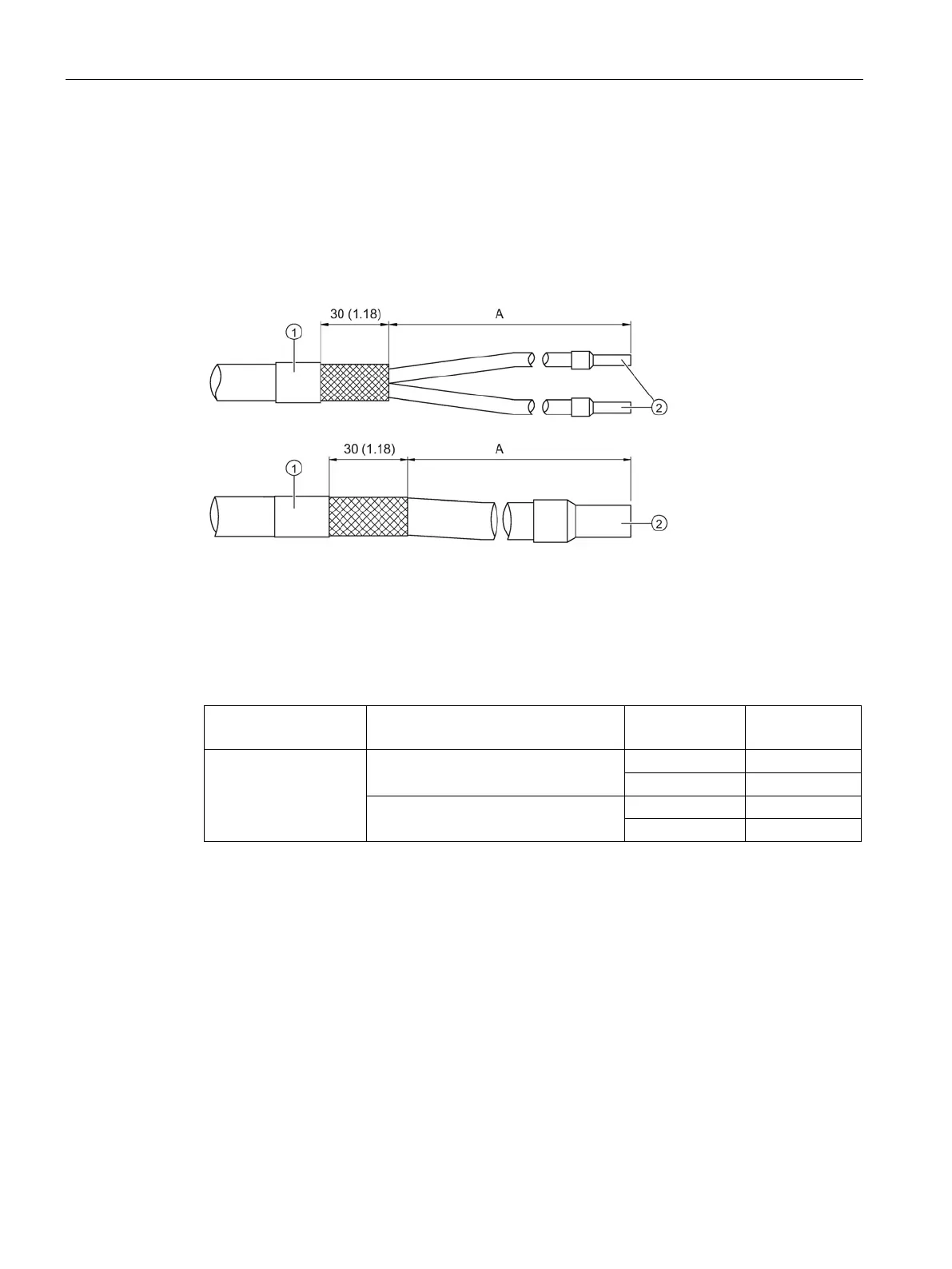

Figure 11-29 Single-core and two-core DC link connecting cable with insulated end sleeves, all
dimensions in mm and (inch)
Refer to the table below for dimension A:
Conductor cross-
section [mm
2
]
Mounting location of the DC link
adapter at the drive line-up
Connection
A [mm]
50 / 70 / 95 Left
DCP
70
DCN
60
Right DCP 60
DCN
70
