Accessories
11.1 Shield connecting plates for power supply and motor cables
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
611
11.1.4.5
Active Interface Modules

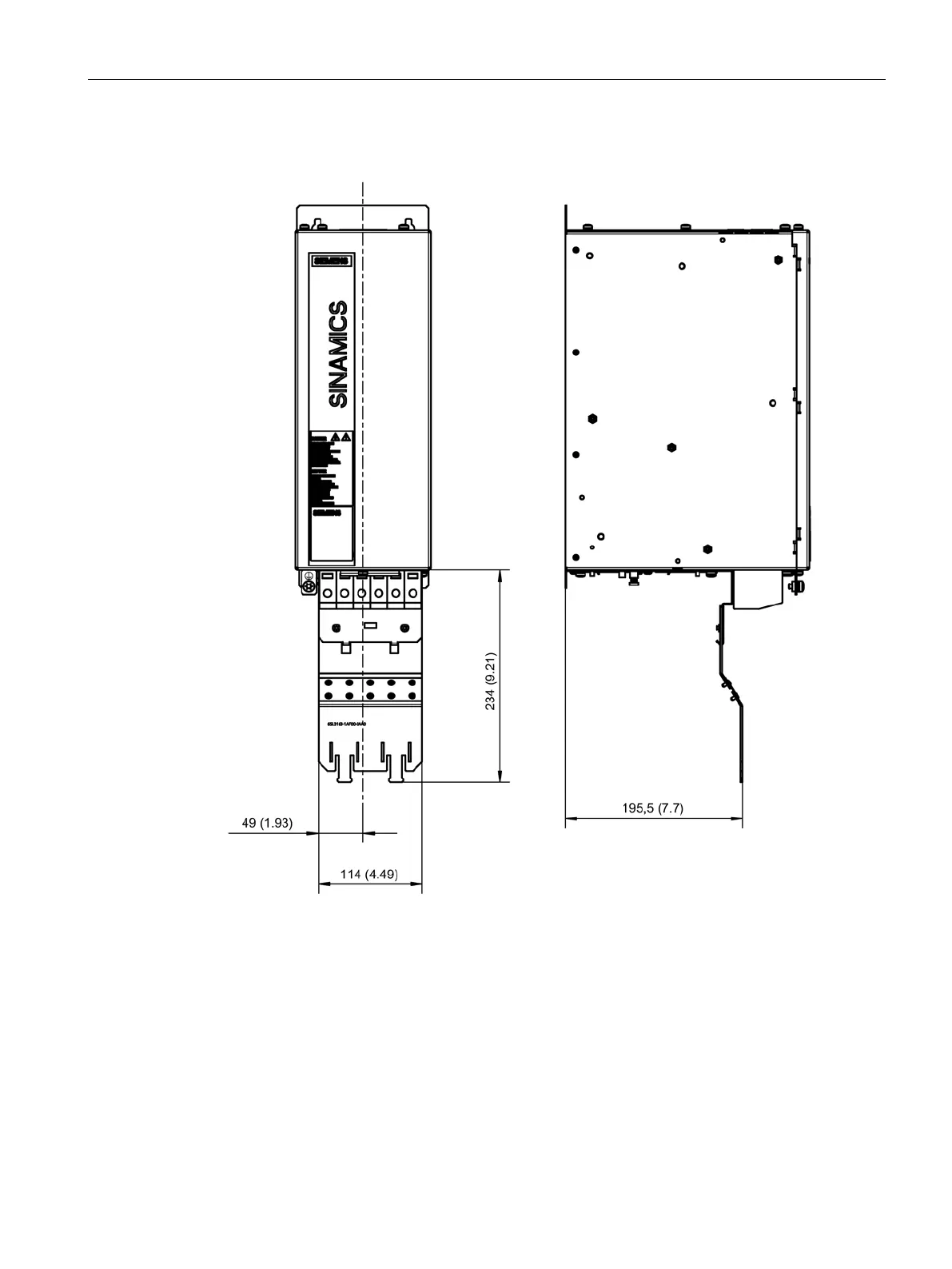

Figure 11-18 Dimension drawing of shield connecting plate on the 36 kW Active Interface Module,
all dimensions in mm and (inches)
