Line Modules Booksize
4.4 Active Line Modules with external air cooling
Booksize Power Units
174 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
4.4.2
Interface description
4.4.2.1
Overview

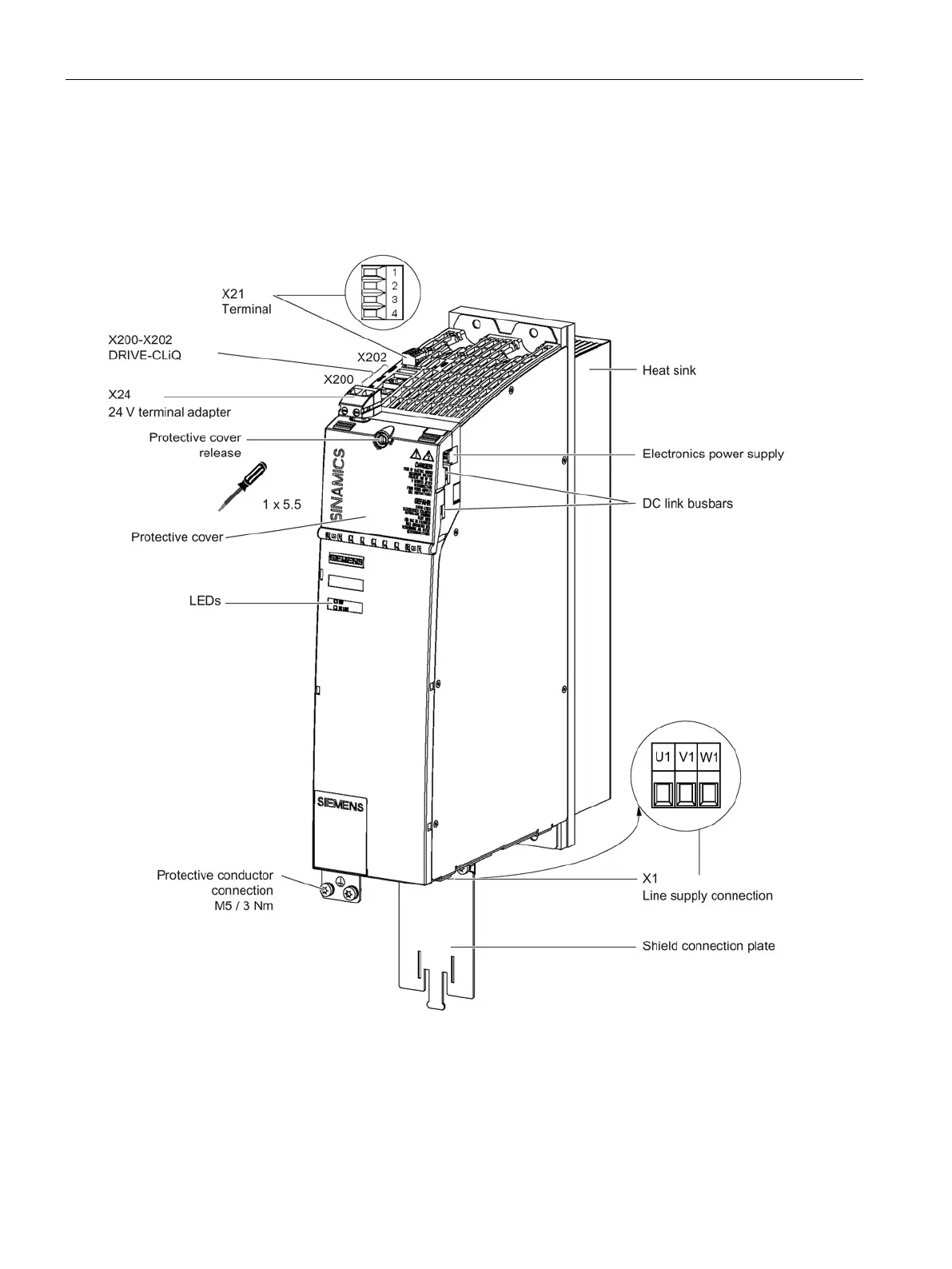

Figure 4-12 Interface overview, Active Line Module with external air cooling (example: 16 kW)
