Siemens SIROTEC User Manual

Line Modules Booksize
4.8 Basic Line Modules with cold plate
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
243
4.8.2.2
X1 line connection

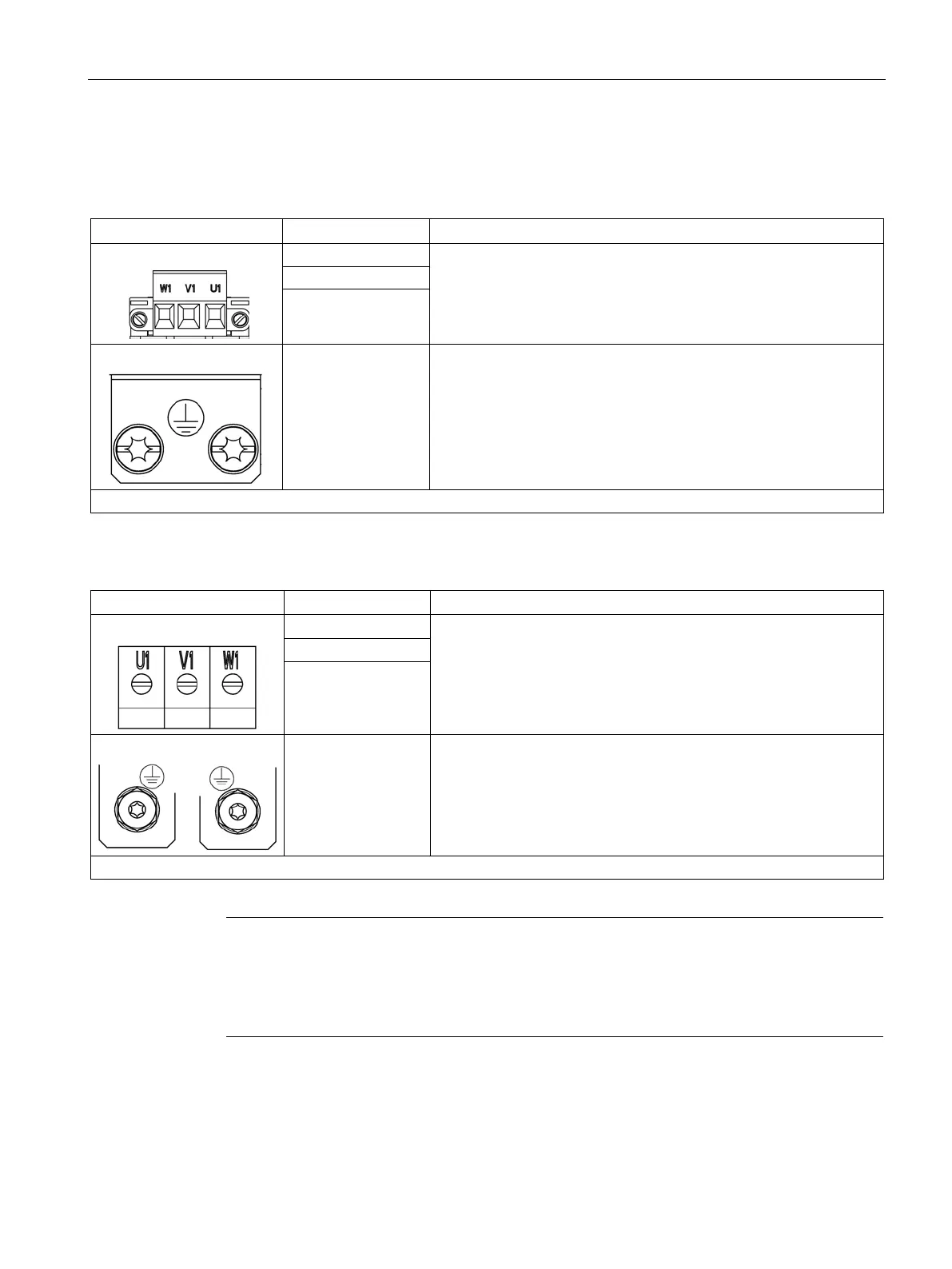

Table 4- 51 X1: Line supply connection for Basic Line Modules 20 kW
Terminal
Technical data
U1
Supply voltage:
3 AC 380 … 480 V, 50 / 60 Hz
Type: Screw terminal 7 (Page 730)
V1
W1
PE connection Threaded hole M5 / 3 Nm
1
1)
For ring cable lugs without insulation (Page 732)
Table 4- 52 X1: Line supply connection for Basic Line Modules 40 kW
Terminal
Technical data
U1
Supply voltage:
3 AC 380 … 480 V, 50 / 60 Hz
Max. connectable cross-section, 50 mm², end sleeves
Tightening torque, min. 6 Nm
V1
W1
PE connection Threaded hole M6 / 6 Nm
1)
1)
For ring cable lugs without insulation (Page 732)
Note
Compliance with IPXXB degree of protection for Basic Line Modules 40 kW
Degree of protection IPXXB according to EN
60529 for the Basic Line Module 40 kW is only
obtained when power cables with insulated end sleeves and cross
-sections > 25 mm
2
are
used.
