Cabinet design and EMC Booksize
12.12 Power losses of the components
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
765
Maximum power losses in the partial load range
Losses in the partial load range for Line Modules and Motor Modules

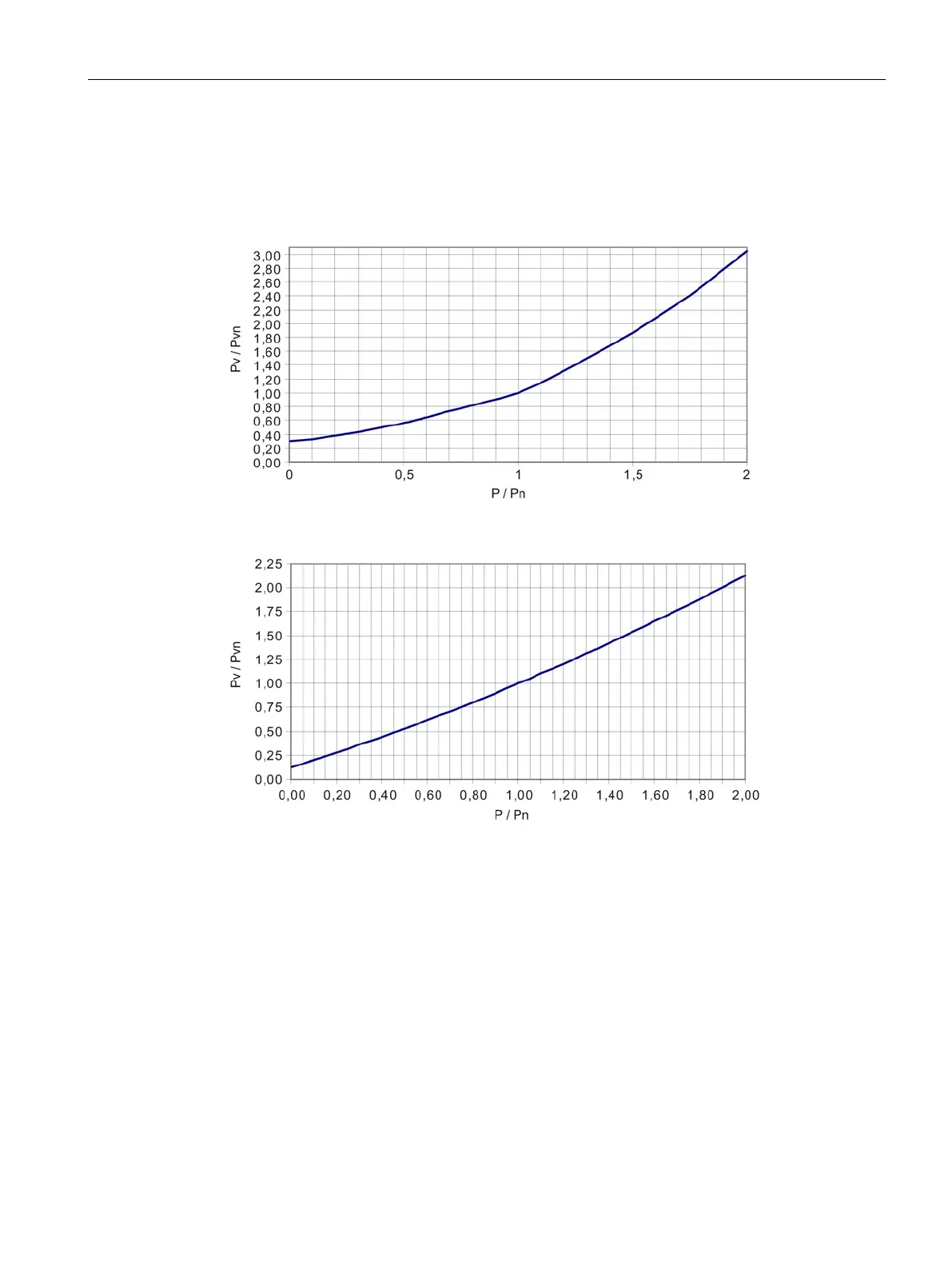

Figure 12-50 Losses in the partial load range for Active Line Modules and Smart Line Modules
Figure 12-51 Losses in the partial load range for Basic Line Modules
