14.1 Replacing the fan
Booksize Power Units
788 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
Replacing the fan for components with internal and external air cooling
Replacing the fan for components, sizes 50 to 200 mm

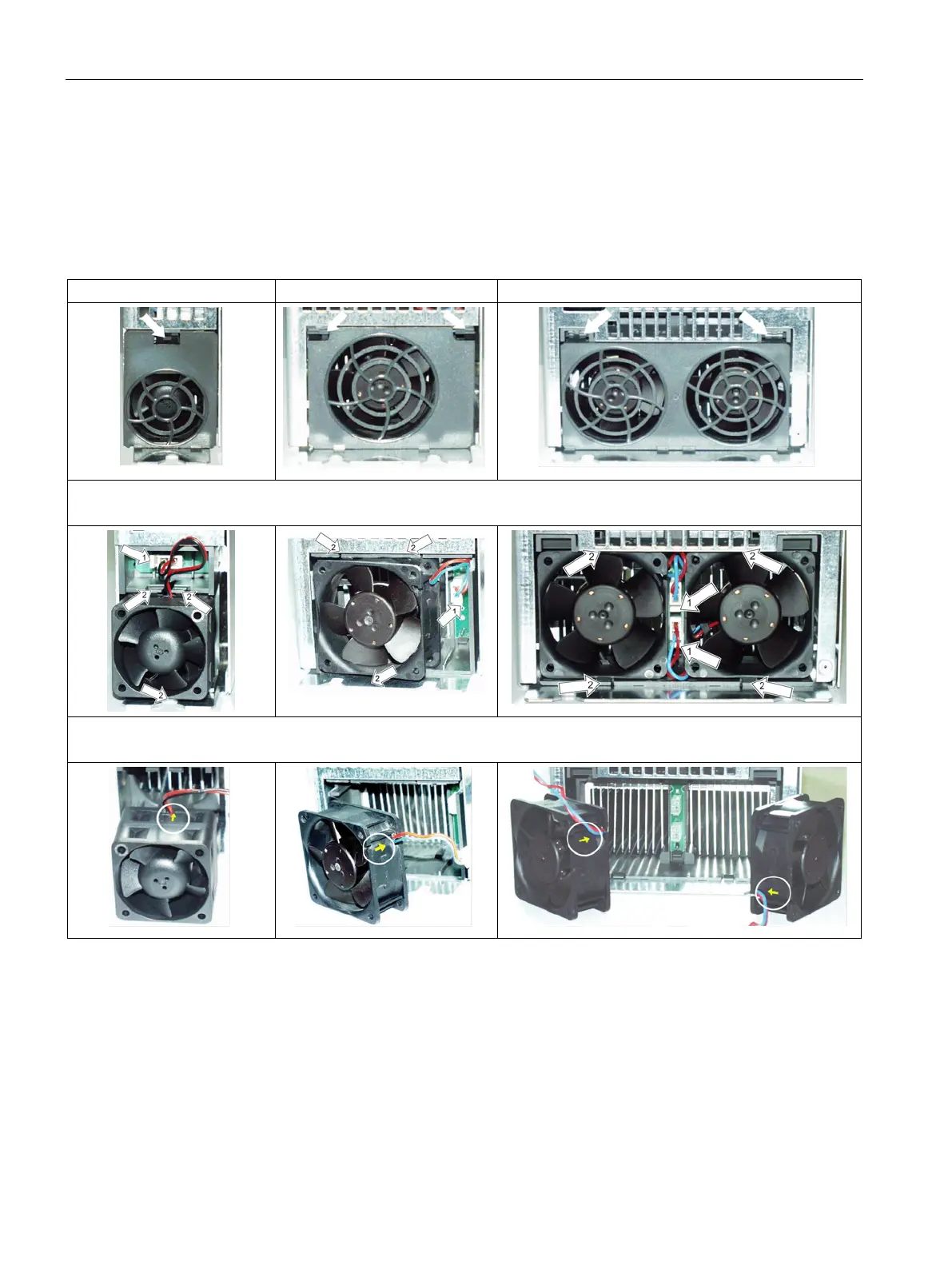

Table 14- 1 Removing the fan
1. Remove the module from the drive line-up.
2. Release the catches to open the fan cover.
3. Release and withdraw the connector (1).
4. Release the catch (2) and remove the fan.
