Siemens SIROTEC User Manual

Accessories
11.4 DC link rectifier adapter for Booksize format
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
629
11.4.3
Interface description
11.4.3.1
Overview
①
DC link rectifier adapter (35 to 95 mm
2
) on a 150 mm component
②
DC link rectifier adapter (0.5 to 10 mm
2
) on a 100 mm component

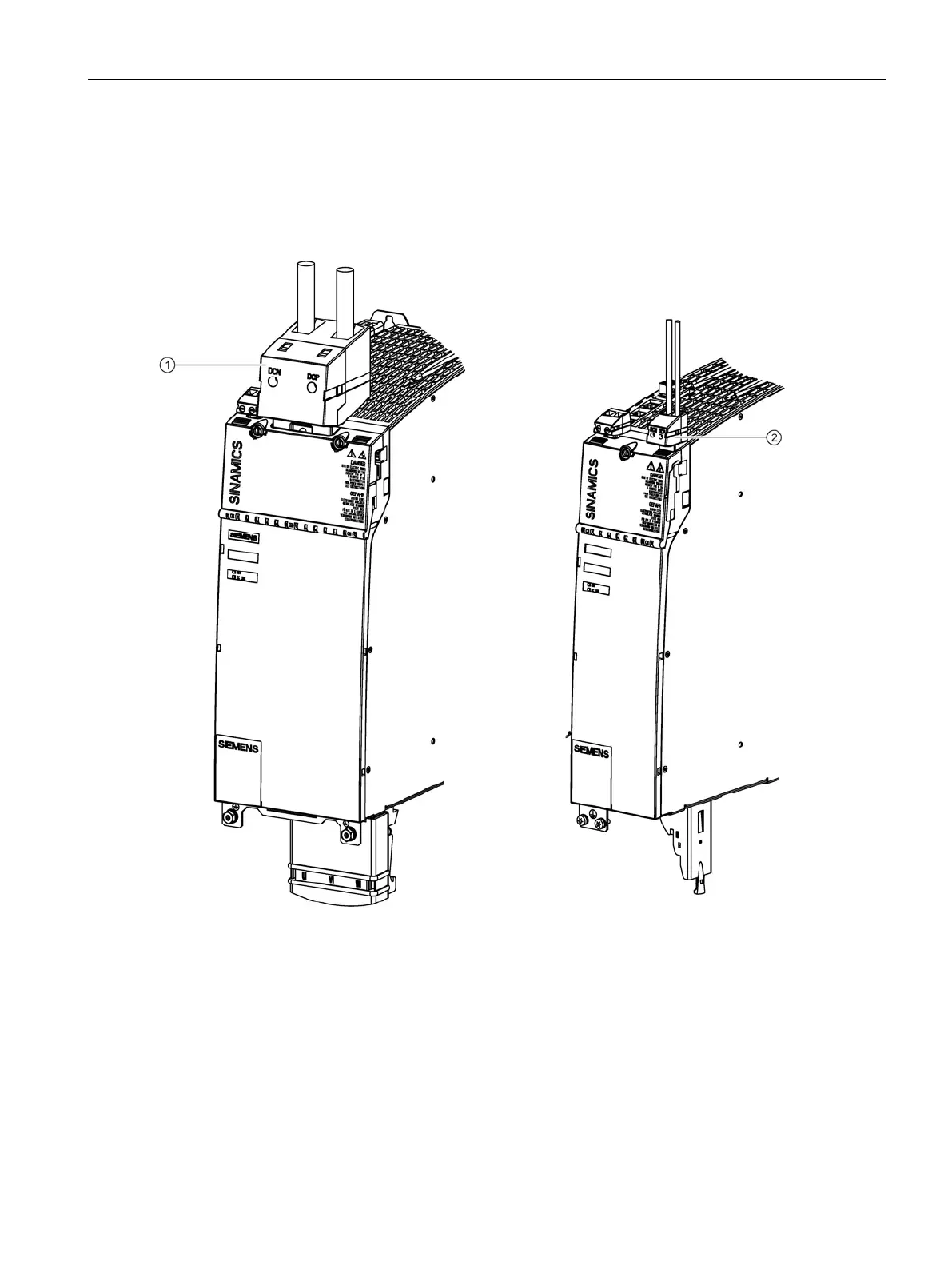

Figure 11-23 Installed DC link rectifier adapter, using the example of components with a width of 100 mm and 150 mm
