Accessories
11.1 Shield connecting plates for power supply and motor cables
Booksize Power Units
610 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
Line Modules and Motor Modules, Liquid Cooled

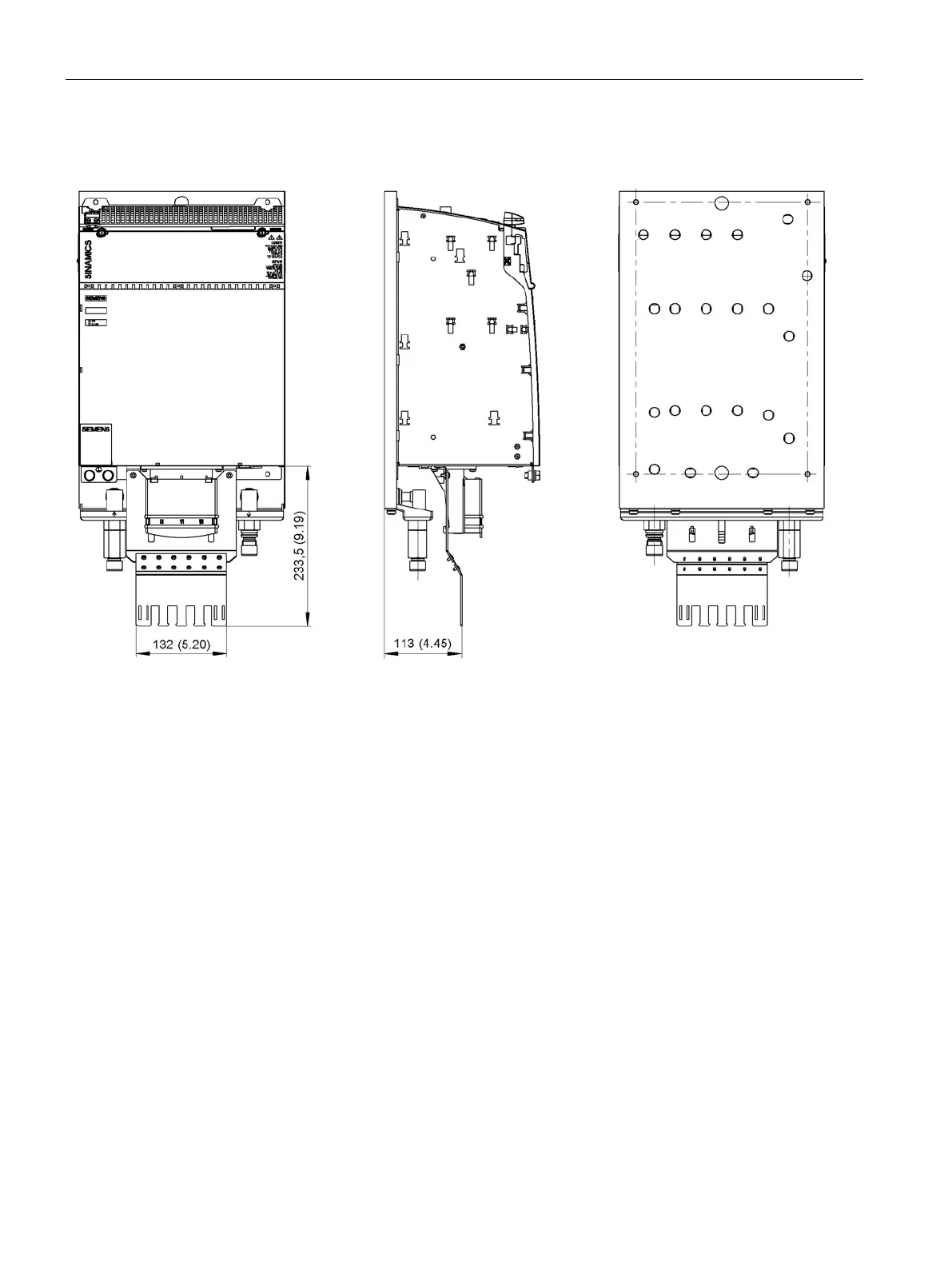

Figure 11-17 Dimension drawing of shield connecting plate on a 300 mm Liquid Cooled component, all dimensions in
mm and (inches)
